Tractor · 2002Unverified

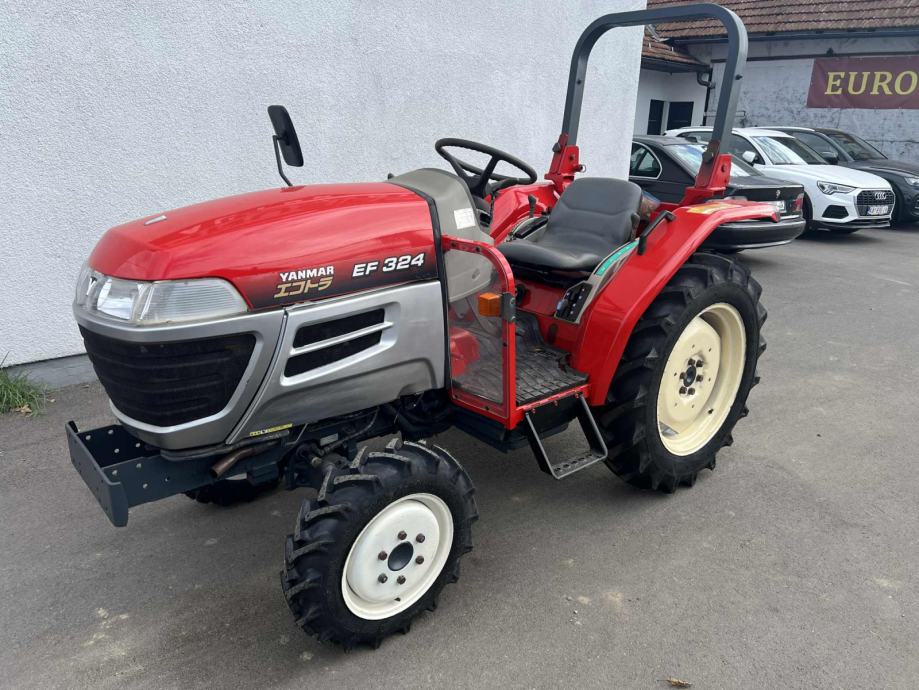

Yanmar EF324
Yanmar EF324 — EF300 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
2756 to 3153 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Variants
EF324QCabReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine17.7 kWReference
Yanmar 3TNV84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power17.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears in four ranges, with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1399 kgReference
Rear PTO540 (1.375)Reference
Engine RPM568@2500Reference
Engine RPM784@2500Reference
Engine RPM991@2500Reference
Engine RPM1296@2500Reference
Engine RPM-623@2500Reference
Dimensions
ROPS Wheelbase153 cmReference
Cab Wheelbase161 cmReference
Weight2756 to 3153 poundsReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
ROPS Length288 cmReference
Cab Length298 cmReference
ROPS Width135 cmReference
Cab Width138 cmReference
Height (ROPS)198 cmReference
Height (cab)199 cmReference
ROPS Weight1250 kgReference
Cab Weight1430 kgReference
Ground clearance33 cmReference
Front tread100 cmReference
Rear tread98/110 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 5% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
