Tractor · 2005Unverified

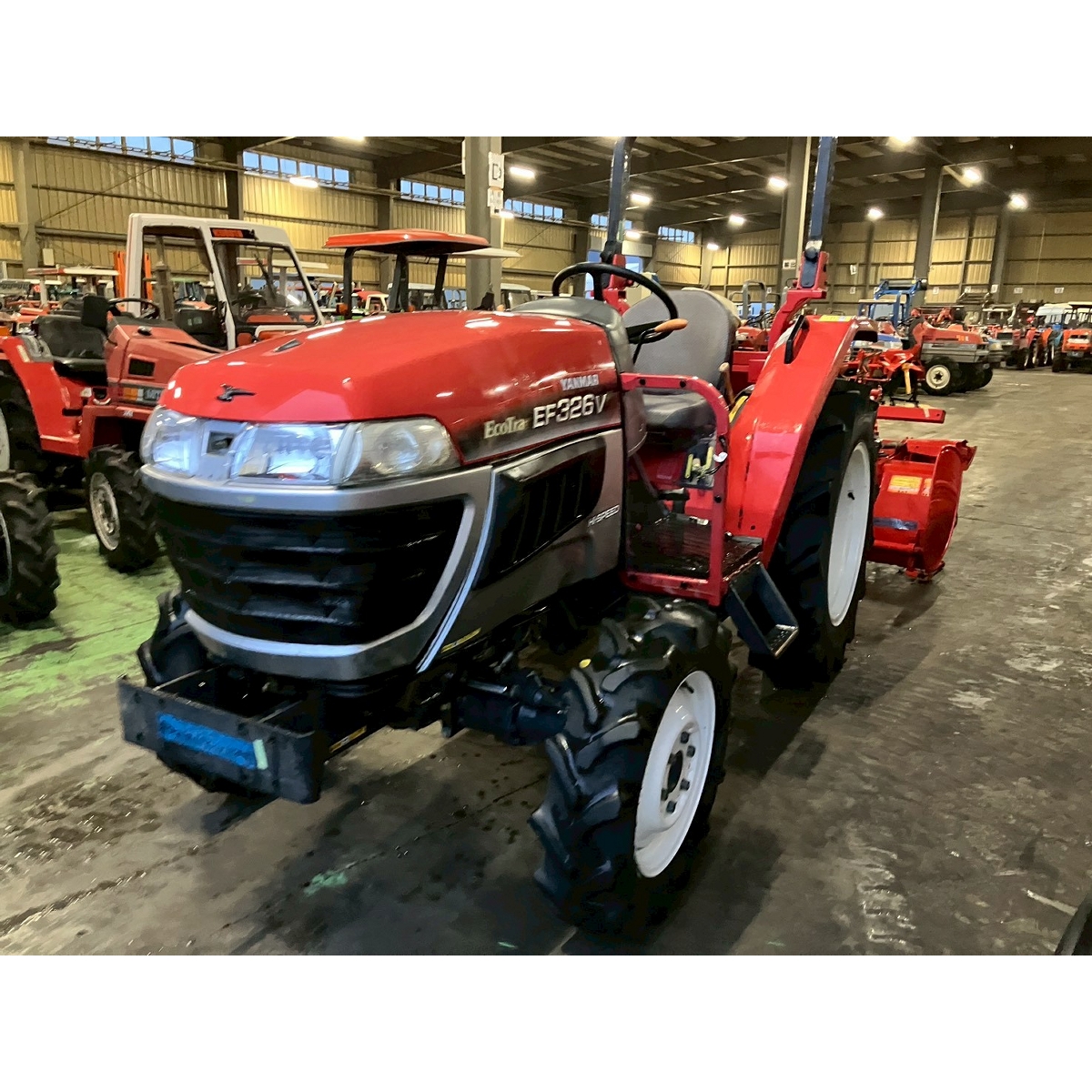

Yanmar EF326V
Yanmar EF326V — EF300V Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
2954 to 3351 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Variants
EF326VROPSReference
EF326VQCabReference
EF326VJROPS high-speedReference
EF326VJQCab high-speedReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine19.1 kWReference
Yanmar 3TNV84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power19.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears in four ranges, with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1500 kgReference
Rear PTO540 (1.375)Reference
Engine RPM547@2600Reference
Engine RPM755@2600Reference
Engine RPM955@2600Reference
Engine RPM1248@2600Reference
Engine RPM-600@2600Reference
Dimensions
Wheelbase164 cmReference
Weight2954 to 3351 poundsReference
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length306 cmReference
ROPS Width135 cmReference
Cab Width138 cmReference
Height (ROPS)195 cmReference
Height (cab)197 cmReference
ROPS Weight1339 kgReference
Cab Weight1520 kgReference
Ground clearance31 cmReference
Front tread109 cmReference
Rear tread105 to 135 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 9% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
