Tractor · 2002Unverified

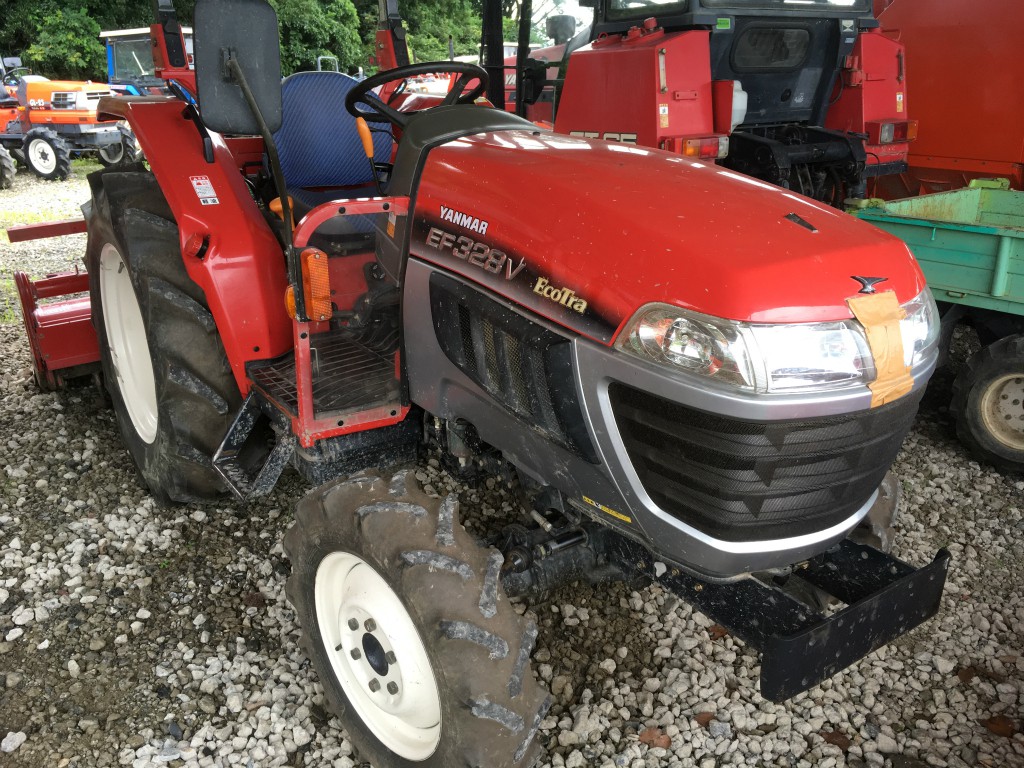

Yanmar EF328
Yanmar EF328 — EF300 Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2976 to 3395 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Variants
EF328ROPSReference
EF328QCabReference
EF328JHigh-speed ROPSReference
EF328JQhigh-speed cabReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank36.0 LReference
Engine20.6 kWReference
Yanmar 3TNV84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power20.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears in four ranges, with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1500 kgReference
Rear PTO540 (1.375)Reference
Engine RPM547@2600Reference
Engine RPM755@2600Reference
Engine RPM955@2600Reference
Engine RPM1248@2600Reference
Engine RPM-600@2600Reference
Dimensions
Wheelbase164 cmReference
Weight2976 to 3395 poundsReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length306 cmReference
Width141 cmReference
Height (ROPS)197 cmReference
Height (cab)199 cmReference
ROPS Weight1349 kgReference
Cab Weight1539 kgReference
Ground clearance31 cmReference
Front tread109 cmReference
Rear tread111 to 141 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 5% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
