Tractor · 2005Unverified

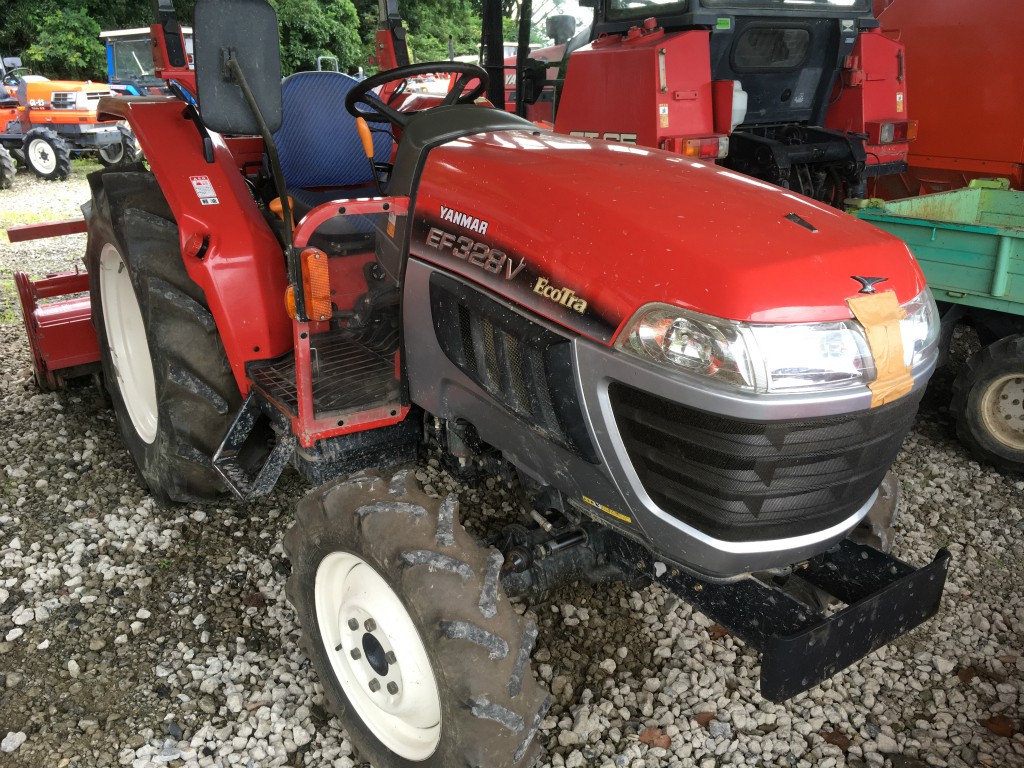

Yanmar EF328V

Name: Yanmar EF328V
Brand: Yanmar

Yanmar EF328V — EF300V Series · 28 hp. Reference specifications; pending source verification.

The Yanmar EF328V is a compact tractor rated at 28 hp, falling within a smaller category of its class. It was produced from 2005 to 2009. Key features of this model include a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a powershift transmission. The tractor's weight is listed as 2976 to 3395 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Weight

2976 to 3395 pounds

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

28 hp

Recorded weight

1349 kg

Transmissions

16-speed four-speed power shift

Production years

2005-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Variants

EF328VROPSReference

EF328VQCabReference

EF328VJROPS high-speedReference

EF328VJQCab high-speedReference

Engine

Yanmar 1.5L 3-cyl dieselReference

Fuel tank36.0 LReference

Engine20.6 kWReference

Yanmar 3TNV84Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power20.6 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed four-speed power shiftReference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Four power shift gears in four ranges, with shuttle.Reference

PTO & Hydraulics

Rear TypeJIS1Reference

Rear lift1500 kgReference

Rear PTO540 (1.375)Reference

Engine RPM547@2600Reference

Engine RPM755@2600Reference

Engine RPM955@2600Reference

Engine RPM1248@2600Reference

Engine RPM-600@2600Reference

Dimensions

Wheelbase164 cmReference

Weight2976 to 3395 poundsReference

Front tire7-16Reference

Rear tire12.4-26Reference

Standard tires (ag)Front: 7-16. Rear: 12.4-26Reference

Length306 cmReference

Width141 cmReference

Height (ROPS)197 cmReference

Height (cab)199 cmReference

ROPS Weight1349 kgReference

Cab Weight1539 kgReference

Ground clearance31 cmReference

Front tread109 cmReference

Rear tread111 to 141 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Speeds

Reverse speeds are 9% slower than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
