Tractor · 2002Unverified

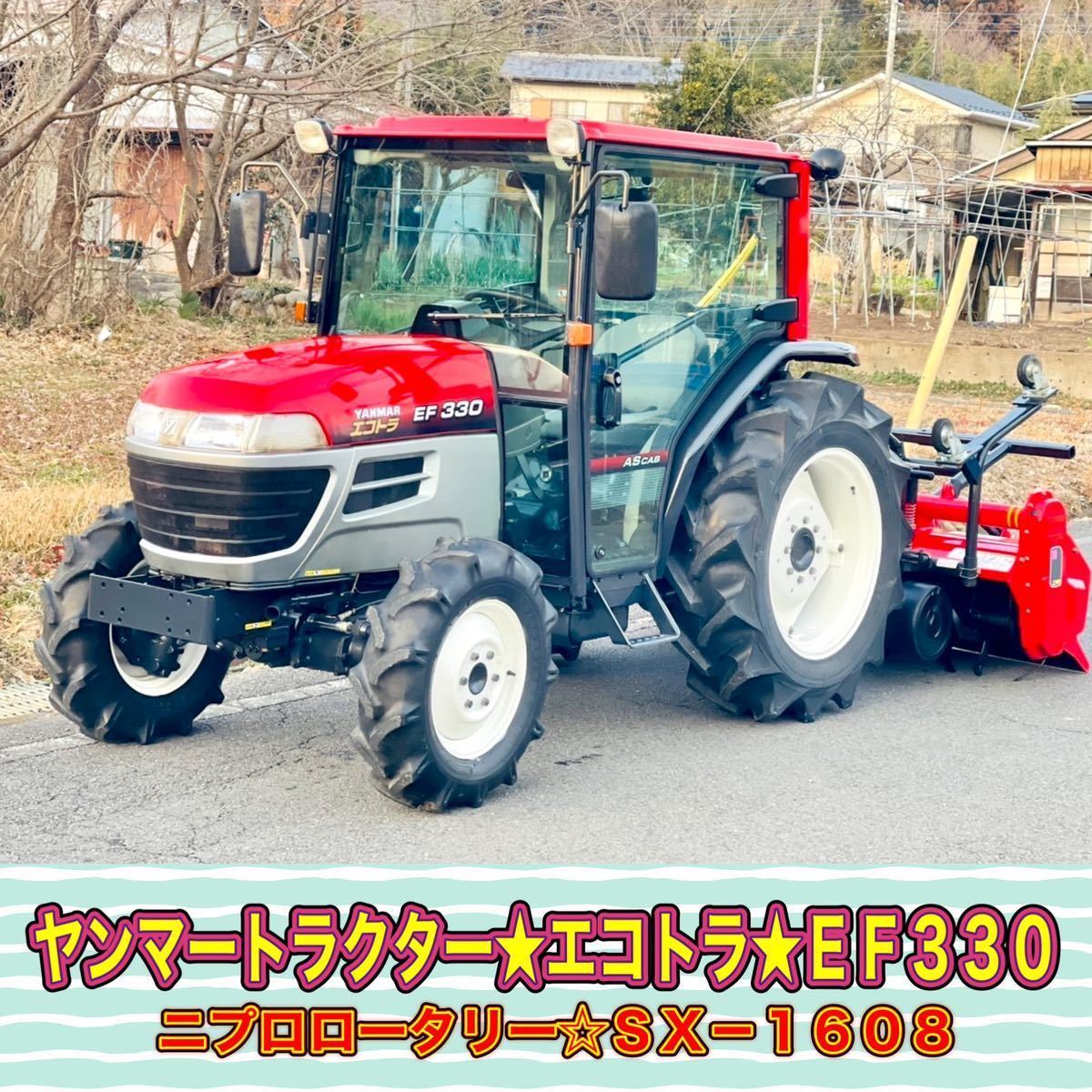

Yanmar EF330
Yanmar EF330 — EF300 Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
3230 to 3571 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Variants
EF330ROPSReference
EF330QCabReference
EF330JHigh-speed ROPSReference
EF330JQhigh-speed cabReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank36.0 LReference
Engine22.1 kWReference
Yanmar 3TNV84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power22.1 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears in four ranges, with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1500 kgReference
Rear PTO540 (1.375)Reference
Engine RPM568@2700Reference
Engine RPM784@2700Reference
Engine RPM991@2700Reference
Engine RPM1296@2700Reference
Engine RPM-623@2700Reference
Dimensions
Wheelbase180 cmReference
Weight3230 to 3571 poundsReference
Front tire8-16Reference
Rear tire12.4-26Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length318 cmReference
Width147 cmReference
Height (ROPS)193 cmReference
Height (cab)197 cmReference
ROPS Weight1465 kgReference
Cab Weight1619 kgReference
Ground clearance32 cmReference
Front tread121 cmReference
Rear tread115 to 138 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 5% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
