Tractor · 2005Unverified

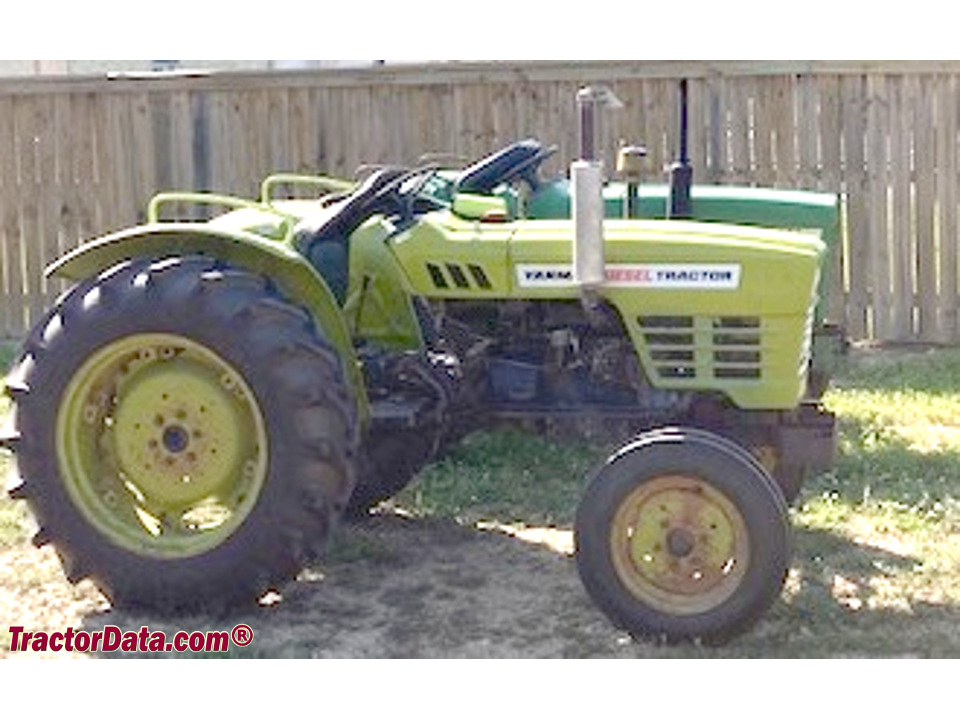

Yanmar EF330VJ
Yanmar EF330VJ — EF300V Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
3284 to 3638 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Variants
EF330VROPSReference
EF330VQCabReference
EF330VJROPS high-speedReference
EF330VJQCab high-speedReference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank36.0 LReference
Engine22.1 kWReference
Yanmar 3TNV88Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Power22.1 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears20 forward and reverseReference
Four power shift gears in five ranges, with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1500 kgReference
Rear PTO540 (1.375)Reference
Engine RPM568@2700Reference
Engine RPM784@2700Reference
Engine RPM991@2700Reference
Engine RPM1296@2700Reference
Engine RPM-623@2700Reference
Dimensions
Wheelbase180 cmReference
Weight3284 to 3638 poundsReference
Front tire8-16Reference
Rear tire12.4-26Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length318 cmReference
Width148 cmReference
Height (ROPS)201 cmReference
Height (cab)211 cmReference
ROPS Weight1489 kgReference
Cab Weight1650 kgReference
Ground clearance32 cmReference
Front tread121 cmReference
Rear tread115 to 138 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 9% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
