Tractor · 2005Unverified

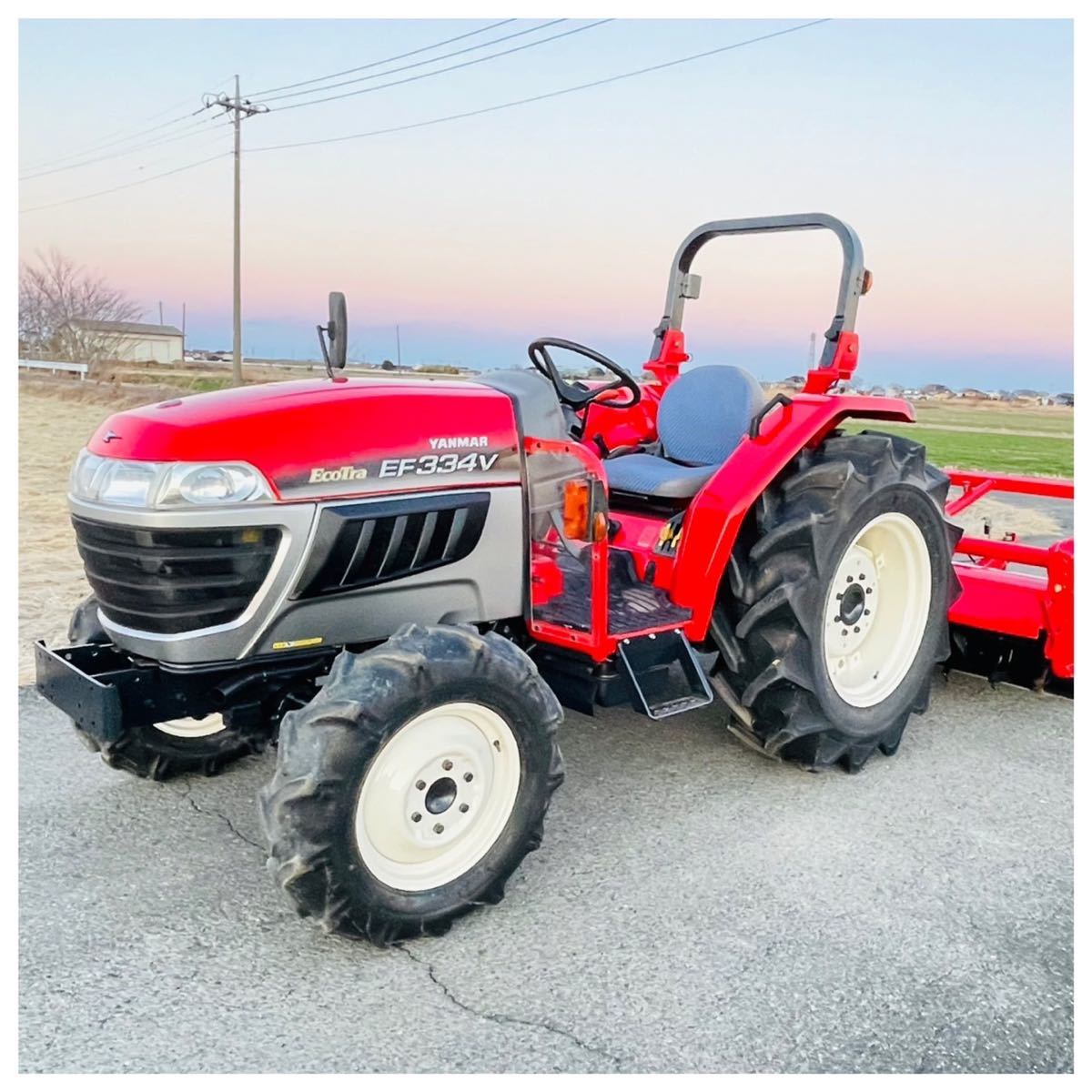

Yanmar EF334VJ
Yanmar EF334VJ — EF300V Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
3395 to 3726 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Variants
EF334VROPSReference
EF334VQCabReference
EF334VJROPS high-speedReference
EF334VJQCab high-speedReference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank36.0 LReference
Engine25.0 kWReference
Yanmar 3TNV88Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Power25.0 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears20 forward and reverseReference
Four power shift gears in five ranges, with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1500 kgReference
Rear PTO540 (1.375)Reference
Engine RPM555@2700Reference
Engine RPM784@2700Reference
Engine RPM991@2700Reference
Engine RPM1296@2700Reference
Engine RPM-622@27000Reference
Dimensions
Wheelbase180 cmReference
Weight3395 to 3726 poundsReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length318 cmReference
Width150 cmReference
Height (ROPS)235 cmReference
Height (cab)214 cmReference
ROPS Weight1539 kgReference
Cab Weight1690 kgReference
Ground clearance34 cmReference
Front tread122 cmReference
Rear tread115 to 150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 9% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
