Tractor · 2002Unverified

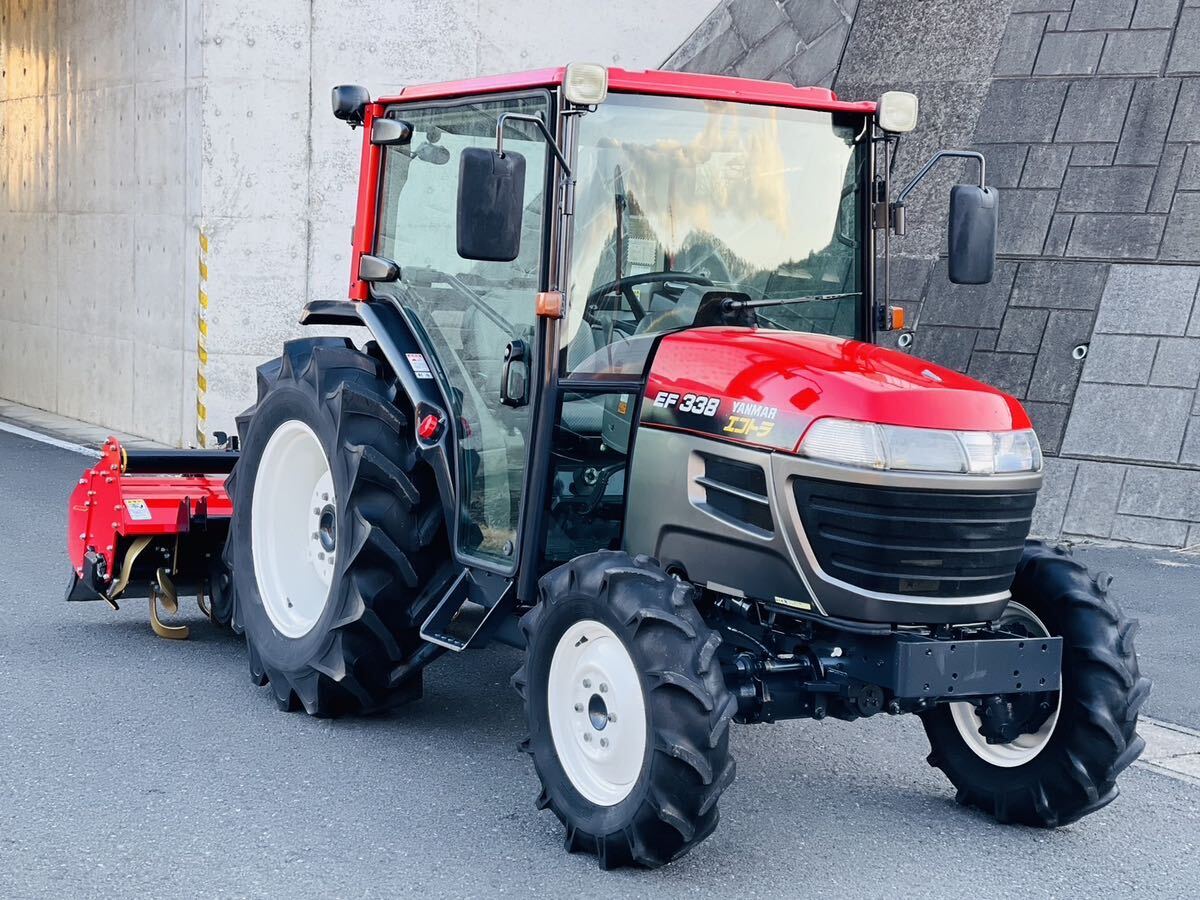

Yanmar EF338
Yanmar EF338 — EF300 Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
3263 to 3616 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Variants
EF338ROPSReference
EF338QCabReference
EF338JHigh-speed ROPSReference
EF338JQhigh-speed cabReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank36.0 LReference
Engine27.9 kWReference
Yanmar 3TNV84TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power27.9 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears in four ranges, with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1500 kgReference
Rear PTO540 (1.375)Reference
Engine RPM555@2700Reference
Engine RPM784@2700Reference
Engine RPM991@2700Reference
Engine RPM1296@2700Reference
Engine RPM-622@2700Reference
Dimensions
Wheelbase180 cmReference
Weight3263 to 3616 poundsReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length318 cmReference
Width150 cmReference
Height (ROPS)193 cmReference
Height (cab)197 cmReference
ROPS Weight1480 kgReference
Cab Weight1640 kgReference
Ground clearance32 cmReference
Front tread121 cmReference
Rear tread117 to 147 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 5% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
