Tractor · 2005Unverified

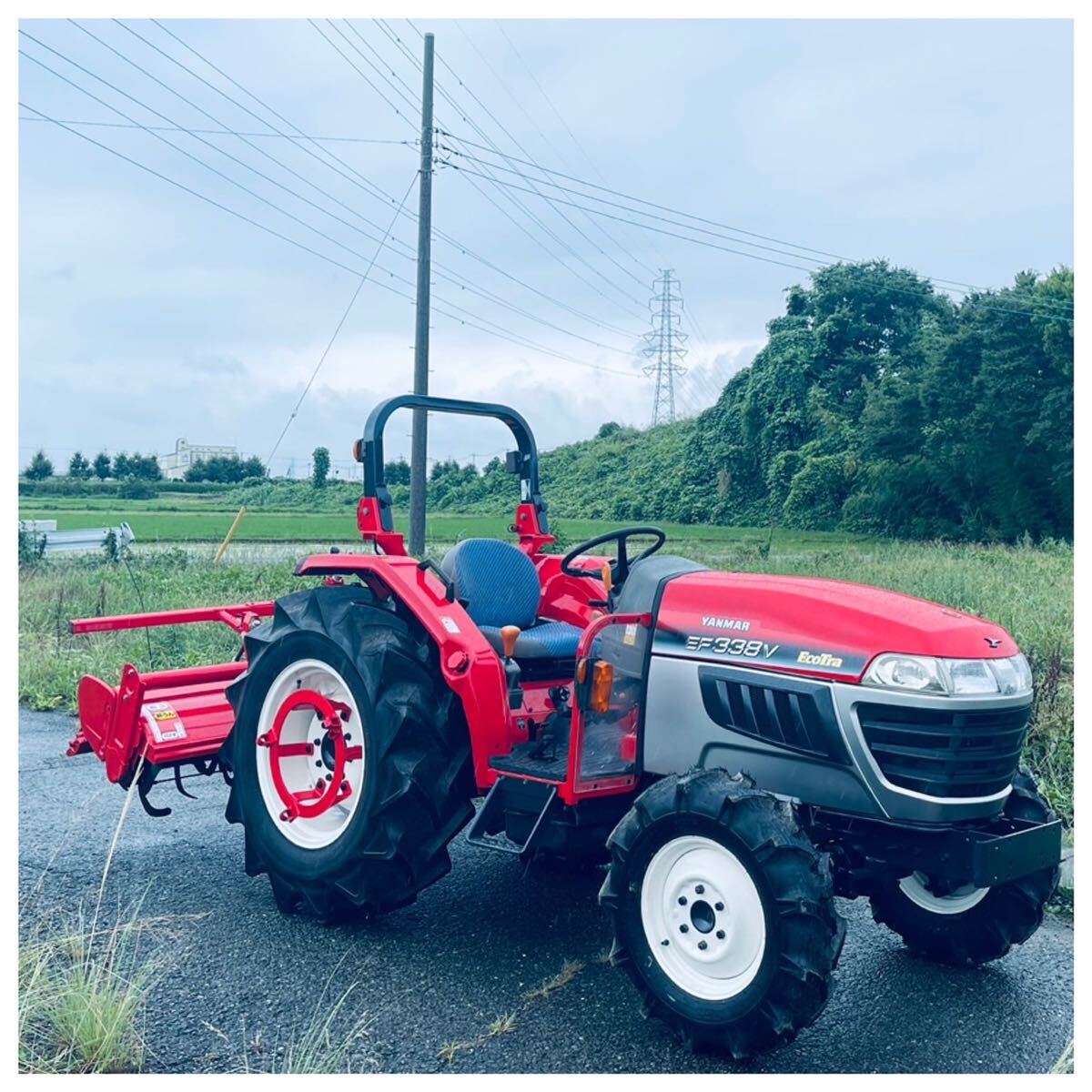

Yanmar EF338V
Yanmar EF338V — EF300V Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
3395 to 3726 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Variants
EF338VROPSReference
EF338VQCabReference
EF338VJROPS high-speedReference
EF338VJQCab high-speedReference
Engine
Yanmar 2.2L 4-cyl dieselReference
Fuel tank36.0 LReference
Engine27.9 kWReference
Yanmar 4TNV88Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power27.9 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears in four ranges, with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1500 kgReference
Rear PTO540 (1.375)Reference
Engine RPM555@2700Reference
Engine RPM784@2700Reference
Engine RPM991@2700Reference
Engine RPM1296@2700Reference
Engine RPM-622@27000Reference
Dimensions
Wheelbase184 cmReference
Weight3395 to 3726 poundsReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length326 cmReference
Width148 cmReference
Height (ROPS)193 cmReference
Height (cab)197 cmReference
ROPS Weight1539 kgReference
Cab Weight1690 kgReference
Ground clearance34 cmReference
Front tread122 cmReference
Rear tread115 to 144 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 9% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
