Tractor · 2005Unverified

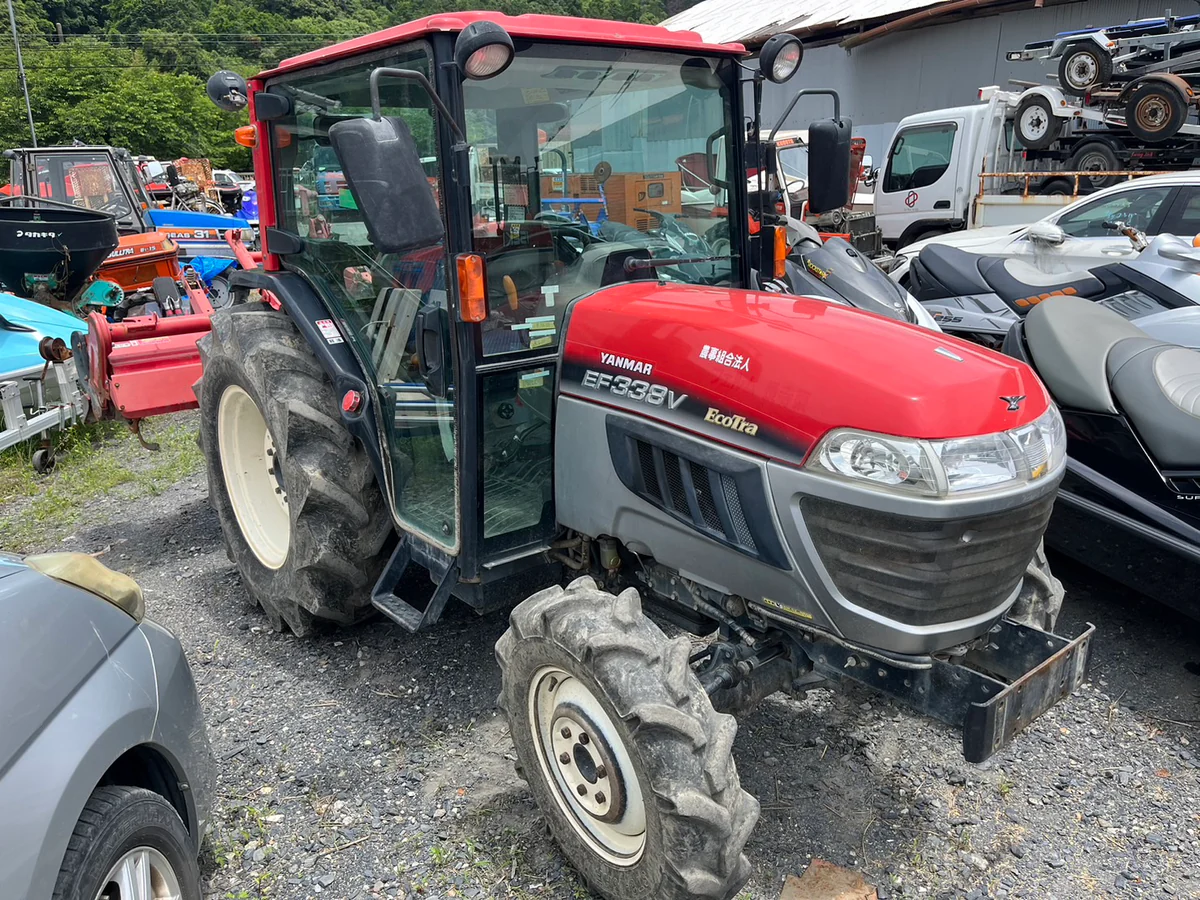

Yanmar EF338VJ

Name: Yanmar EF338VJ
Brand: Yanmar

Yanmar EF338VJ — EF300V Series · 37 hp. Reference specifications; pending source verification.

The Yanmar EF338VJ is a compact tractor with a rating of 37 hp, positioned among its peers by its size. Manufactured from 2005 to 2009, this model features a 4-cylinder diesel liquid-cooled engine, which drives the four-wheel drive system via a powershift transmission. The listed weight ranges from 3483 to 3814 pounds. It is suitable for tasks covering areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

37 hp

Weight

3483 to 3814 pounds

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

37 hp

Recorded weight

1579 kg

Transmissions

20-speed four-speed power shift

Production years

2005-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Variants

EF338VROPSReference

EF338VQCabReference

EF338VJROPS high-speedReference

EF338VJQCab high-speedReference

Engine

Yanmar 2.2L 4-cyl dieselReference

Fuel tank36.0 LReference

Engine27.9 kWReference

Yanmar 4TNV88Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke88 x 90 mmReference

Power27.9 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

20-speed four-speed power shiftReference

Typefour-speed power shiftReference

Gears20 forward and reverseReference

Four power shift gears in five ranges, with shuttle.Reference

PTO & Hydraulics

Rear TypeJIS1Reference

Rear lift1500 kgReference

Rear PTO540 (1.375)Reference

Engine RPM555@2700Reference

Engine RPM784@2700Reference

Engine RPM991@2700Reference

Engine RPM1296@2700Reference

Engine RPM-622@27000Reference

Dimensions

Wheelbase184 cmReference

Weight3483 to 3814 poundsReference

Front tire8-18Reference

Rear tire13.6-26Reference

Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference

Length326 cmReference

Width150 cmReference

Height (ROPS)235 cmReference

Height (cab)214 cmReference

ROPS Weight1579 kgReference

Cab Weight1730 kgReference

Ground clearance34 cmReference

Front tread122 cmReference

Rear tread115 to 150 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Speeds

Reverse speeds are 9% slower than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
