Tractor · 2005Unverified

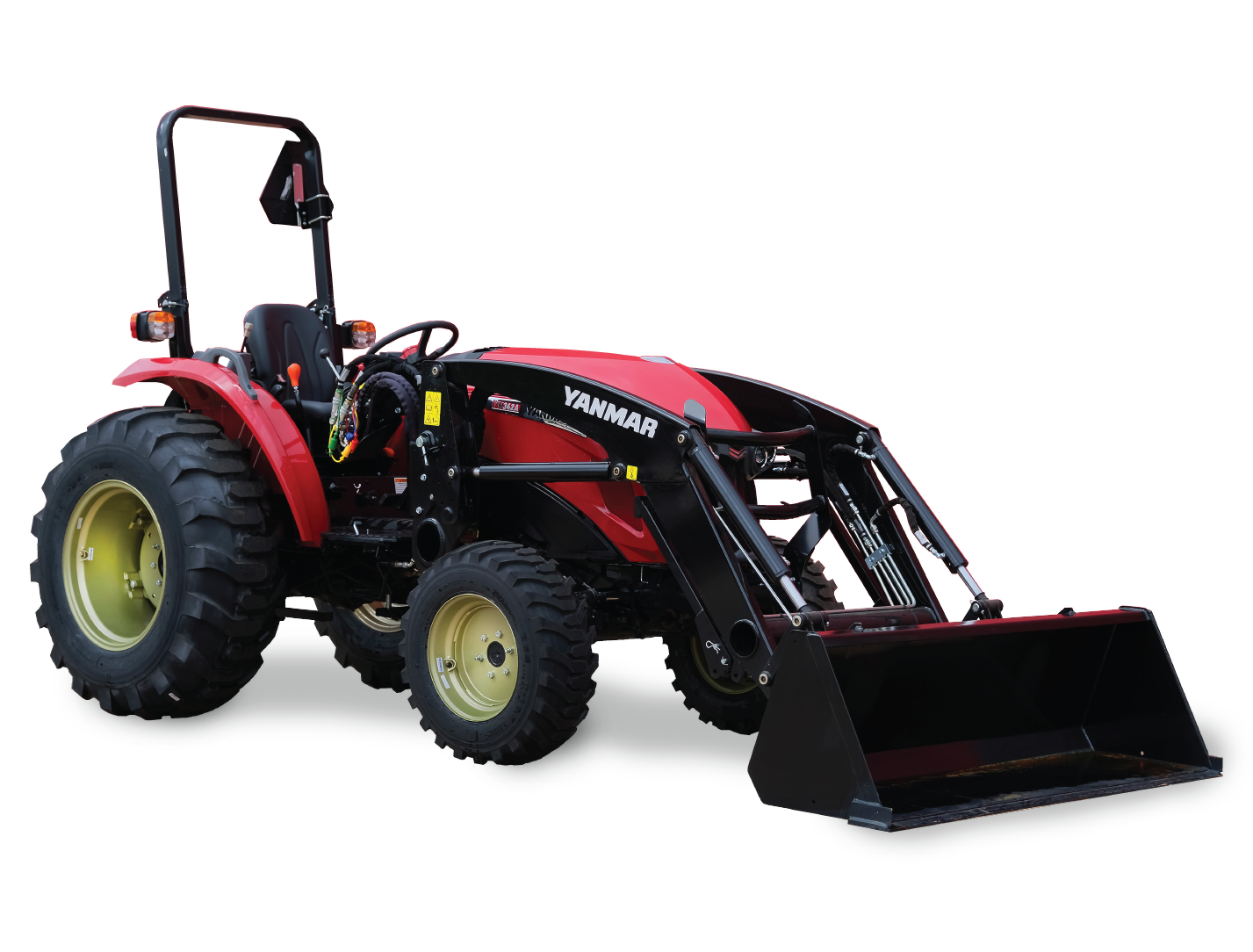

Yanmar EF342VJ
Yanmar EF342VJ — EF300V Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
3483 to 3814 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Variants
EF342VROPSReference
EF342VJQCabReference
Engine
Yanmar 2.2L 4-cyl dieselReference
Fuel tank36.0 LReference
Engine30.9 kWReference
Yanmar 4TNV88Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power30.9 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears20 forward and reverseReference
Four power shift gears in five ranges, with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear lift1500 kgReference
Rear PTO540 (1.375)Reference
Engine RPM555@2700Reference
Engine RPM784@2700Reference
Engine RPM991@2700Reference
Engine RPM1296@2700Reference
Engine RPM-622@27000Reference
Dimensions
Wheelbase184 cmReference
Weight3483 to 3814 poundsReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length326 cmReference
Width150 cmReference
Height (ROPS)235 cmReference
Height (cab)214 cmReference
ROPS Weight1579 kgReference
Cab Weight1730 kgReference
Ground clearance34 cmReference
Front tread122 cmReference
Rear tread115 to 150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 9% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
