Tractor · 2007Unverified

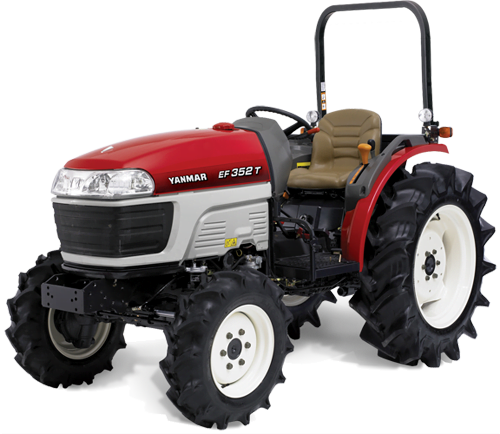

Yanmar EF352T
Yanmar EF352T — EF Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
919 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)26.1 kWReference
Yanmar 3TNV88Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Power (gross)26.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Four gears in two ranges with shuttle.Reference
PTO & Hydraulics
Pump flow23.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1000 kgReference
Rear PTOcontinuousReference
Rear PTO Type540 (1.375)Reference
Engine RPM560@2600Reference
Engine RPM815@2600Reference
Dimensions
Wheelbase160 cmReference
Weight919 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Length284 cmReference
Width132 cmReference
Height (steering wheel)136 cmReference
Ground clearance35 cmReference
Front tread100 cmReference
Rear tread102/110 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
