Tractor · 2012Unverified

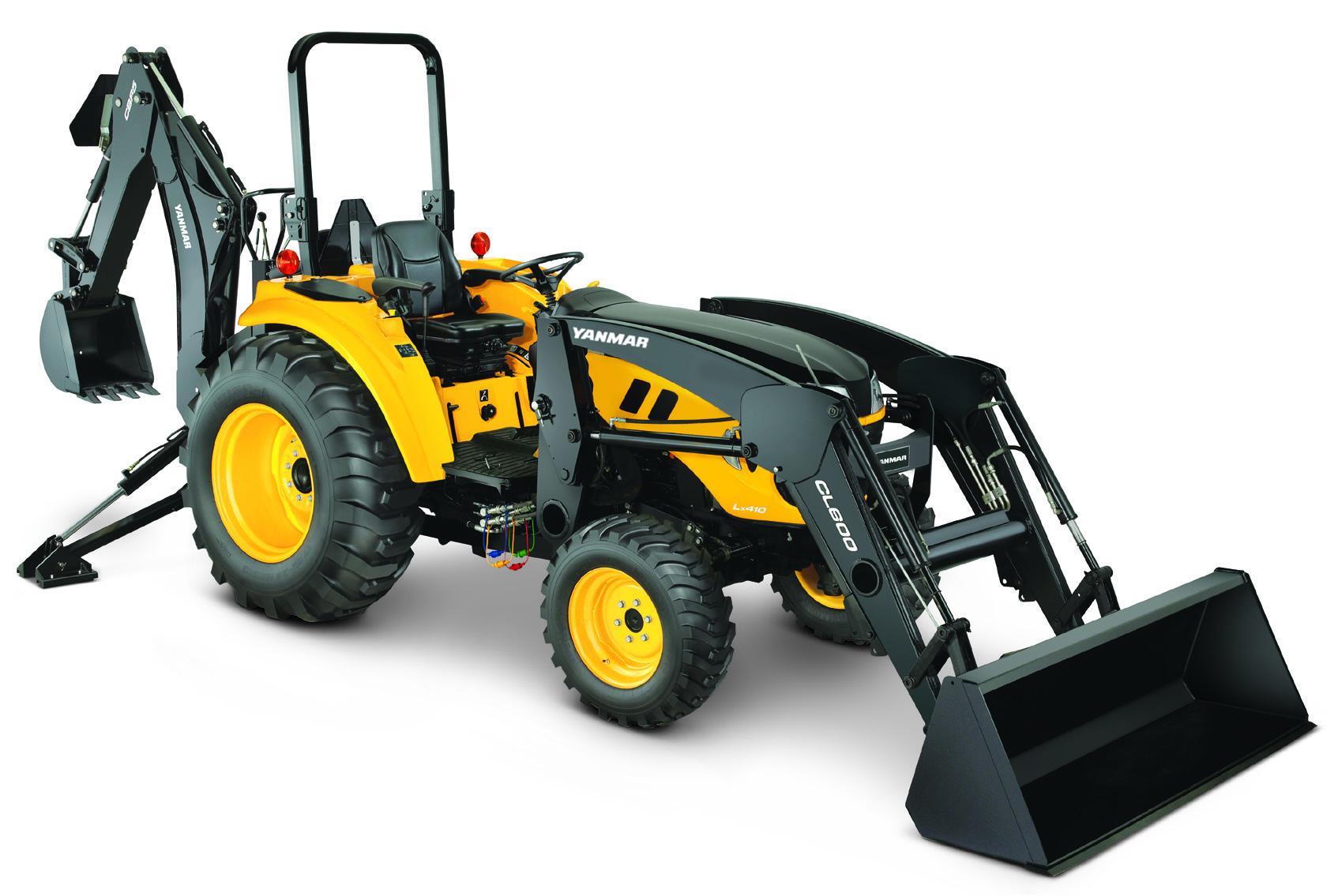

Yanmar Ex2900

Name: Yanmar Ex2900
Brand: Yanmar

Yanmar Ex2900 — Ex Series · 29 hp. Reference specifications; pending source verification.

The Yanmar Ex2900 is a compact tractor with a rating of 29 hp. Manufactured from 2012 to 2014, this model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its listed weight is 1156 kg, and it is suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

29 hp

Max power

28.7 hp

Weight

1156 kg

Catalogue coverage

Variants represented

Richest spec table

105 rows

Recorded power

29 hp

Recorded weight

1156 kg

Transmissions

hydrostatic

Production years

2012-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Original price$16,289 (2009)Reference

Four-wheel driveReference

Final drivesbevel gearReference

SteeringpowerReference

Wet disc brakesReference

Foldable ROPS standard. Optional steel cab.Reference

Engine

Yanmar 1.6L 3-cyl dieselReference

Fuel tank23.8 LReference

Engine (gross)21.4 kWReference

YanmarReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke88 x 90 mmReference

Power (gross)21.4 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementsReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.0 LReference

Coolant capacity4.4 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.465x3.543 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity20.4 LReference

Three-range hydrostatic transmission controled by dual foot pedals.Reference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : infinite (3-range) F and infinite (3-range) RReference

Wheel Drive4WDReference

Rear Axle Drive Typebevel gearReference

PTO & Hydraulics

PTO (claimed)16.9 kWReference

Typeopen centerReference

Pump flow21.2 lpmReference

Total flow37.5 lpmReference

Steering flow16.3 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift (at 24"/610mm)498 kgReference

Rear PTOliveReference

Rear PTO Type540Reference

Engine RPM540@2592Reference

Mid PTO Type2100Reference

Engine RPM2100@2630Reference

Dimensions

Wheelbase154 cmReference

Weight1156 kgReference

Front tire7-14Reference

Rear tire11.2-24Reference

Weight419 kgReference

Ag front7-14Reference

Ag rear11.2-24Reference

Lawn/turf front25x8.5-14Reference

Lawn/turf rear13.6-16Reference

Industrial front25x8.5-14Reference

Industrial rear15-19.5Reference

Length278 cmReference

Width150 cmReference

Operating weight1156 kgReference

Ground clearance25 cmReference

Yanmar Ex2900 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Yanmar CB75 Backhoe

Backhoe typeYanmar CB75 BackhoeReference

Digging depth226 cmReference

2-Foot flat digging depth220 cmReference

Reach from pivot314 cmReference

Loading height204 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1271 kgReference

Dipperstick force900 kgReference

General

Make & ModelYanmarReference

Rollover protective structureFoldable ROPS standard.Reference

Capacities

Capacity100.2 ciReference

Crankcase oil volume4.2 qtsReference

Power

Max Power28.7 hpReference

PTO

PTO Power22.7 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTOAvailableReference

Mid PTO RPM2,100 RPMReference

Engine Speed on Rear PTO speed540@2,592 RPMReference

Engine Speed on Mid PTO speed2,100@2,630 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)9.9 gpmReference

Hydraulics Typeopen centerReference

Steering & Implements flow4.3 gpm (5.6 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Length278.1 cmReference

Overall Width150.1 cmReference

Overall weight1,156.7 kgReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
