Tractor · 2012Unverified

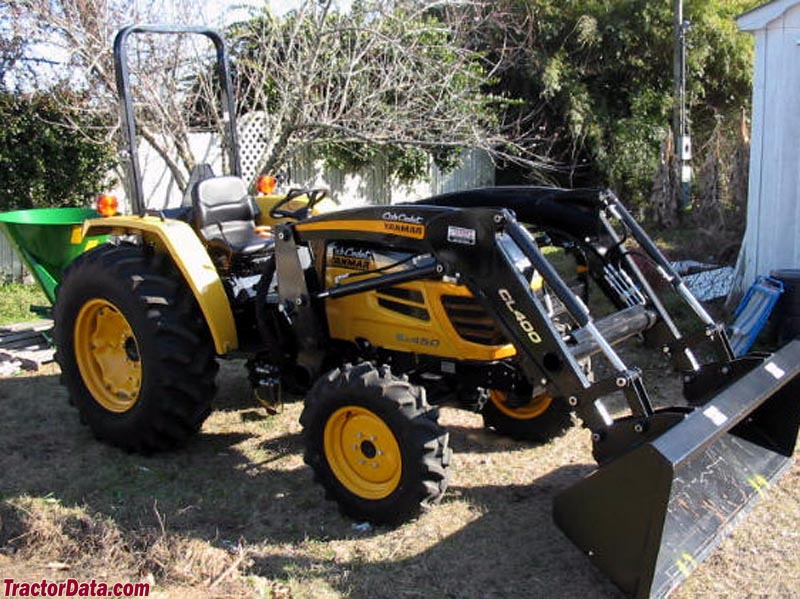

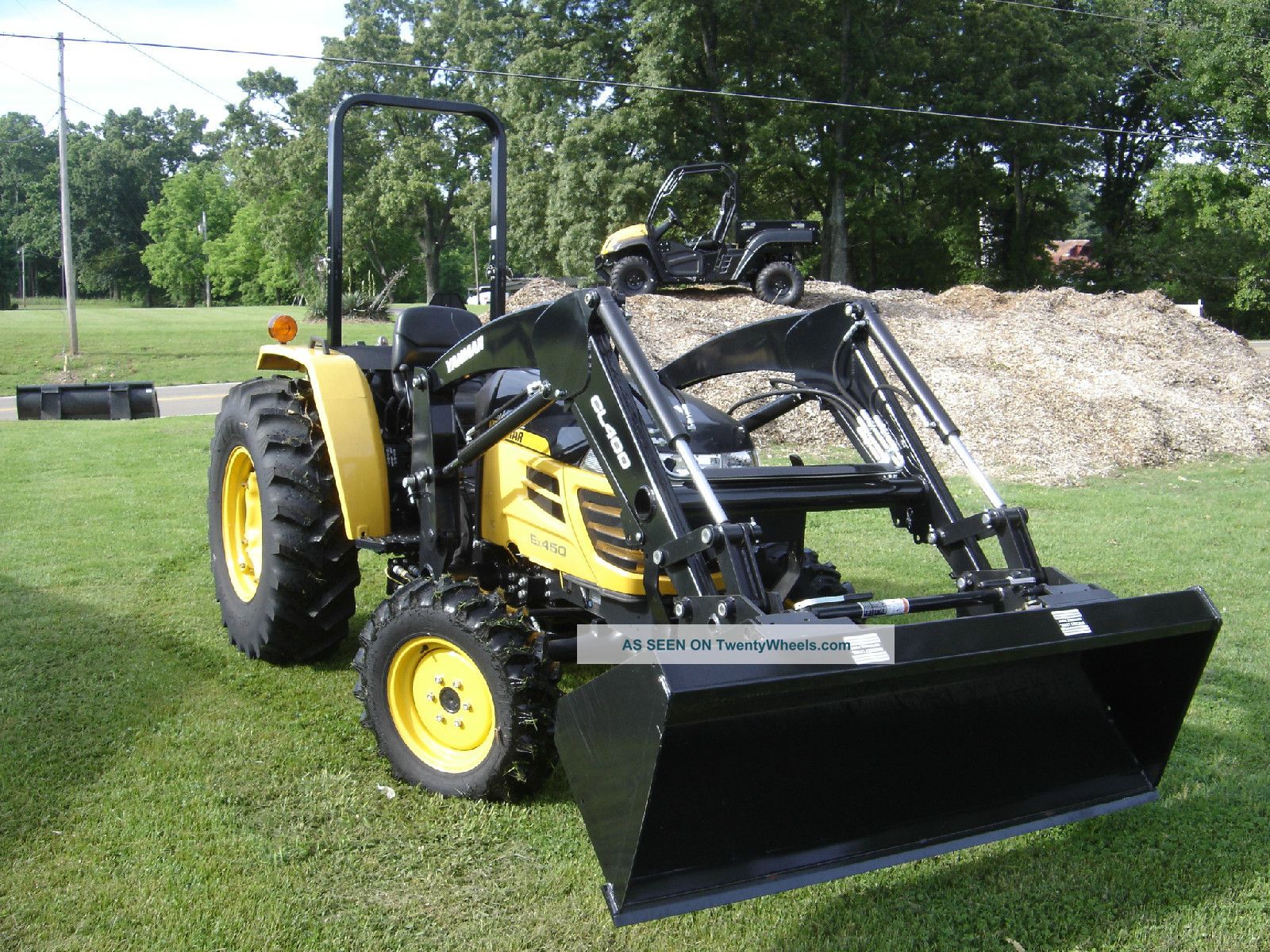

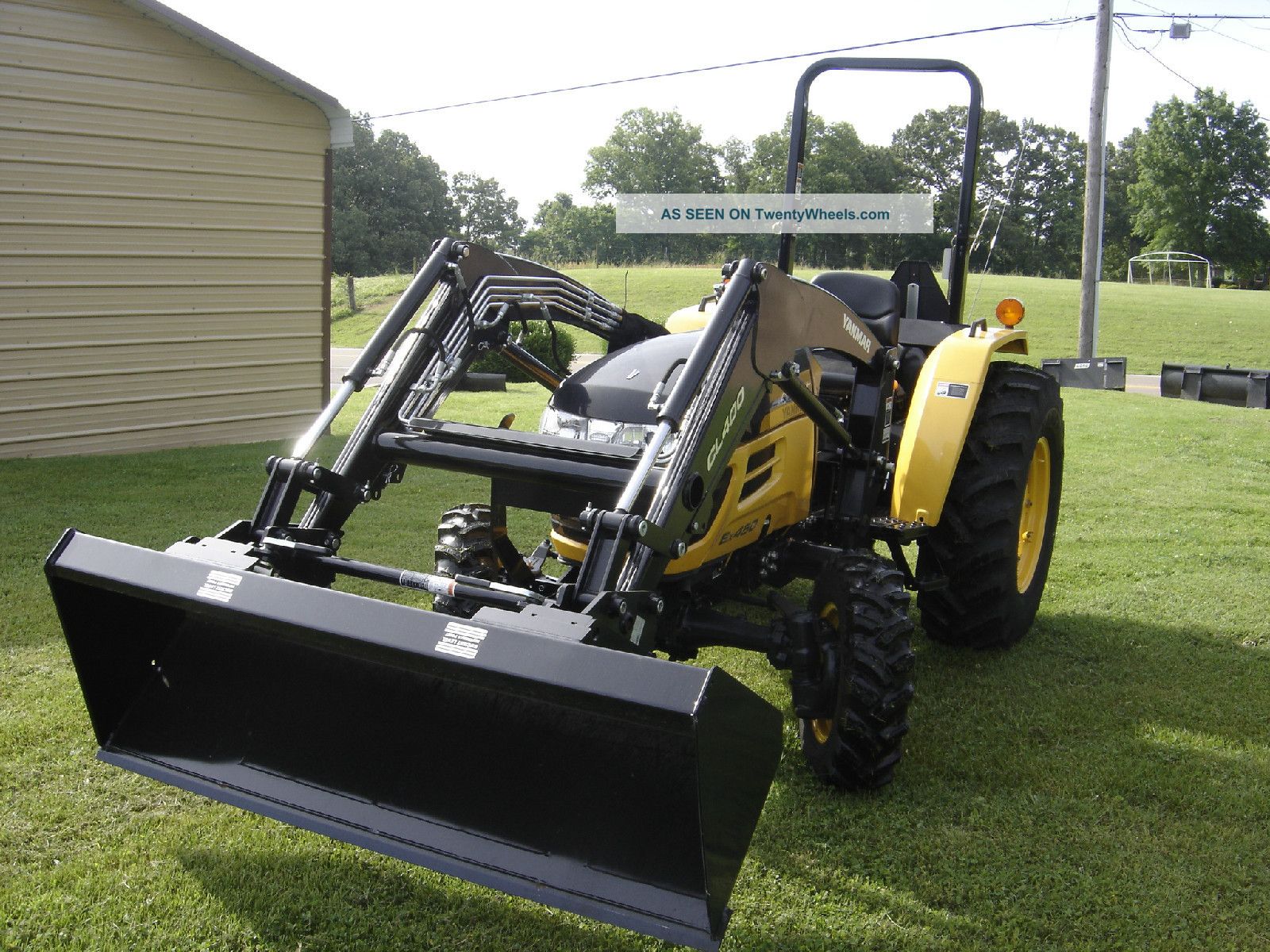

Yanmar Ex450

Name: Yanmar Ex450
Brand: Yanmar

Yanmar Ex450 — Ex Series · 45 hp. Reference specifications; pending source verification.

The Yanmar Ex450 is a tractor with a rating of approximately 45 hp, positioning it at the lighter end of its class. It was manufactured in 2012 and features a 4-cylinder diesel liquid-cooled engine, along with four-wheel drive and a 9-speed gearbox. The tractor has an operating weight of 1587 kg and is designed for use on areas of up to 200 acres. Detailed specifications are provided in both metric and imperial units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Max power

45 hp

Weight

1587 kg

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

45 hp

Recorded weight

1587 kg

Transmissions

9-speed synchronized shuttle

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Original price$21,299 (2009)Reference

Four-wheel driveReference

Steeringhydraulic powerReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Yanmar 2.2L 4-cyl dieselReference

Engine (gross)33.6 kWReference

YanmarReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke88 x 90 mmReference

Power (gross)33.6 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementsReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.3 LReference

Coolant capacity4.4 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,700 RPMReference

Bore and stroke3.465x3.543 inchesReference

Cooling systemliquid-cooledReference

Transmission

9-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears9 forward and reverseReference

Clutchdual stage dryReference

Oil capacity26.5 LReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchronized Shuttle : 9 F and 9 RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)28.0 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow31.0 lpmReference

Total flow48.1 lpmReference

Steering flow17.0 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift (at 24"/610mm)1117 kgReference

Rear PTOliveReference

Clutchdry dual stageReference

Rear PTO Type540Reference

Capacities

Fuel42.8 LReference

Front axle7.6 LReference

Capacity133.6 ciReference

Fuel tank42.8 LReference

Crankcase oil volume5.6 qtsReference

Dimensions

Wheelbase182 cmReference

Weight1587 kgReference

Front tire8-16Reference

Rear tire14.9-24Reference

Ag front8-16Reference

Ag rear14.9-24Reference

Lawn/turf front27x10.5-15Reference

Lawn/turf rear44x18-20Reference

Lawn/turf front27x12-15Reference

Lawn/turf rear44x16.1-22.5Reference

Industrial front10-16.5Reference

Industrial rear17.5-24Reference

Length322 cmReference

Width182 cmReference

Operating weight1587 kgReference

Ground clearance34 cmReference

Yanmar Ex450 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Yanmar CB85 Backhoe

Backhoe typeYanmar CB85 BackhoeReference

Digging depth261 cmReference

2-Foot flat digging depth259 cmReference

Reach from pivot360 cmReference

Loading height220 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1691 kgReference

Dipperstick force1104 kgReference

General

Make & ModelYanmarReference

Rollover protective structureTwo-post ROPS.Reference

Power

Max Power45 hpReference

PTO

PTO Power37.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydraulic powerReference

Hydraulics

Pump Rated Output (total)12.7 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 or 3 ValvesReference

Steering & Implements flow4.5 gpm (8.2 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Length322.6 cmReference

Overall Width182.6 cmReference

Overall weight1,587.1 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
