Tractor · 1992Unverified

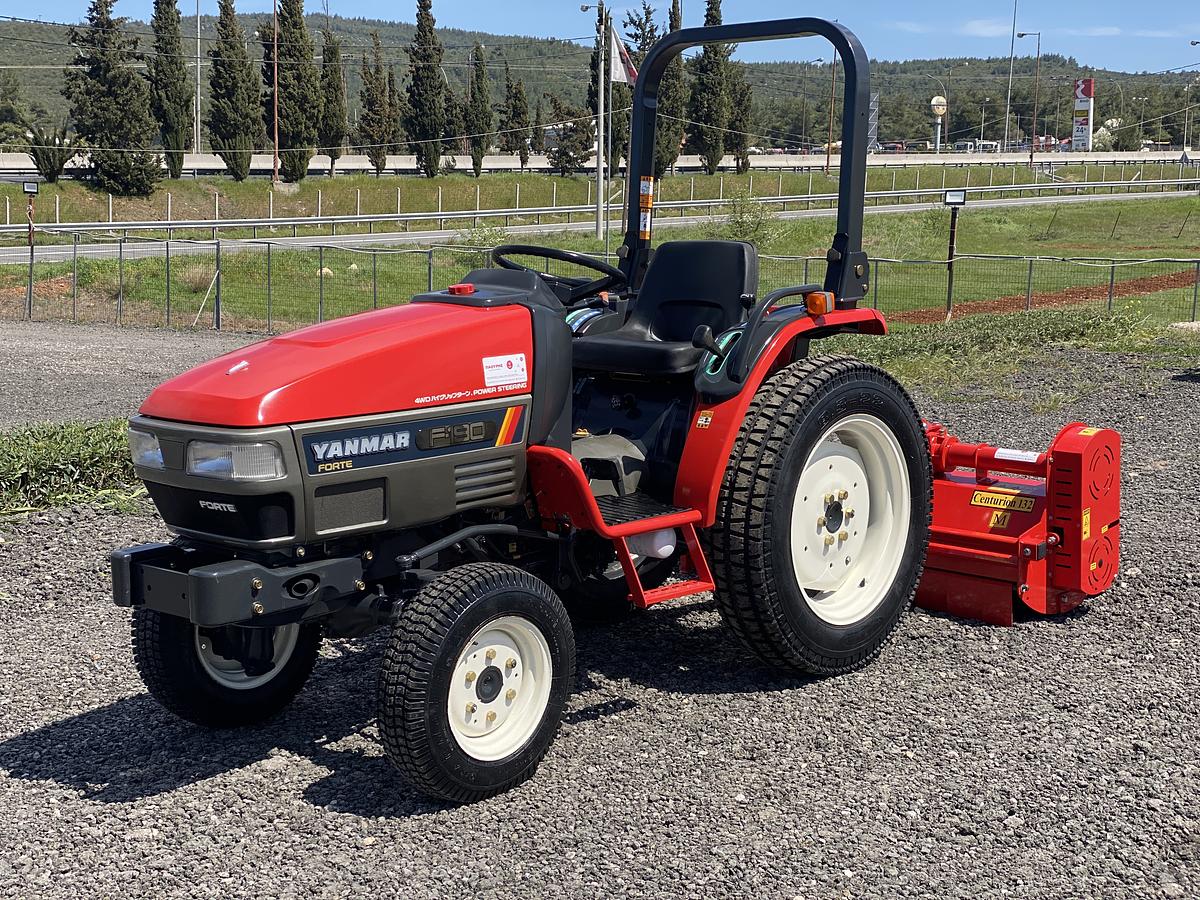

Yanmar F-190

Name: Yanmar F-190
Brand: Yanmar

Yanmar F-190 — Forte F Series · 19 hp. Reference specifications; pending source verification.

The Yanmar F-190 is a compact tractor with a rating of 19 hp, suitable for smaller-scale operations. Manufactured from 1992 to 1998, it features a 3-cylinder diesel liquid-cooled engine, which powers four-wheel drive through a 12-speed gearbox. The listed weight of the tractor is between 1896 and 2039 pounds. It is designed to handle tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

19 hp

Weight

1896 to 2039 pounds

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

19 hp

Recorded weight

860 kg

Transmissions

12-speed shuttle

Production years

1992-1998

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post ROPS. Cab optional.Reference

Engine

Yanmar 1.2L 3-cyl dieselReference

Fuel tank18.2 LReference

Engine13.9 kWReference

Yanmar 3TNE78AReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.2 LReference

Bore/Stroke78 x 84 mmReference

Power13.9 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed shuttleReference

TypeshuttleReference

Gears12 forward and reverseReference

Four gears, in three ranges with left-hand shuttle shift.Reference

PTO & Hydraulics

Rear TypeJIS0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM553@2500Reference

Engine RPM727@2500Reference

Engine RPM1210@2500Reference

Engine RPM-667@2500Reference

Dimensions

Wheelbase141 cmReference

Weight1896 to 2039 poundsReference

Front tire6-12Reference

Rear tire8.3-22Reference

Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference

Length268 cmReference

Width115 cmReference

Height (ROPS)190 cmReference

Height (cab)193 cmReference

ROPS Weight860 kgReference

Cab Weight924 kgReference

Ground clearance30 cmReference

Front tread90 cmReference

Rear tread90/103 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps20Reference

Battery volts12Reference

Battery AH70Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
