Tractor · 1992Unverified

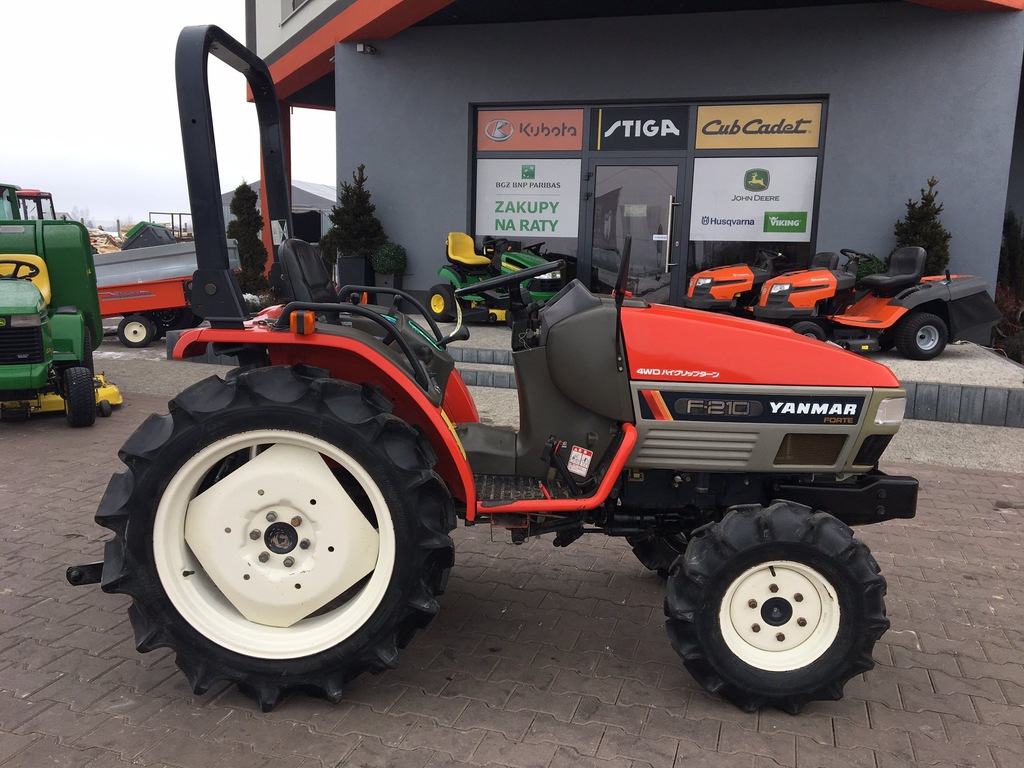

Yanmar F-210
Yanmar F-210 — Forte F Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1929 to 2072 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS. Cab optional.Reference
Engine
Yanmar 1.2L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine15.4 kWReference
Yanmar 3TNET78AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke78 x 84 mmReference
Power15.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
TypeshuttleReference
Gears12 forward and reverseReference
Four gears, in three ranges with left-hand shuttle shift.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2500Reference
Engine RPM727@2500Reference
Engine RPM1210@2500Reference
Engine RPM-667@2500Reference
Dimensions
Wheelbase141 cmReference
Weight1929 to 2072 poundsReference
Front tire6.00-12Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.3-24Reference
Length268 cmReference
Width115 cmReference
Height (ROPS)191 cmReference
Height (cab)194 cmReference
ROPS Weight874 kgReference
Cab Weight939 kgReference
Ground clearance32 cmReference
Front tread91 cmReference
Rear tread90/103 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
