Tractor · 1992Unverified

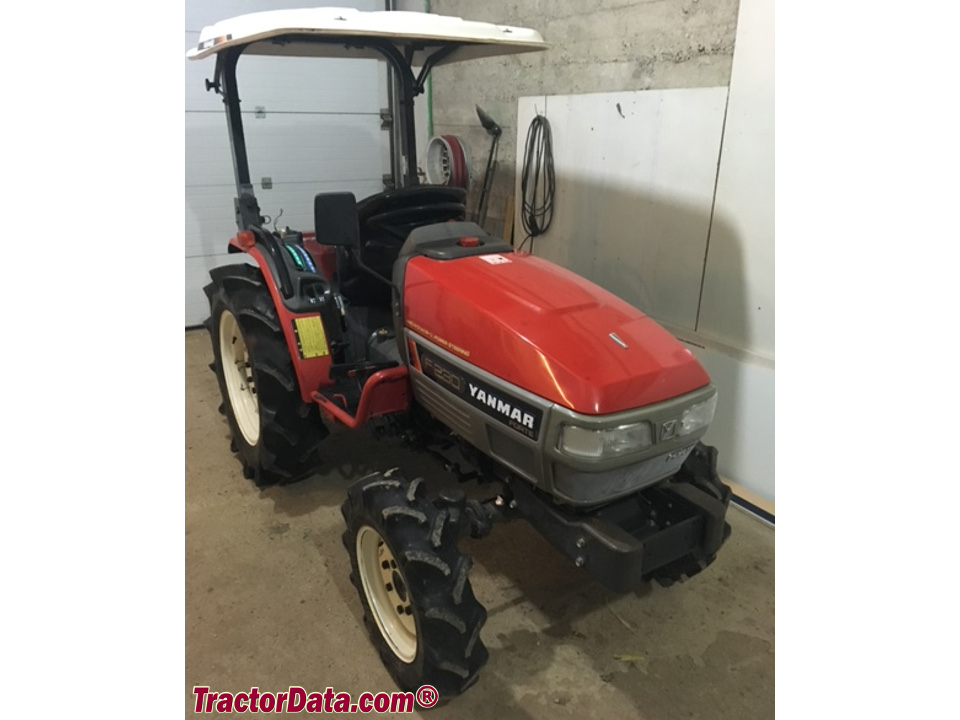

Yanmar F-230

Name: Yanmar F-230
Brand: Yanmar

Yanmar F-230 — Forte F Series · 23 hp. Reference specifications; pending source verification.

The Yanmar F-230 is a tractor with a rated power output of 23 hp, positioning it at the lighter end of its class. Produced from 1992 to 1998, the F-230 is equipped with a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 12-speed gearbox. The tractor's operating weight ranges from 1940 to 2083 pounds. It is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

1940 to 2083 pounds

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

23 hp

Recorded weight

879 kg

Transmissions

12-speed shuttle

Production years

1992-1998

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post ROPS. Cab optional.Reference

Engine

Yanmar 1.3L 3-cyl dieselReference

Fuel tank22.0 LReference

Engine16.9 kWReference

Yanmar 3TNE82AReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke82 x 84 mmReference

Power16.9 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed shuttleReference

TypeshuttleReference

Gears12 forward and reverseReference

Four gears, in three ranges with left-hand shuttle shift.Reference

PTO & Hydraulics

Rear TypeJIS0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM553@2500Reference

Engine RPM727@2500Reference

Engine RPM1210@2500Reference

Engine RPM-667@2500Reference

Dimensions

Wheelbase141 cmReference

Weight1940 to 2083 poundsReference

Front tire6-14Reference

Rear tire9.5-22Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference

Length268 cmReference

Width120 cmReference

Height (ROPS)192 cmReference

Height (cab)194 cmReference

ROPS Weight879 kgReference

Cab Weight944 kgReference

Ground clearance33 cmReference

Front tread91 cmReference

Rear tread93/105 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps20Reference

Battery volts12Reference

Battery AH70Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
