Tractor · 1992Unverified

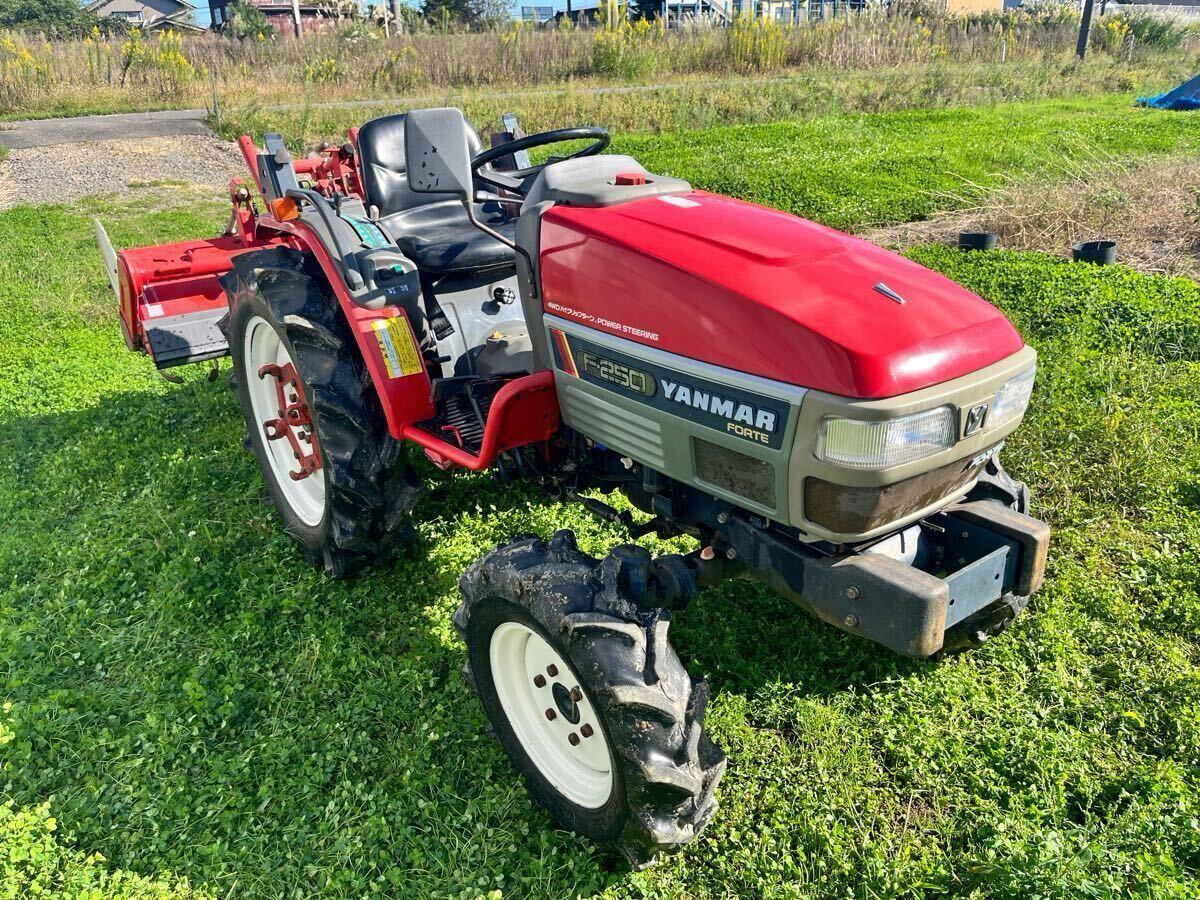

Yanmar F-250
Yanmar F-250 — Forte F Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1984 to 2127 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS. Cab optional.Reference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine18.4 kWReference
Yanmar 3TNE82AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke82 x 84 mmReference
Power18.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
TypeshuttleReference
Gears12 forward and reverseReference
Four gears, in three ranges with left-hand shuttle shift.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2500Reference
Engine RPM727@2500Reference
Engine RPM1210@2500Reference
Engine RPM-667@2500Reference
Dimensions
Wheelbase144 cmReference
Weight1984 to 2127 poundsReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length268 cmReference
Width125 cmReference
Height (ROPS)196 cmReference
Height (cab)199 cmReference
ROPS Weight899 kgReference
Cab Weight964 kgReference
Ground clearance36 cmReference
Front tread98 cmReference
Rear tread96/108 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
