Tractor · 1989Unverified

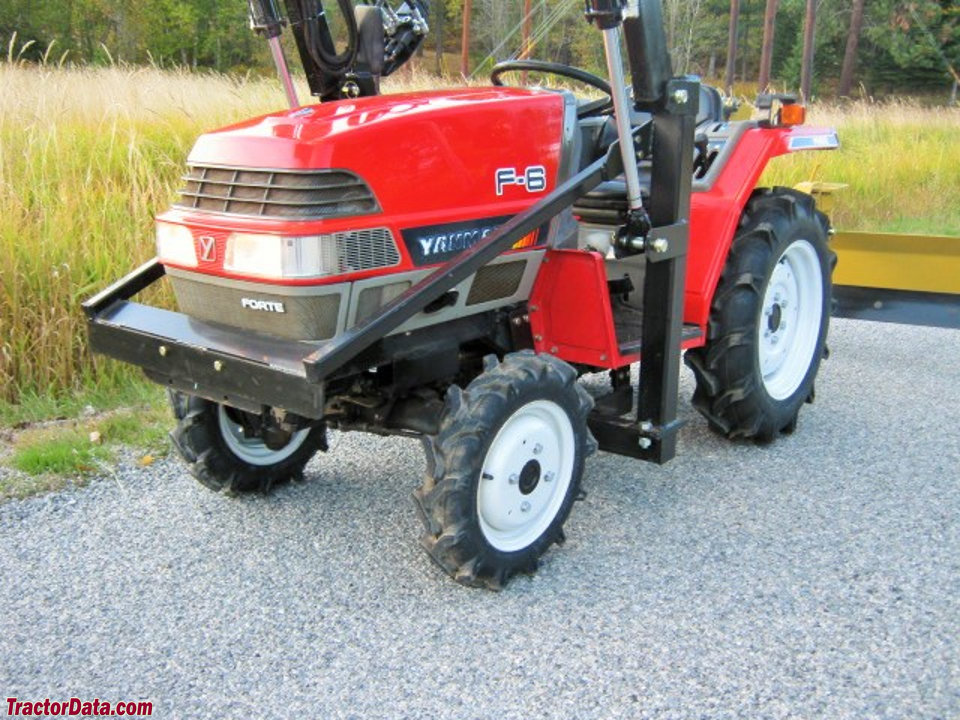

Yanmar F-6 Forte
Yanmar F-6 Forte — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Open operator station.Reference
Engine
Yanmar 0.9L 3-cyl dieselReference
Engine11.6 kWReference
Yanmar 3TNA72Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 72 mmReference
Power11.6 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Three speeds, plus reverse, in two ranges with additional creeper range.Reference
PTO & Hydraulics
Rear PTO Type540/750/1000Reference
Dimensions
Front tire5-12Reference
Rear tire8-18Reference
Ag front5-12Reference
Ag rear8-18Reference
Length314 cmReference
Width137 cmReference
Height130 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
