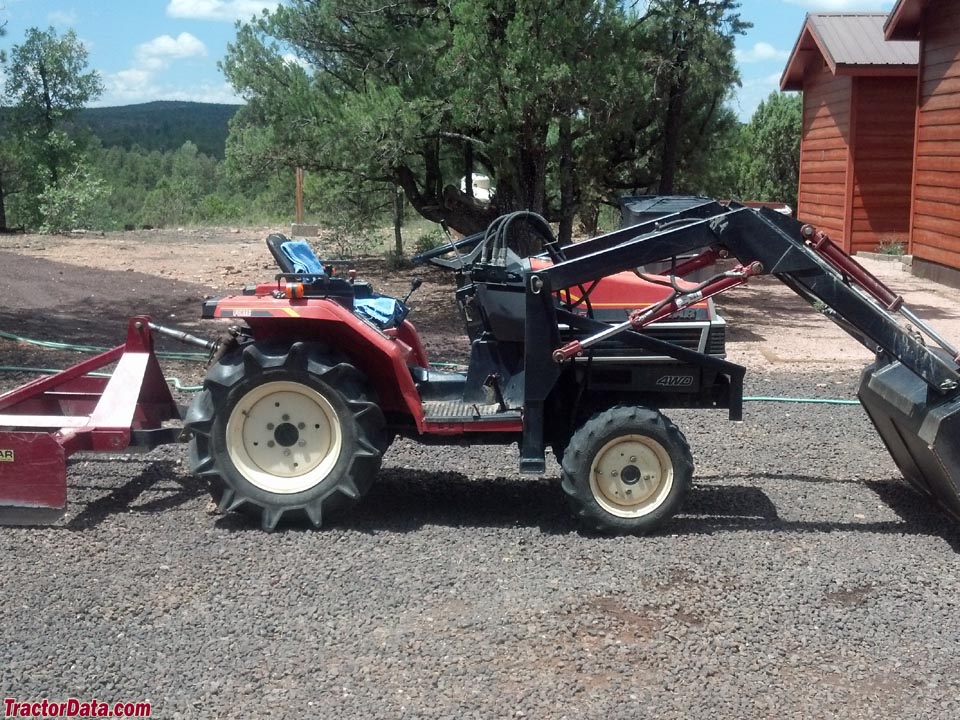

The Yanmar F145 is a compact tractor with a power rating of 14 hp, making it suitable for smaller-scale operations. Manufactured from 1983 to 1987, it features a 3-cylinder diesel liquid-cooled engine and mechanical front-wheel drive, which is coupled with a 6-speed gearbox. The tractor is designed for use on land areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Catalogue coverage
Variants represented
2
Richest spec table
25 rows
Recorded power
14 hp
Transmissions
6-speed gear
Production years
1983-1987
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Sub-Compact Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (F145D)Reference
Differential lockmechanical rearReference
Open operator station.Reference
Variants
F145D4WDReference

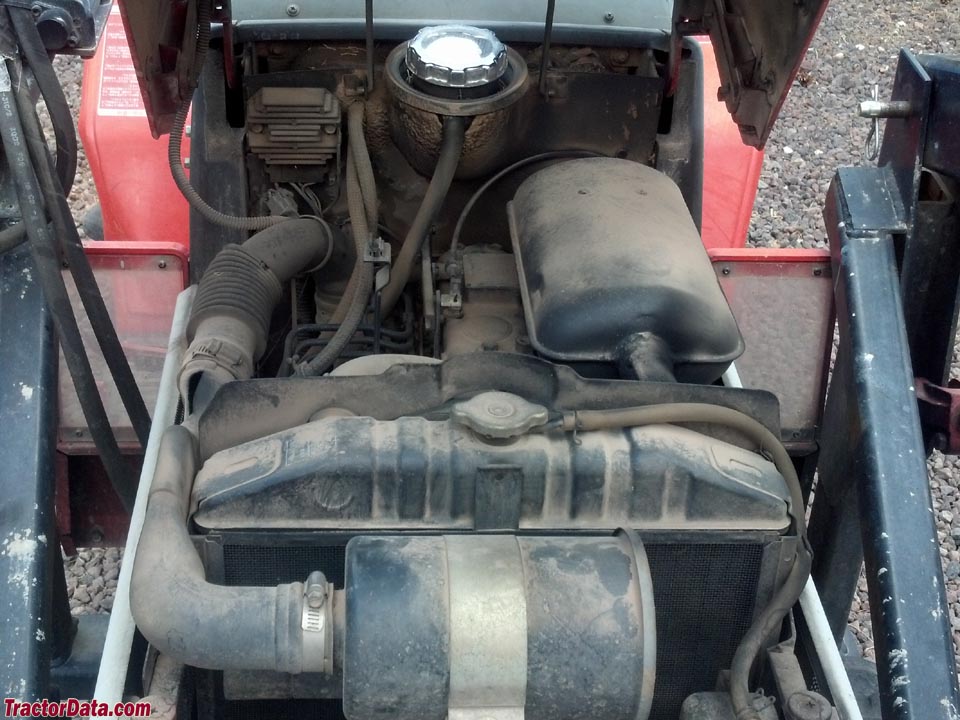

Engine
3-cyl dieselReference
Fuel tank11.4 LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Starter volts12Reference

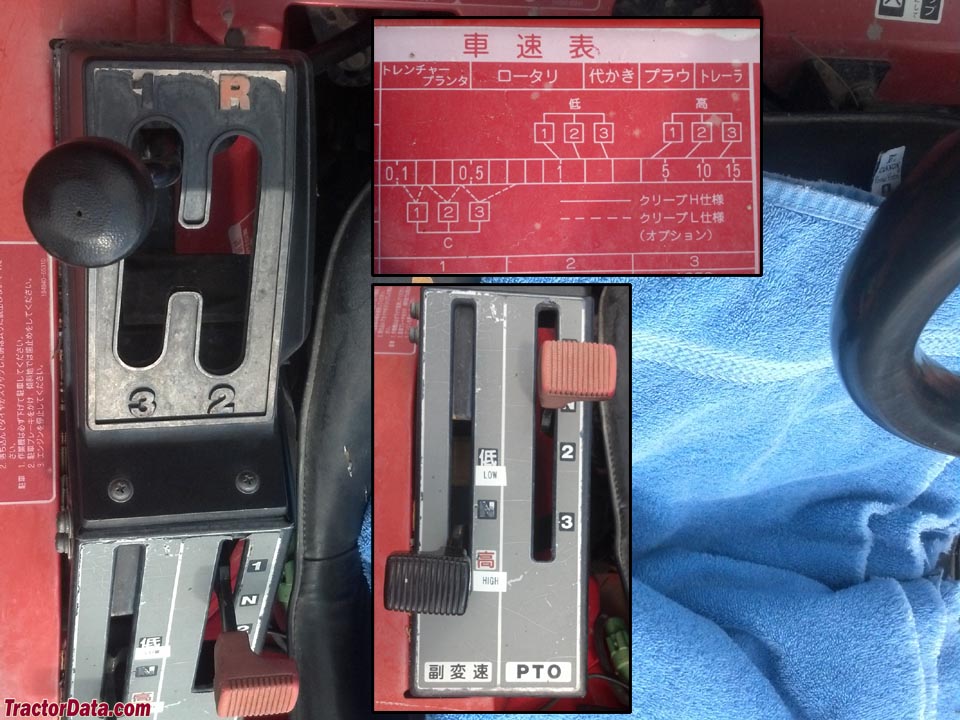

Transmission
6-speed gearReference
9-speed creeperReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears (1-3), plus reverse (R) in two ranges.Reference
TypecreeperReference
Gears9 forward and 3 reverseReference

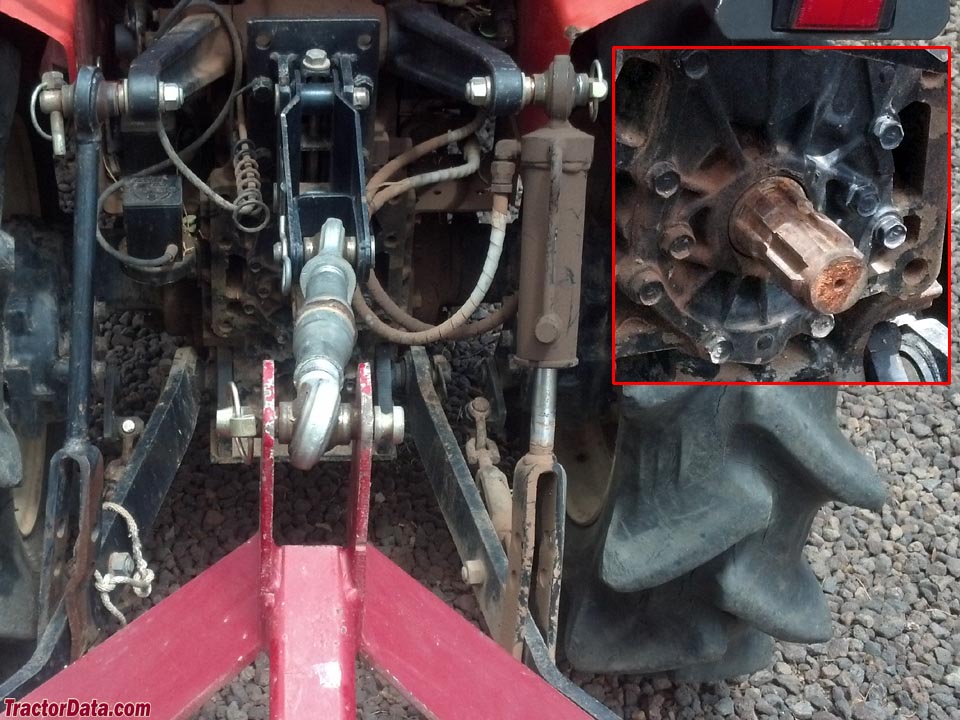

PTO & Hydraulics
PTO (claimed)10.4 kWReference
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
