Tractor · 1983Unverified

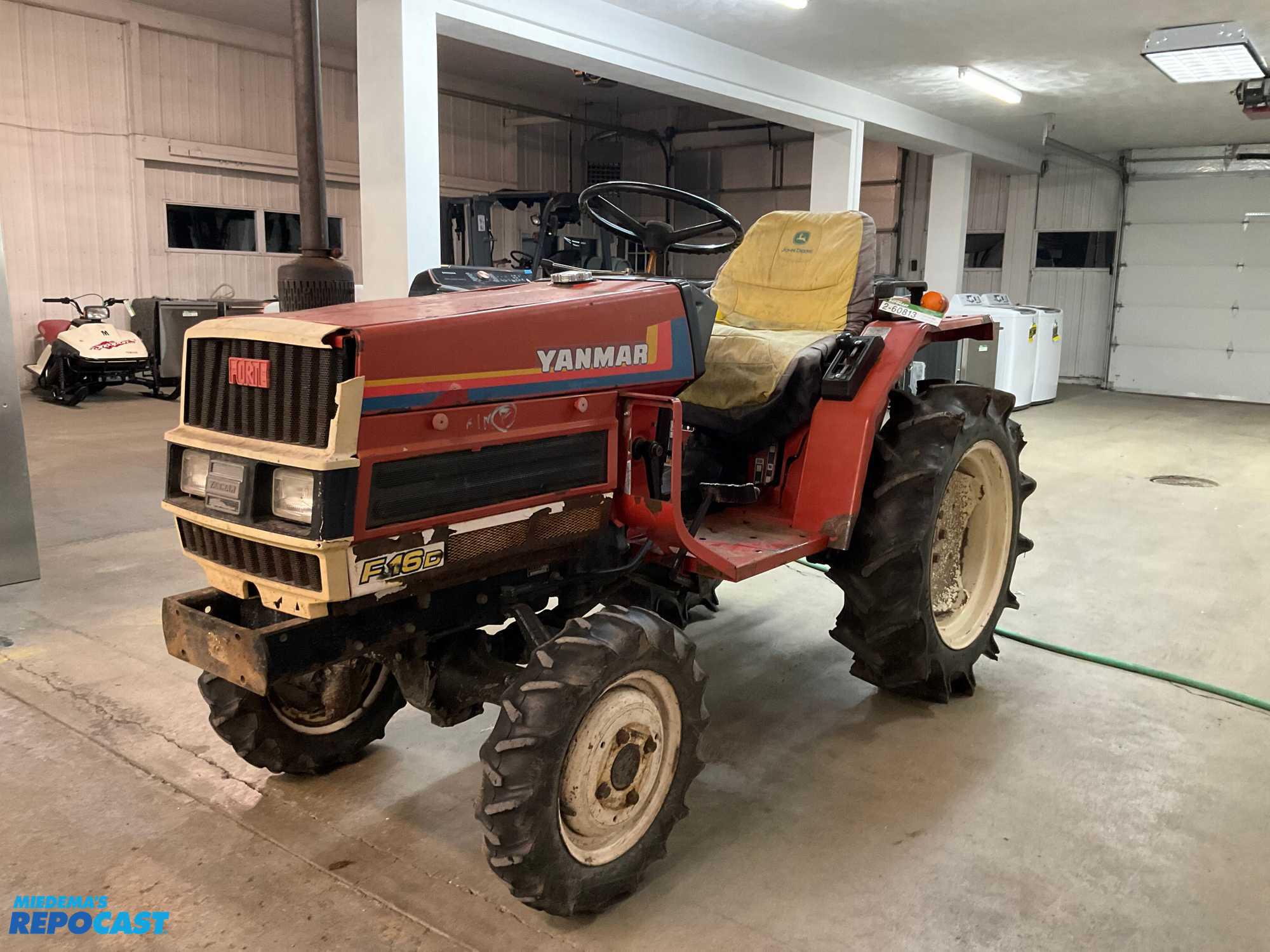

Yanmar F16D
Yanmar F16D — F Series · 16 hp. Reference specifications; pending source verification.
The Yanmar F16D is a compact tractor with a rated output of 16 hp, featuring a 3-cylinder diesel liquid-cooled engine. It was manufactured from 1983 to 1986. Specifications include four-wheel drive and a listed weight of 865 kg. The F16D is designed for use on small to medium-sized plots, typically up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
865 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
16 hp
Recorded weight
865 kg
Transmissions
gear
Production years
1983-1986
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Engine14.9 kWReference
Yanmar 3T75UReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke75 x 75 mmReference
Power14.9 kWReference
Starter volts12Reference
Fuel TypeDieselReference
No of Cylinders3-cylinderReference
Bore and stroke2.95x2.95 inchesReference
Cooling systemliquid-cooledReference
PTO & Hydraulics
PTO (claimed)11.9 kWReference
Dimensions
Weight865 kgReference
Length233 cmReference
Width104 cmReference
Height175 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Transmission
TransmissiongearReference
General
Make & ModelYanmarReference
Country of manufacturerCompact Utility tractorReference
Capacities
Capacity60.7 ciReference
Power
Rated Power20 hpReference
Dimensions & weight
Overall Height175.3 cmReference
Overall Length233.7 cmReference
Overall Width104.1 cmReference
Operator station
Cab AvailabilityAvailableReference
Cab Air conditioning, temperature differential4WDReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
