Tractor · 1983Unverified

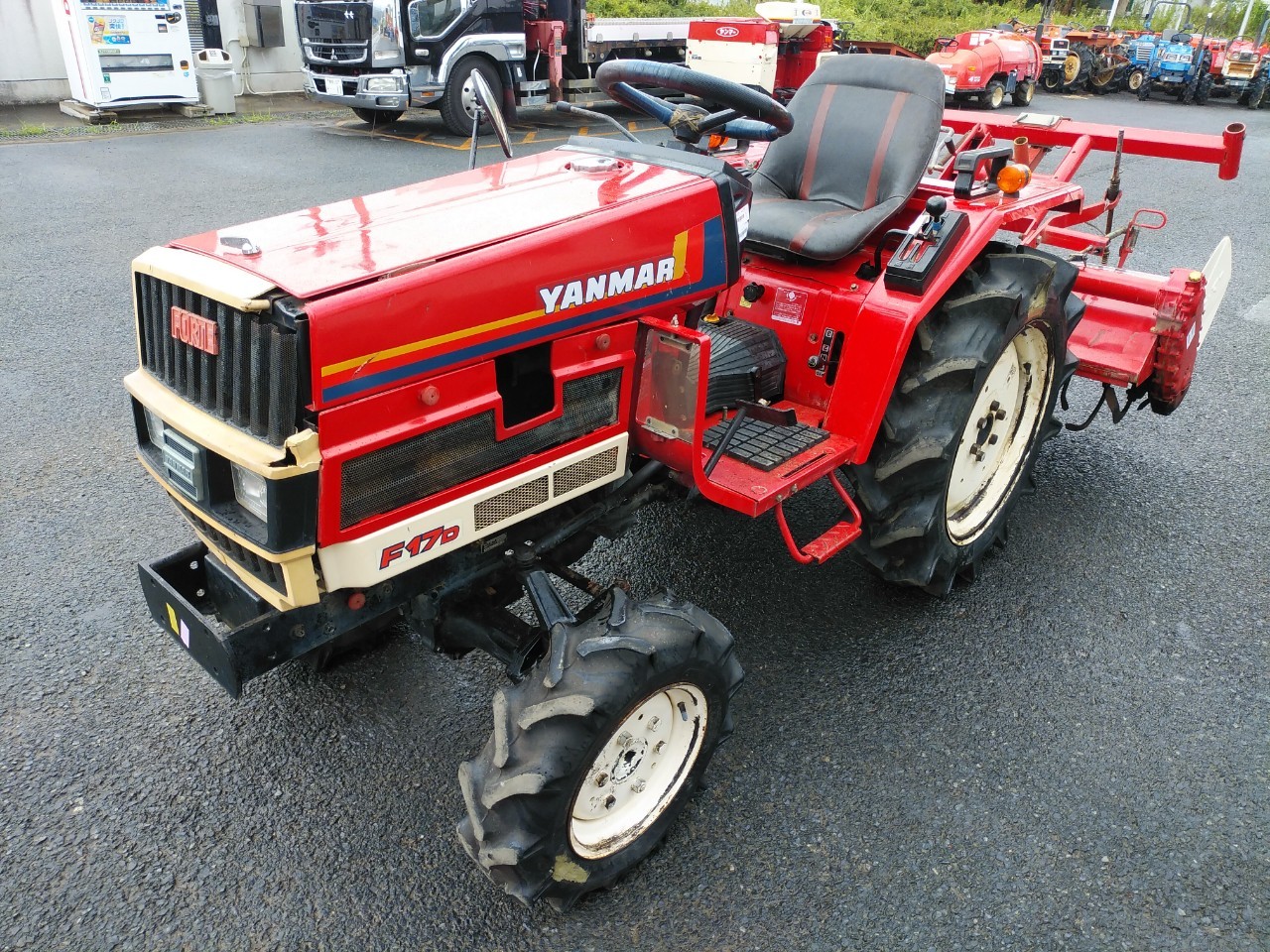

Yanmar F17D

Name: Yanmar F17D
Brand: Yanmar

Yanmar F17D — F Series · 17 hp. Reference specifications; pending source verification.

The Yanmar F17D is a tractor rated at 17 hp — making it one of the more compact options in its class. It was manufactured from 1983 to 1986. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive. Listed weight is 980 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

980 kg

Catalogue coverage

Variants represented

Richest spec table

22 rows

Recorded power

17 hp

Recorded weight

980 kg

Transmissions

gear

Production years

1983-1986

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Open operator station.Reference

Engine

Yanmar 1.0L 3-cyl dieselReference

Engine15.7 kWReference

Yanmar 3TN75UReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke75 x 75 mmReference

Power15.7 kWReference

Starter volts12Reference

PTO & Hydraulics

PTO (claimed)12.7 kWReference

Dimensions

Weight980 kgReference

Length259 cmReference

Width111 cmReference

Height187 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Transmission

TransmissiongearReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
