Tractor · 1983Unverified

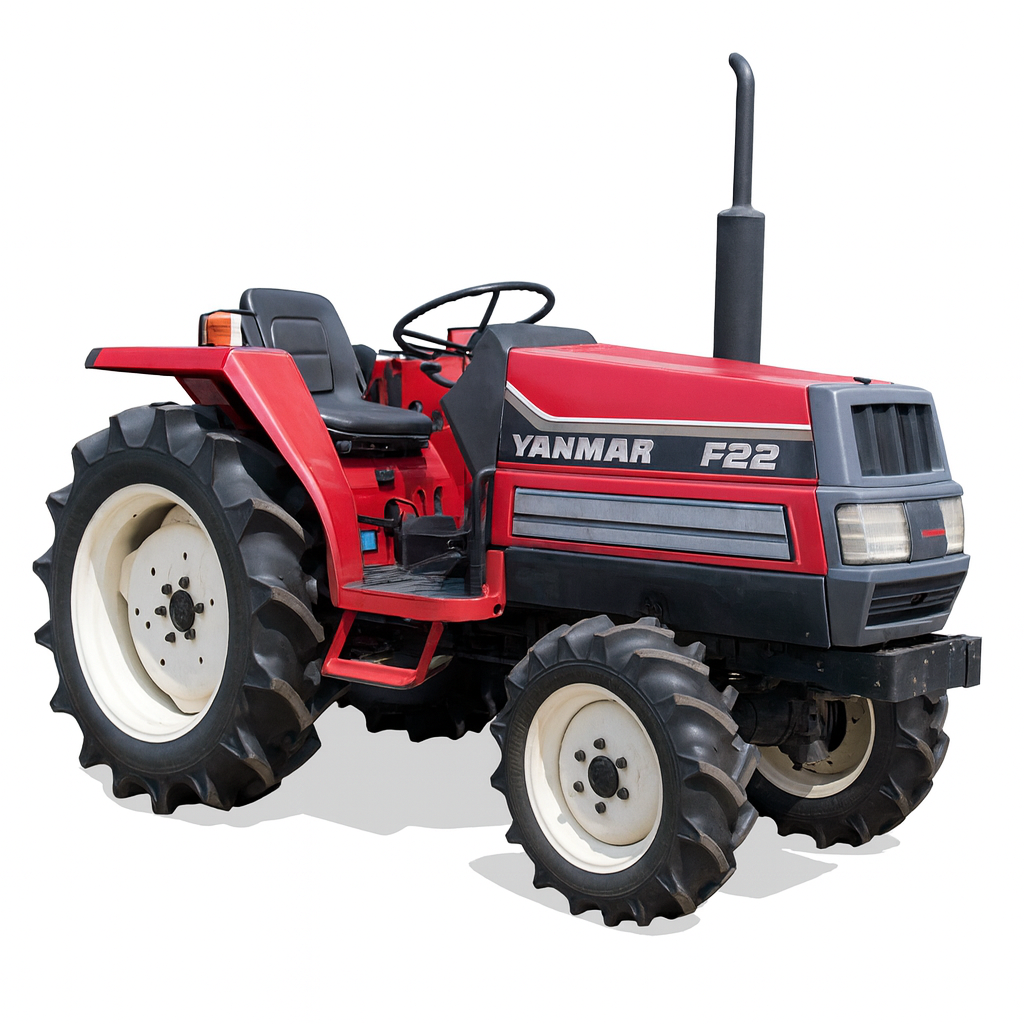

Yanmar F22
Yanmar F22 — Super Forte Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1114 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
F222WD gearReference
F22D4WD gearReference
FX222WD power shiftReference
FX22D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine16.4 kWReference
Yanmar 3TNB82UReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke82 x 86 mmReference
Power16.4 kWReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears, plus reverse, in three ranges.Reference
Dimensions
Weight1114 kgReference
Length287 cmReference
Width124 cmReference
Height190 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
