Tractor · 1987Unverified

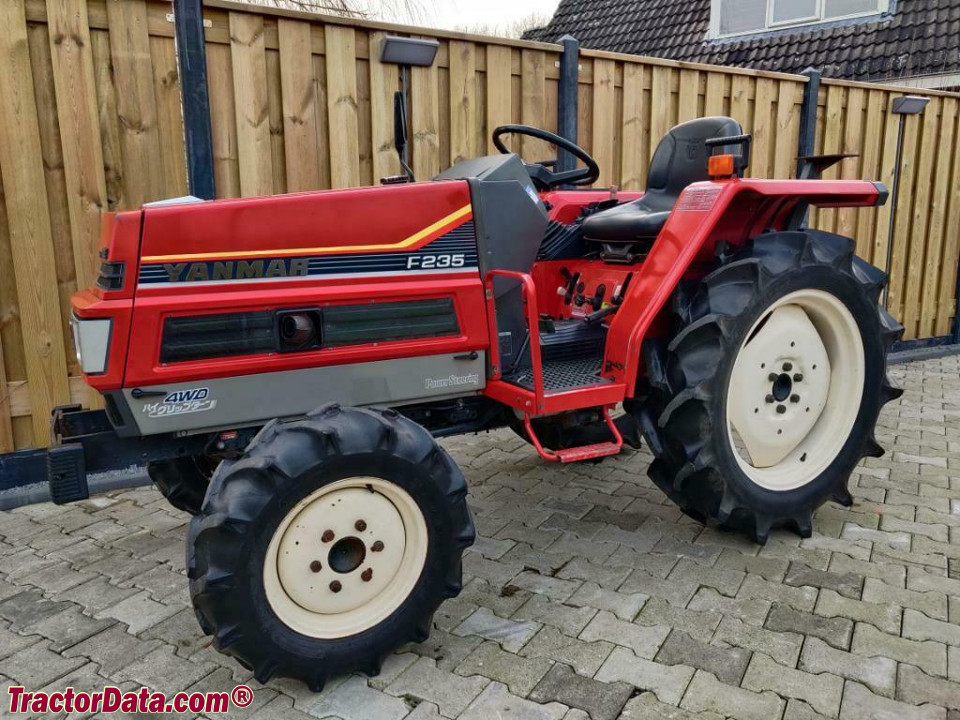

Yanmar F235
Yanmar F235 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
2072 to 2249 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
F2352WD gearReference
F235D4WD gearReference
FX2352WD power shiftReference
FX235D4WD power shiftReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine16.9 kWReference
Yanmar 3TNB84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 88 mmReference
Power16.9 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
9-speed gearReference
18-speed creeperReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears in three ranges.Reference
TypecreeperReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM574@2500Reference
Engine RPM698@2500Reference
Engine RPM958@2500Reference
Engine RPM1293@2500Reference
Dimensions
2WD Wheelbase151 cmReference
4WD Wheelbase152 cmReference
Weight2072 to 2249 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length283 cmReference
Width123 cmReference
Height147 cmReference
2WD Weight939 kgReference
4WD Weight1020 kgReference
2WD Ground clearance33 cmReference
4WD Ground clearance29 cmReference
2WD Front tread99 cmReference
4WD Front tread102 cmReference
Rear tread97/108 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps16Reference
Battery volts12Reference
Battery AH75Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
