Tractor · 1983Unverified

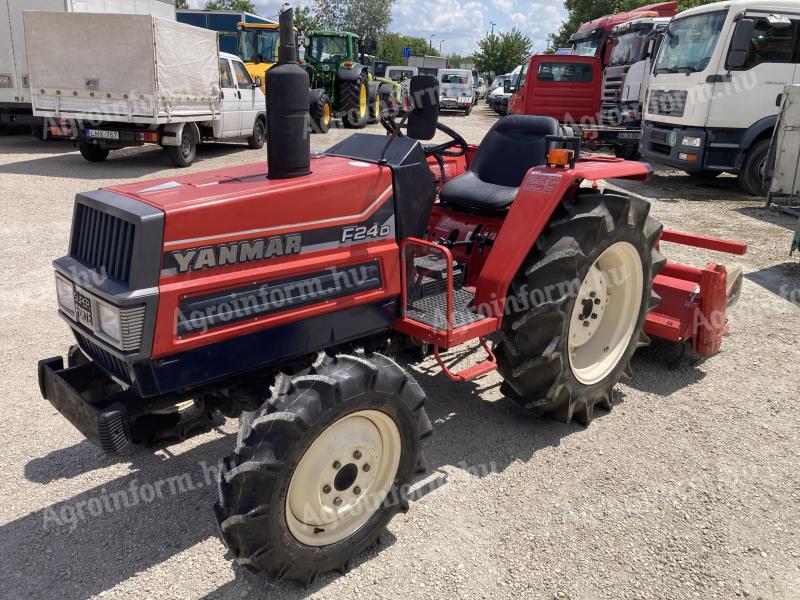

Yanmar F24
Yanmar F24 — Super Forte Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1189 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
F242WD gearReference
F24D4WD gearReference
FX242WD power shiftReference
FX24D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine17.9 kWReference
Yanmar 3TN84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power17.9 kWReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Three gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Rear PTO Type540/700/950/1300Reference
Dimensions
Weight1189 kgReference
Length287 cmReference
Width132 cmReference
Height193 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
