Tractor · 1987Unverified

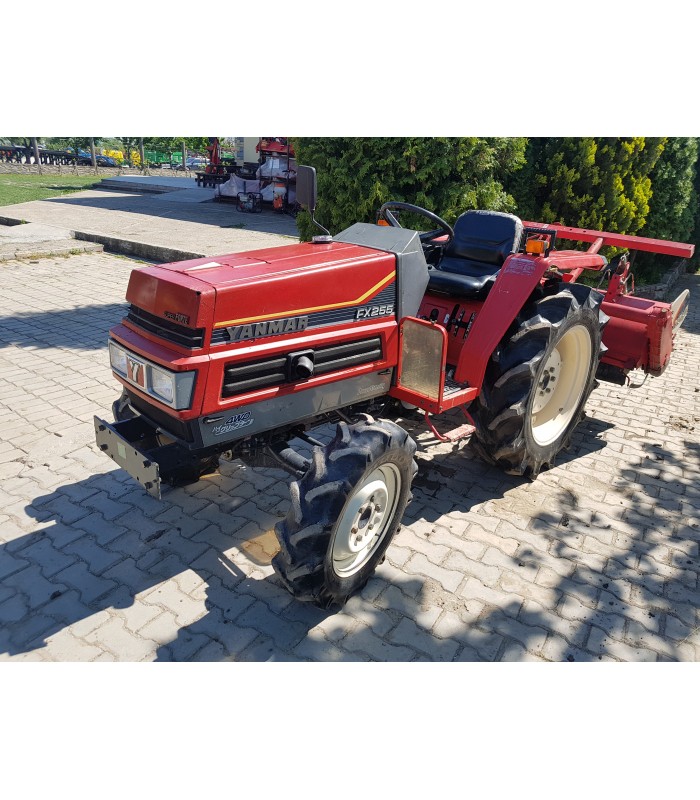

Yanmar F255

Name: Yanmar F255
Brand: Yanmar

Yanmar F255 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.

The Yanmar F255 is a compact tractor with a rated output of 25 hp, falling into its class as one of the smaller options. It was manufactured from 1987 to 1992. The model features a 3-cylinder diesel liquid-cooled engine, paired with a powershift transmission delivering four-wheel drive. Its listed weight is between 2183 and 2348 pounds, making it suitable for land management tasks of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

2183 to 2348 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

25 hp

Recorded weight

990 kg

Transmissions

9-speed gear

Production years

1987-1992

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

F2552WD gearReference

F255D4WD gearReference

FX2552WD power shiftReference

FX255D4WD power shiftReference

Engine

Yanmar 1.5L 3-cyl dieselReference

Fuel tank25.0 LReference

Engine18.4 kWReference

Yanmar 3TNB84Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 88 mmReference

Power18.4 kWReference

Rated RPM2500Reference

Starter volts12Reference

Transmission

9-speed gearReference

18-speed creeperReference

TypegearReference

Gears9 forward and 3 reverseReference

Three gears in three ranges.Reference

TypecreeperReference

Gears18 forward and 6 reverseReference

PTO & Hydraulics

Rear TypeJIS1Reference

Rear PTO Type540 (1.375)Reference

Engine RPM574@2500Reference

Engine RPM698@2500Reference

Engine RPM956@2500Reference

Engine RPM1293@2500Reference

Dimensions

2WD Wheelbase151 cmReference

4WD Wheelbase152 cmReference

Weight2183 to 2348 poundsReference

Front tire5.00-15Reference

2WD Rear tire11.2-24Reference

2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference

4WD Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference

Length283 cmReference

Width132 cmReference

Height150 cmReference

2WD Weight990 kgReference

4WD Weight1065 kgReference

2WD Ground clearance34 cmReference

4WD Ground clearance32 cmReference

2WD Front tread99 cmReference

4WD Front tread105 cmReference

Rear tread102 to 132 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps16Reference

Battery volts12Reference

Battery AH75Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
