Tractor · 1989Unverified

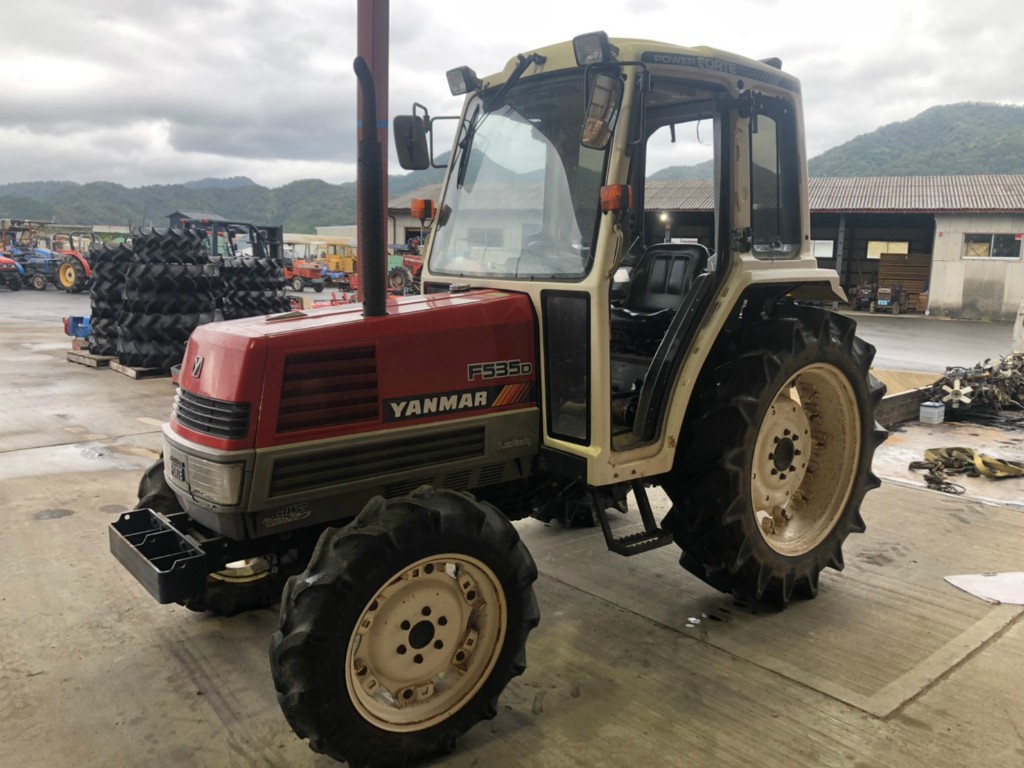

Yanmar F535
Yanmar F535 — Power Forte Series · 50 hp. Reference specifications; pending source verification.
The Yanmar F535 is a compact tractor rated at 50 hp, suitable for a range of tasks. Manufactured from 1989 to 1998, it is powered by a 3-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a 9-speed gearbox. The listed weight of the tractor is 1940 kg, making it suitable for areas of approximately up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
1940 kg
Catalogue coverage
Variants represented
2
Richest spec table
51 rows
Recorded power
50 hp
Recorded weight
1940 kg
Transmissions
9-speed
Production years
1989-1998
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Four-post ROPS. Cab optional.Reference
Engine
Yanmar 2.6L 3-cyl dieselReference
Fuel tank62.5 LReference
Engine39.0 kWReference
Yanmar 3TN100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke100 x 110 mmReference
Power39.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.3 LReference
Coolant capacity8.0 LReference
Transmission
9-speedReference
24-speed shuttleReference
Gears9 forward and 3 reverseReference
Three gears, plus reverse, in three ranges. Additional creeper doubles the number of available gears.Reference
TypeshuttleReference
Gears24 forward and reverseReference
ClutchReverse speeds are 8% slower than forward.Reference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
Pump flow31.4 lpmReference
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM549@2600Reference
Engine RPM676@2600Reference
Engine RPM798@2600Reference
Engine RPM1009@2600Reference
Dimensions
Wheelbase199 cmReference
Weight1940 kgReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length350 cmReference
Width164 cmReference
Height235 cmReference
Ground clearance36 cmReference
Front tread135 cmReference
Rear tread129 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
