Tractor · 1991Unverified

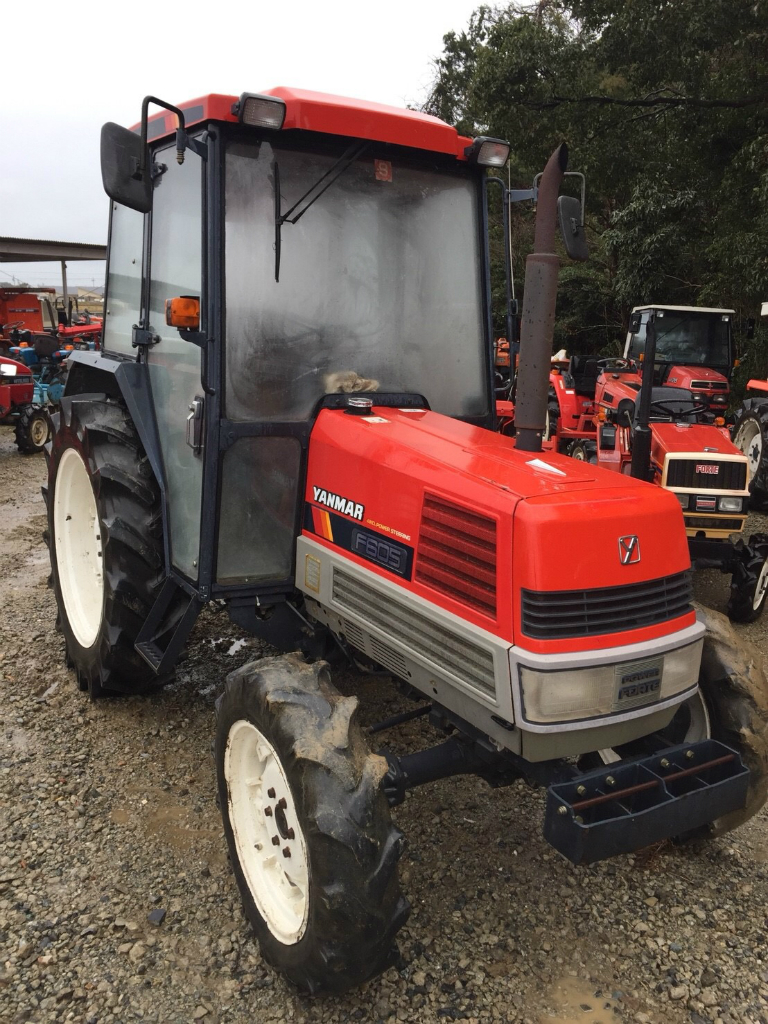

Yanmar F605
Yanmar F605 — Power Forte Series · 59 hp. Reference specifications; pending source verification.
The Yanmar F605 is a tractor with a rated power output of 59 hp, categorising it at the lower end of its class. It was manufactured between 1991 and 1998. The tractor is equipped with a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 9-speed gearbox. Its operating weight is listed at 1960 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
1960 kg
Catalogue coverage
Variants represented
2
Richest spec table
50 rows
Recorded power
59 hp
Recorded weight
1960 kg
Transmissions
9-speed
Production years
1991-1998
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Four-post ROPS. Cab optional.Reference
Engine
Yanmar 2.6L 3-cyl dieselReference
Fuel tank62.5 LReference
Engine44.1 kWReference
Yanmar 3TN100TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke100 x 110 mmReference
Power44.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.3 LReference
Coolant capacity8.0 LReference
Transmission
9-speedReference
24-speed shuttleReference
Gears9 forward and 3 reverseReference
Three gears, plus reverse, in three ranges. Additional creeper doubles the number of available gears.Reference
TypeshuttleReference
Gears24 forward and reverseReference
ClutchReverse speeds are 8% slower than forward.Reference
PTO & Hydraulics
Pump flow31.4 lpmReference
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM549@2600Reference
Engine RPM676@2600Reference
Engine RPM798@2600Reference
Engine RPM1009@2600Reference
Dimensions
Wheelbase199 cmReference
Weight1960 kgReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length350 cmReference
Width164 cmReference
Height235 cmReference
Ground clearance37 cmReference
Front tread135 cmReference
Rear tread129 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
