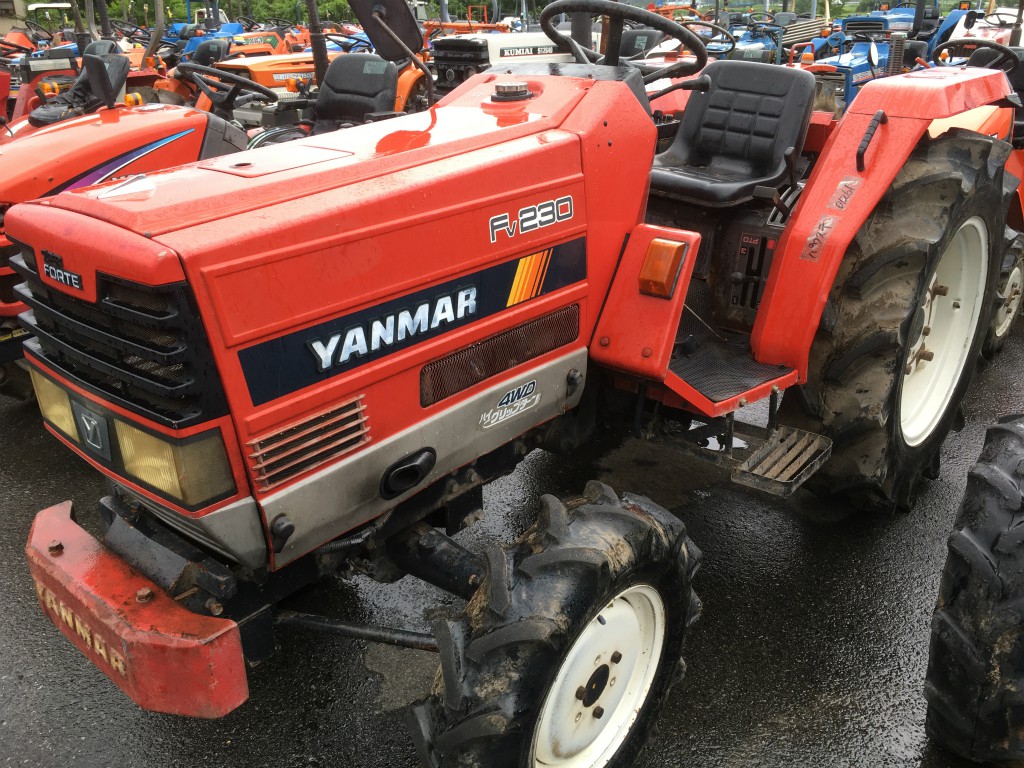

The Yanmar FV-230 is a compact tractor model rated at 23 hp, featuring a 3-cylinder diesel liquid-cooled engine. Manufactured from 1991 to 1998, it is equipped with a powershift transmission and four-wheel drive. The FV-230 is suitable for tasks covering around 200 acres. Specifications for the FV-230 are detailed.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Catalogue coverage
Variants represented
2
Richest spec table
22 rows
Recorded power
23 hp
Transmissions
24-speed four-speed power shift
Production years
1991-1998
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station.Reference
Engine
Yanmar 1.5L 3-cyl dieselReference
Engine17.3 kWReference
Yanmar 3TNV84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power17.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears24 forward and reverseReference
Four power shift gears in three, ranges, plus additional creeper range.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
