Tractor · 1991Unverified

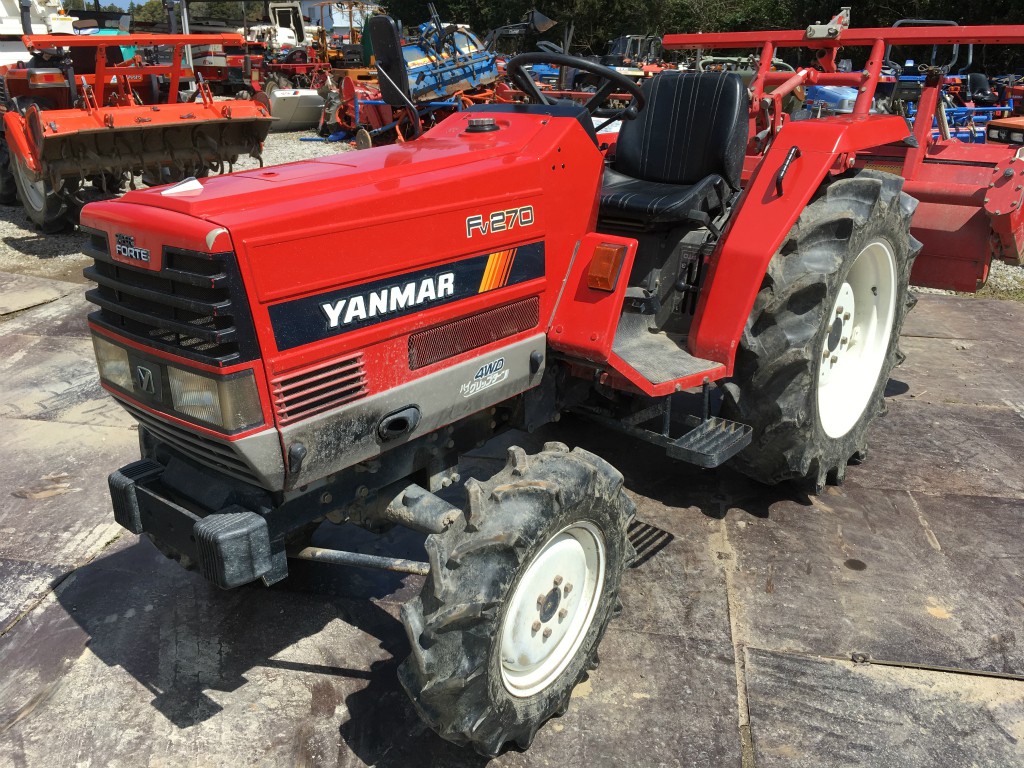

Yanmar FV-270
Yanmar FV-270 — FV Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station.Reference
Engine
Yanmar 1.5L 3-cyl dieselReference
Engine20.2 kWReference
Yanmar 3TNV84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power20.2 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears24 forward and reverseReference
Four power shift gears in three, ranges, plus additional creeper range.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
