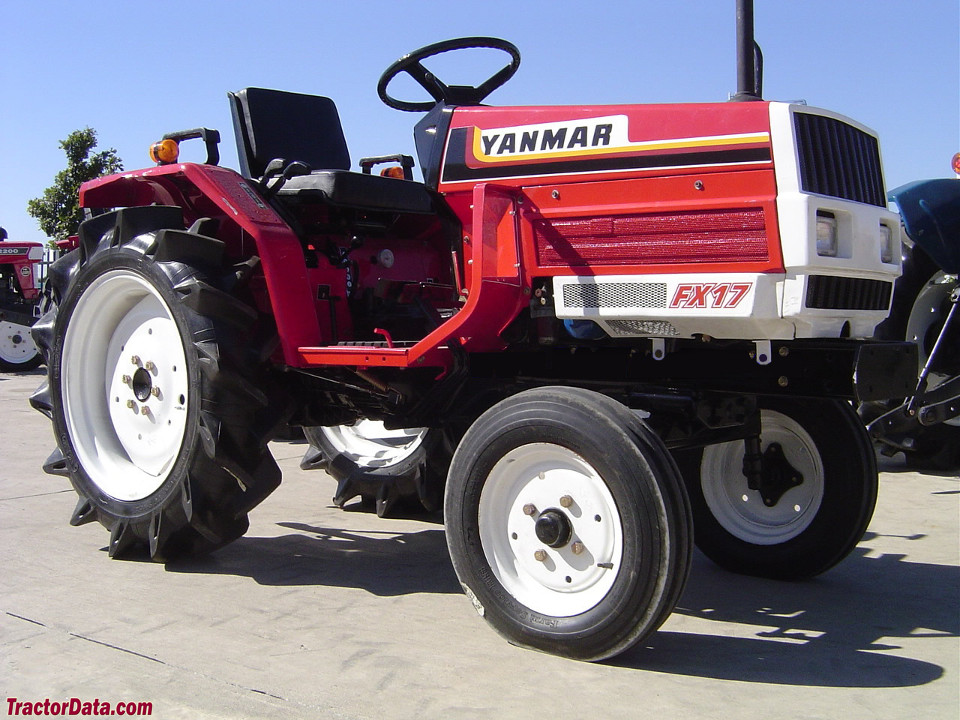

The Yanmar FX17 is a compact tractor with a rating of 17 hp, placing it among the smaller options in its class. Manufactured from 1983 to 1985, this model features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. It is suitable for tasks involving areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Catalogue coverage
Variants represented
2
Richest spec table
20 rows
Recorded power
17 hp
Transmissions
9-speed three-speed power shift
Production years
1983-1985
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
FX172WDReference
FX17D4WDReference
Engine
Yanmar 1.0L 3-cyl dieselReference
Engine12.7 kWReference
YanmarReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke75 x 70 mmReference
Power12.7 kWReference
Starter volts12Reference
Transmission
9-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears9 forward and 3 reverseReference
Three power shift gears, plus reverse, in three ranges.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
