Tractor · 1987Unverified

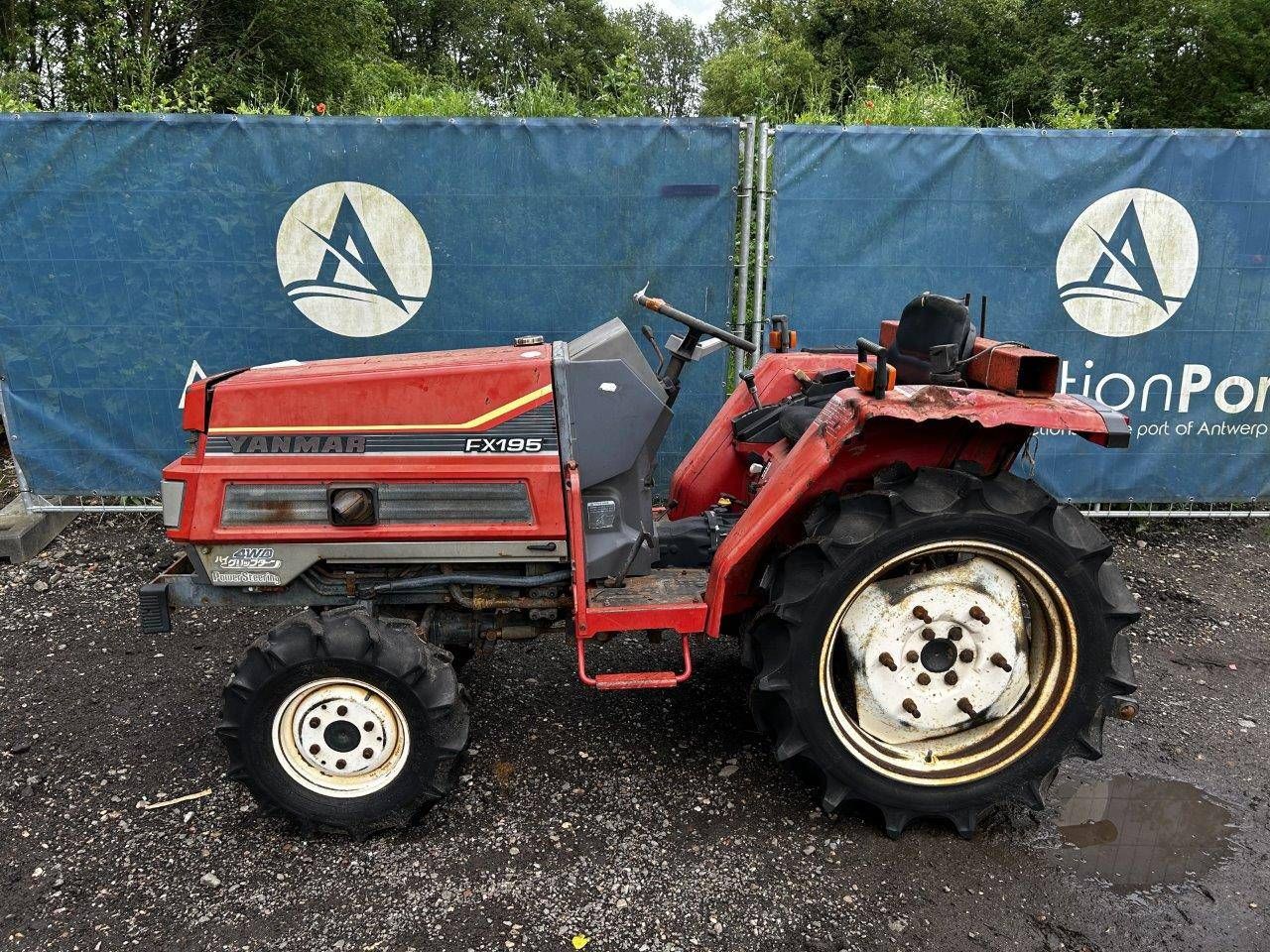

Yanmar FX195
Yanmar FX195 — Compact Utility tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1786 to 1918 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
F1952WD gearReference
F195D4WD gearReference
FX1952WD power shiftReference
FX195D4WD power shiftReference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine13.9 kWReference
Yanmar 3TNB80Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 88 mmReference
Power13.9 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
9-speed partial power shiftReference
creeperReference
Typepartial power shiftReference
Gears9 forward and 3 reverseReference
Three gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM571@2500Reference
Engine RPM785@2500Reference
Engine RPM1209@2500Reference
Dimensions
Wheelbase149 cmReference
Weight1786 to 1918 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-24Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-24Reference
4WD Standard tires (ag)Front: 6.00-12. Rear: 8.3-24Reference
Length278 cmReference
Width118 cmReference
Height146 cmReference
2WD Weight810 kgReference
4WD Weight870 kgReference
2WD Ground clearance33 cmReference
4WD Ground clearance27 cmReference
2WD Front tread84 cmReference
4WD Front tread87 cmReference
Rear tread93/105 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps16Reference
Battery volts12Reference
Battery AH75Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
