Tractor · 1983Unverified

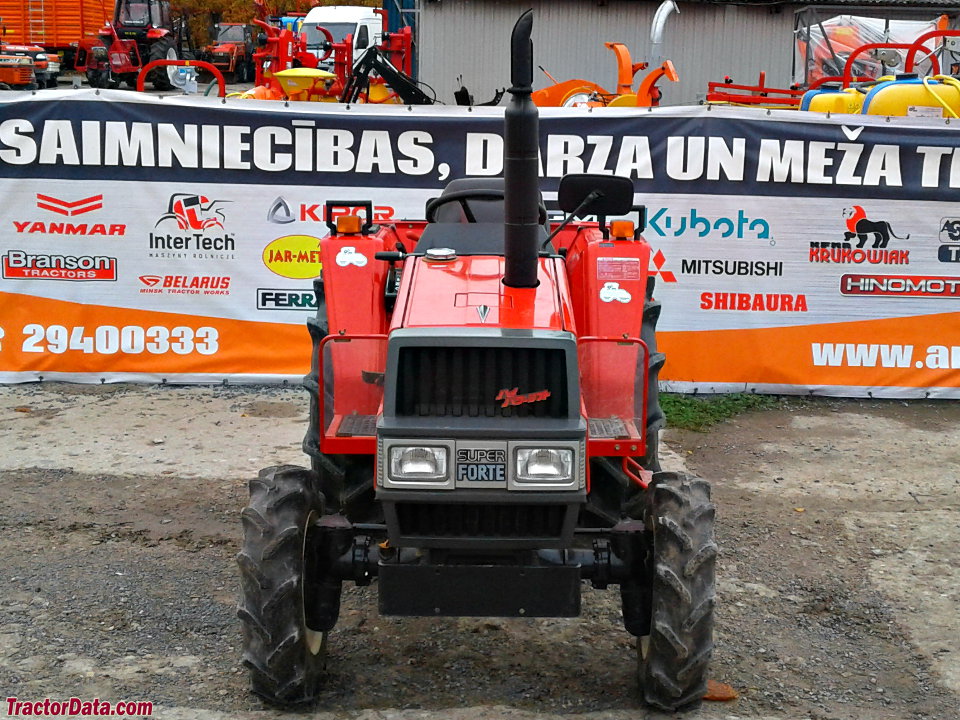

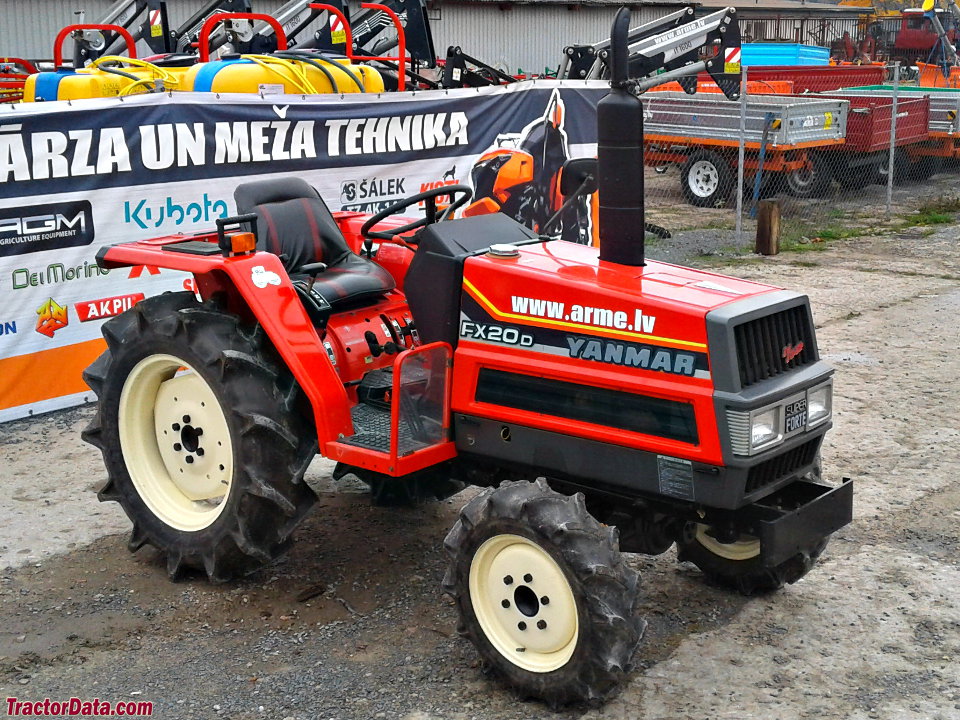

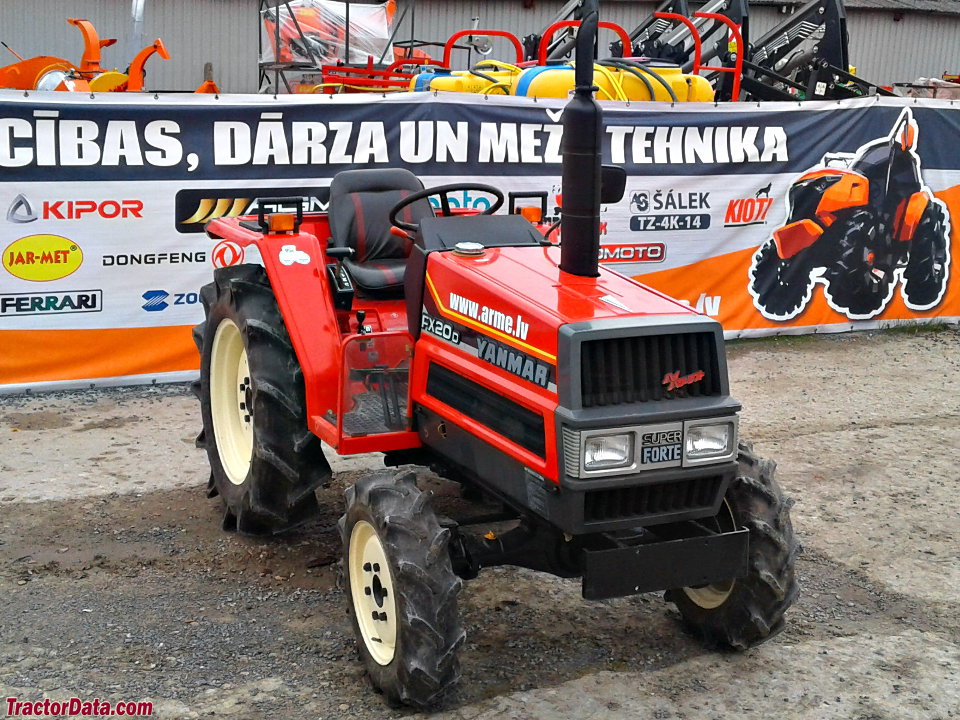

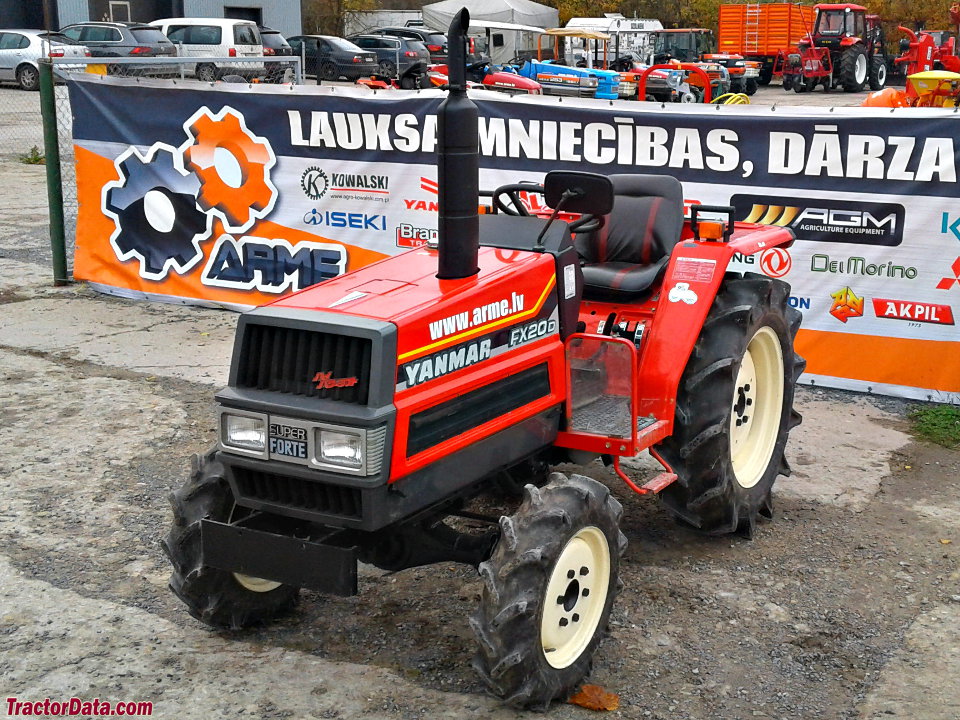

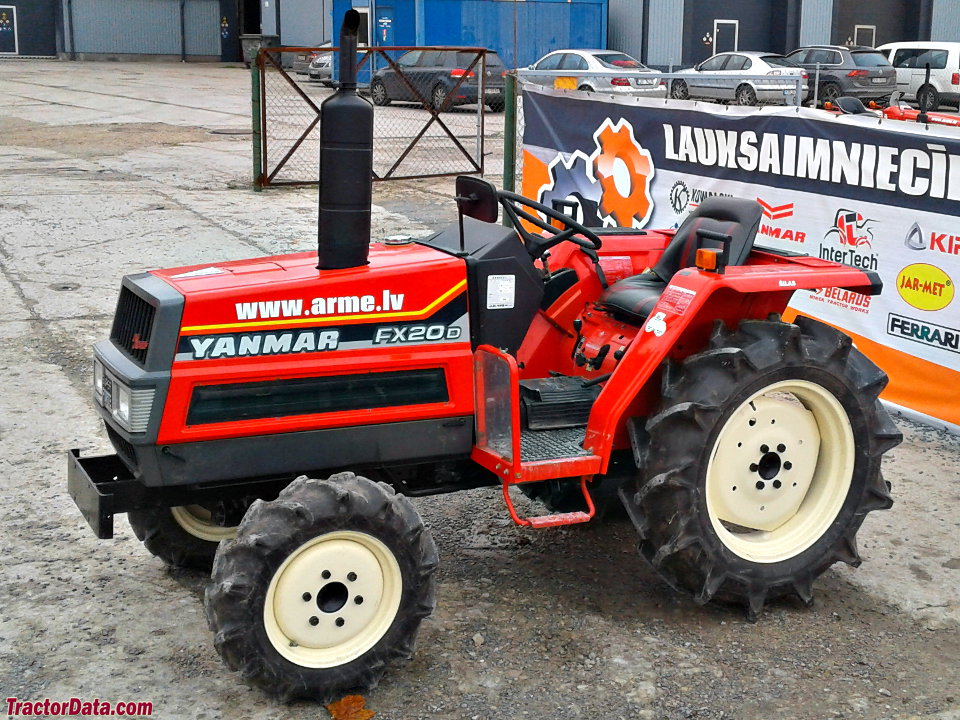

Yanmar FX20
Yanmar FX20 — Super Forte Series · 20 hp. Reference specifications; pending source verification.
The Yanmar FX20 is a tractor with a rating of approximately 20 hp, positioning it at the lower end of its class in terms of power output. Produced from 1983 to 1987, this model is equipped with a 3-cylinder diesel liquid-cooled engine and a four-wheel drive system paired with a powershift transmission. The Yanmar FX20 has an operating weight of 1105 kg, suitable for operations covering up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1105 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
20 hp
Recorded weight
1105 kg
Transmissions
9-speed three-speed power shift
Production years
1983-1987
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
F202WD gearReference
F20D4WD gearReference
FX202WD power shiftReference
FX20D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine14.9 kWReference
Yanmar 3TN82Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke82 x 86 mmReference
Power14.9 kWReference
Starter volts12Reference
Transmission
9-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears9 forward and 3 reverseReference
Three power shift gears, plus reverse, in three ranges.Reference
Dimensions
Weight1105 kgReference
Length287 cmReference
Width124 cmReference
Height187 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
