Tractor · 1987Unverified

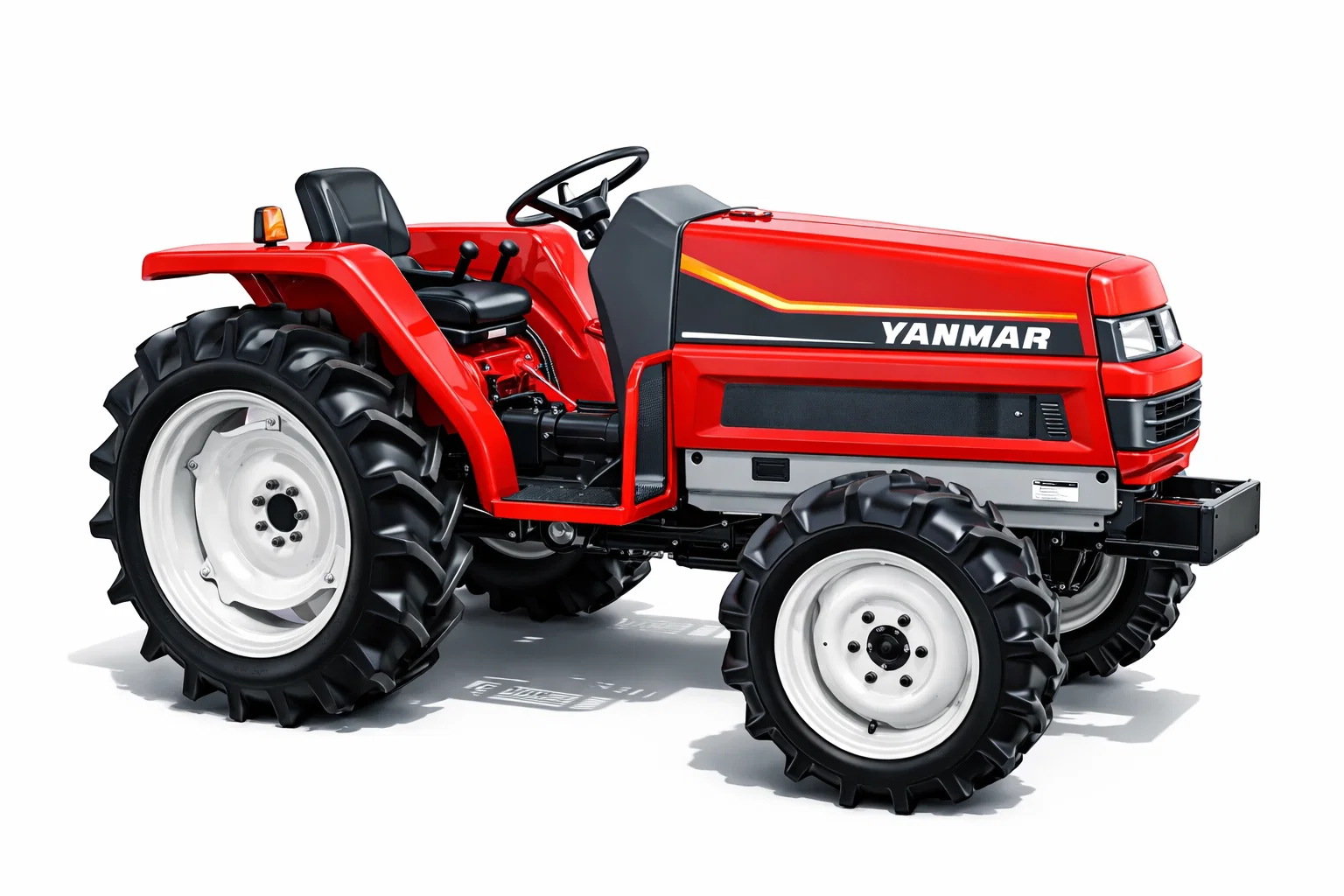

Yanmar FX215
Yanmar FX215 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
2050 to 2238 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
F2152WD gearReference
F215D4WD gearReference
FX2152WD power shiftReference
FX215D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine15.4 kWReference
Yanmar 3TNB82Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke82 x 88 mmReference
Power15.4 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
9-speed partial power shiftReference
Typepartial power shiftReference
Gears9 forward and 3 reverseReference
Three gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM574@2500Reference
Engine RPM698@2500Reference
Engine RPM958@2500Reference
Engine RPM1293@2500Reference
Dimensions
2WD Wheelbase151 cmReference
4WD Wheelbase152 cmReference
Weight2050 to 2238 poundsReference
Front tire4.00-12Reference
2WD Rear tire9.5-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 9.5-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length283 cmReference
Width123 cmReference
Height144 cmReference
2WD Weight929 kgReference
4WD Weight1015 kgReference
2WD Ground clearance29 cmReference
4WD Ground clearance27 cmReference
2WD Front tread90 cmReference
4WD Front tread102 cmReference
Rear tread97/108 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps16Reference
Battery volts12Reference
Battery AH75Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
