Tractor · 1983Unverified

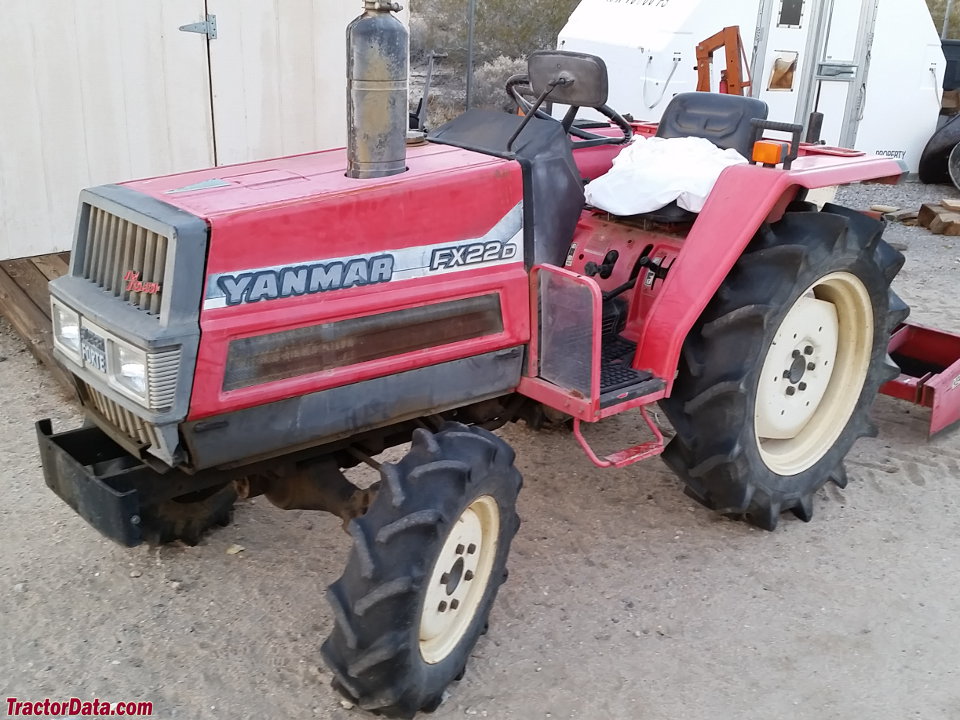

Yanmar FX22

Name: Yanmar FX22
Brand: Yanmar

Yanmar FX22 — Super Forte Series · 22 hp. Reference specifications; pending source verification.

The Yanmar FX22 is a tractor with a rated engine power output of 22 hp, positioning it at the lower end of its class in terms of power. This model was manufactured from 1983 to 1987. The tractor features a 3-cylinder diesel, liquid-cooled engine, and is equipped with a powershift transmission and four-wheel drive. Its operating weight is listed as 1124 kg, making it suitable for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Weight

1124 kg

Catalogue coverage

Variants represented

Richest spec table

28 rows

Recorded power

22 hp

Recorded weight

1124 kg

Transmissions

9-speed three-speed power shift

Production years

1983-1987

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

F222WD gearReference

F22D4WD gearReference

FX222WD power shiftReference

FX22D4WD power shiftReference

Engine

Yanmar 1.4L 3-cyl dieselReference

Engine16.4 kWReference

Yanmar 3TNB82Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke82 x 86 mmReference

Power16.4 kWReference

Starter volts12Reference

Transmission

9-speed three-speed power shiftReference

Typethree-speed power shiftReference

Gears9 forward and 3 reverseReference

Three power shift gears, plus reverse, in three ranges.Reference

Dimensions

Weight1124 kgReference

Length287 cmReference

Width124 cmReference

Height190 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
