Tractor · 1987Unverified

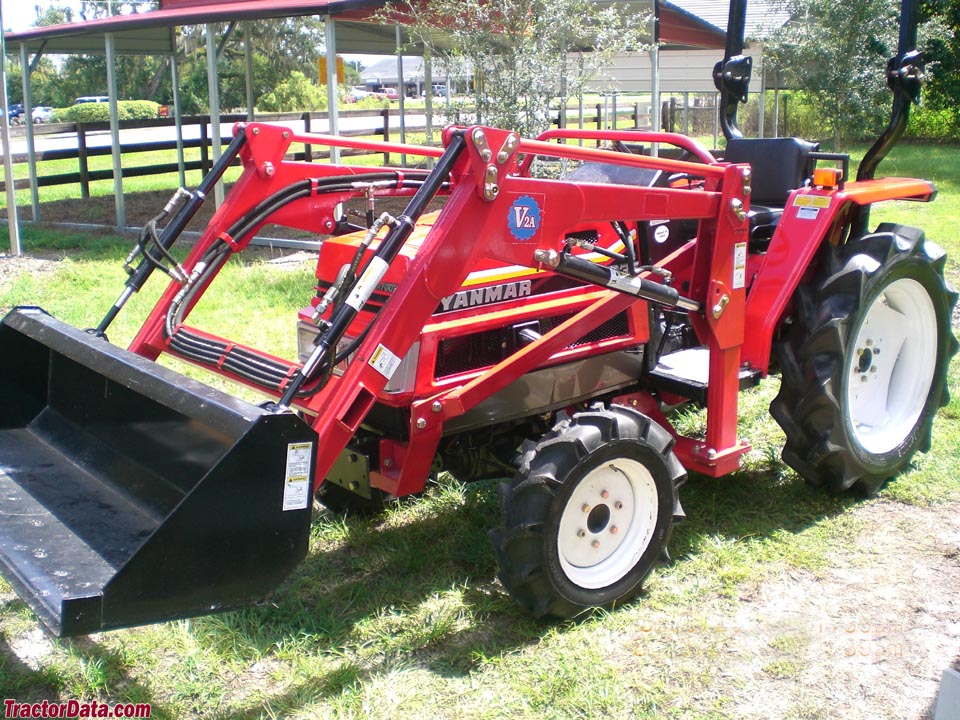

Yanmar FX235

Name: Yanmar FX235
Brand: Yanmar

Yanmar FX235 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.

The Yanmar FX235 is a compact tractor with a rating of 23 hp, making it a suitable option for smaller-scale operations. Manufactured from 1987 to 1992, this model features a 3-cylinder diesel liquid-cooled engine and powershift transmission, driving all four wheels. The tractor's listed weight is 2094 to 2271 pounds, and it is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

2094 to 2271 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

23 hp

Recorded weight

949 kg

Transmissions

9-speed partial power shift

Production years

1987-1992

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

F2352WD gearReference

F235D4WD gearReference

FX2352WD power shiftReference

FX235D4WD power shiftReference

Engine

Yanmar 1.5L 3-cyl dieselReference

Fuel tank25.0 LReference

Engine16.9 kWReference

Yanmar 3TNB84Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 88 mmReference

Power16.9 kWReference

Rated RPM2500Reference

Starter volts12Reference

Transmission

9-speed partial power shiftReference

18-speed creeperReference

Typepartial power shiftReference

Gears9 forward and 3 reverseReference

Three gears, plus reverse, in three ranges.Reference

TypecreeperReference

Gears18 forward and 6 reverseReference

PTO & Hydraulics

Rear TypeJIS1Reference

Rear PTO Type540 (1.375)Reference

Engine RPM574@2500Reference

Engine RPM698@2500Reference

Engine RPM958@2500Reference

Engine RPM1293@2500Reference

Dimensions

2WD Wheelbase151 cmReference

4WD Wheelbase152 cmReference

Weight2094 to 2271 poundsReference

Front tire4.00-15Reference

2WD Rear tire9.5-24Reference

2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference

4WD Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference

Length283 cmReference

Width123 cmReference

Height147 cmReference

2WD Weight949 kgReference

4WD Weight1030 kgReference

2WD Ground clearance33 cmReference

4WD Ground clearance29 cmReference

2WD Front tread99 cmReference

4WD Front tread102 cmReference

Rear tread97/108 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps16Reference

Battery volts12Reference

Battery AH75Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
