Tractor · 1983Unverified

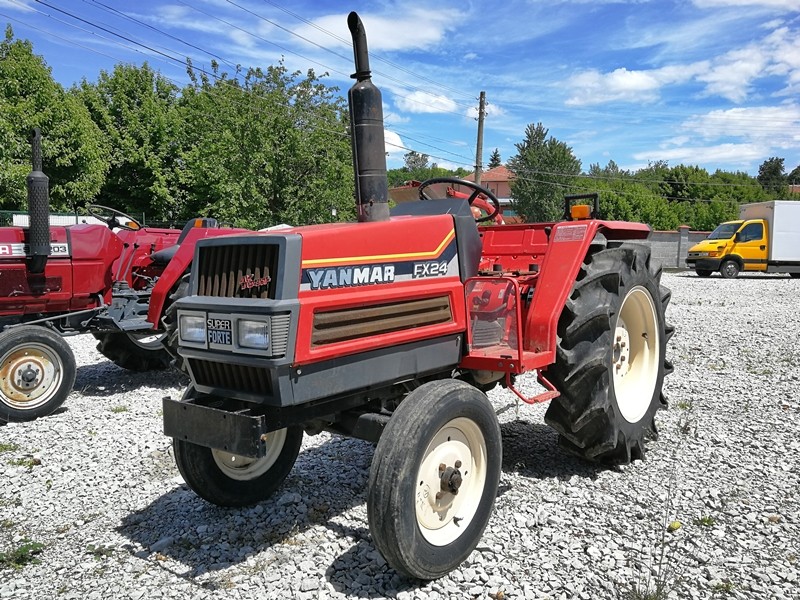

Yanmar FX24
Yanmar FX24 — Super Forte Series · 24 hp. Reference specifications; pending source verification.
The Yanmar FX24 is a tractor model with a rated power output of 24 hp, categorising it as a lighter-class tractor. It was produced from 1983 to 1987. The model features a 3-cylinder diesel liquid-cooled engine and a four-wheel drive system with a powershift transmission. The tractor's operating weight is listed as 1189 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1189 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
24 hp
Recorded weight
1189 kg
Transmissions
9-speed three-speed power shift
Production years
1983-1987
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
F242WD gearReference
F24D4WD gearReference
FX242WD power shiftReference
FX24D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine17.9 kWReference
Yanmar 3TN84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power17.9 kWReference
Starter volts12Reference
Transmission
9-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Three power shift gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Rear PTO Type540/700/950/1300Reference
Dimensions
Weight1189 kgReference
Length287 cmReference
Width132 cmReference
Height193 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
