Tractor · 1983Unverified

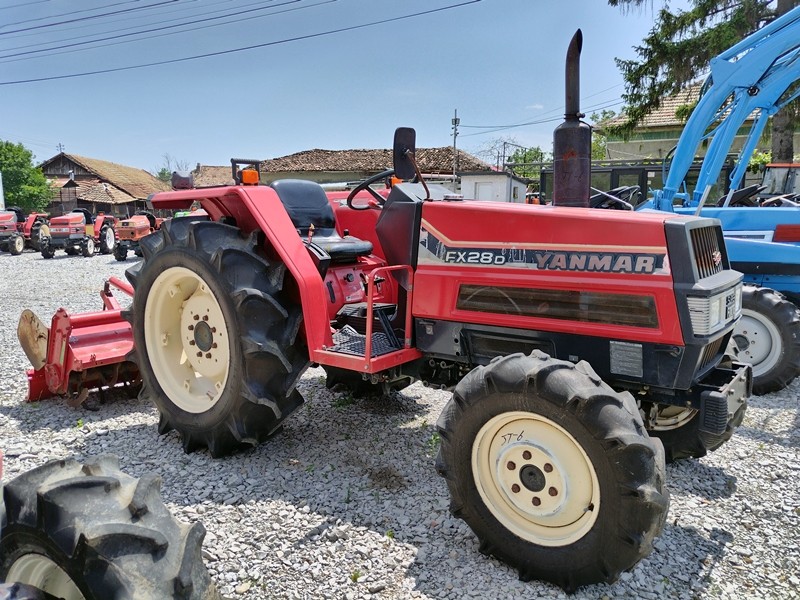

Yanmar FX28
Yanmar FX28 — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1720 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Open operator station.Reference
Variants
FX282WDReference
FX28D4WDReference
Engine
Yanmar 1.6L 4-cyl dieselReference
Engine20.9 kWReference
Yanmar 4TNA78Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke78 x 86 mmReference
Power20.9 kWReference
Starter volts12Reference
Transmission
12-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears12 forward and 6 reverseReference
Four power-shift gears, plus two reverse, in three ranges.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1720 kgReference
Length327 cmReference
Width147 cmReference
Height198 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
