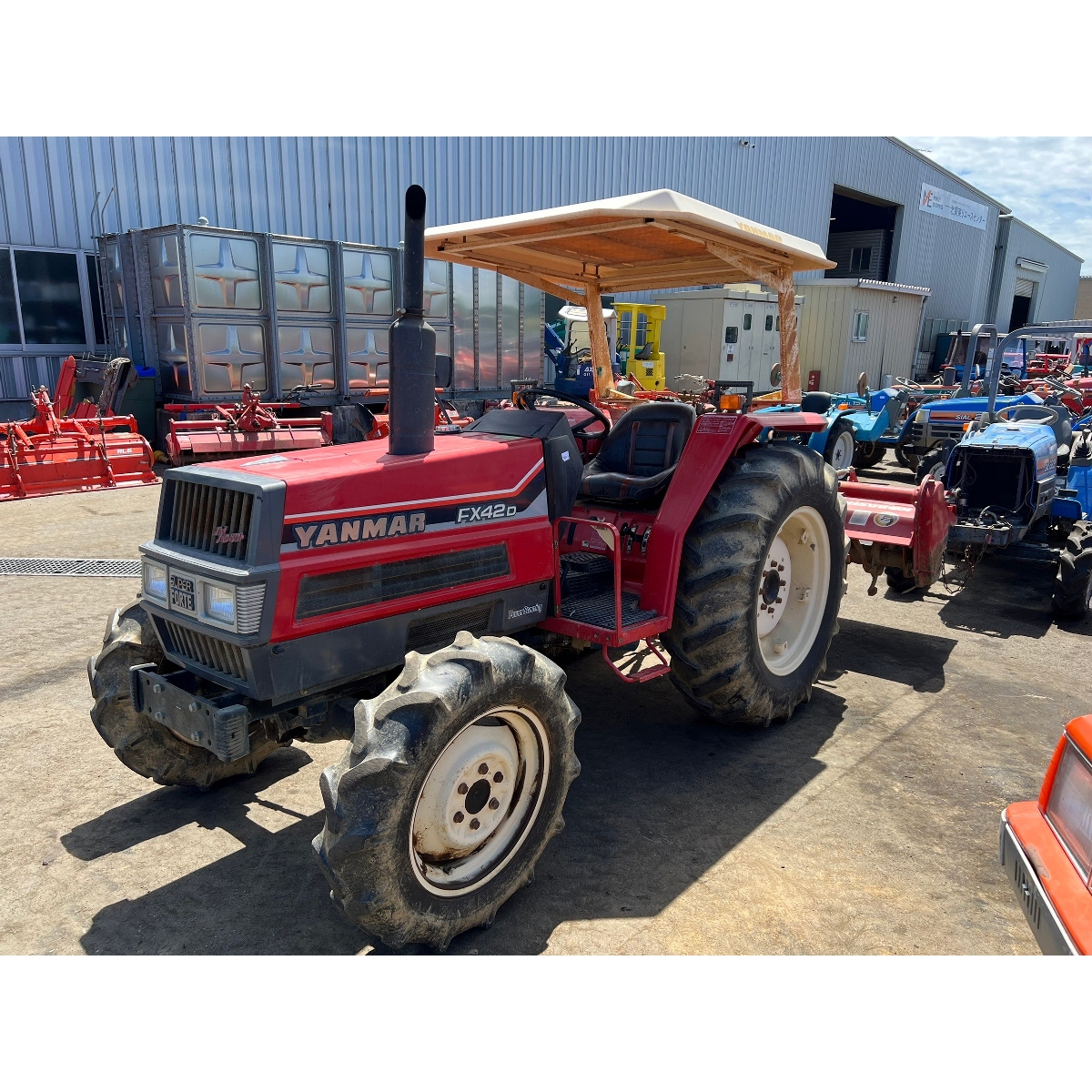

The Yanmar FX42D is a compact tractor model, rated at 42 hp. It features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The tractor's weight is 1769 kg, making it suitable for tasks covering up to 200 acres. Production of the FX42D spanned the years 1983 to 1986.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1769 kg
Catalogue coverage
Variants represented
2
Richest spec table
23 rows
Recorded power
42 hp
Recorded weight
1769 kg
Production years
1983-1986
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Utility tractorReference
Four-wheel driveReference
Open operator station.Reference
Variants
FX422WDReference
FX42D4WDReference
Engine
Yanmar 1.6L 4-cyl dieselReference
Engine31.3 kWReference
Yanmar 4TNA78TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke78 x 86 mmReference
Power31.3 kWReference
Starter volts12Reference
Dimensions
Weight1769 kgReference
Length330 cmReference
Width149 cmReference
Height198 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Transmission
Transmissionpower shiftReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
