Tractor · 2012Unverified
Yanmar Lx450
Yanmar Lx450 — Lx Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1626 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
Lx450shuttleReference
Lx4500hydroReference
Engine
Yanmar 2.2L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)33.6 kWReference
YanmarReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power (gross)33.6 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.3 LReference
Coolant capacity4.8 LReference
Transmission
12-speed power shuttleReference
TransmissionHydraReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity32.2 LReference
PTO & Hydraulics
Typeopen centerReference
Valves2 to 3Reference
Pump flow34.1 lpmReference
Steering flow25.7 lpmReference
Rear Type1Reference
Controlposition controlReference
Rear lift (at 24"/610mm)1251 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540Reference
Dimensions
Wheelbase189 cmReference
Weight1626 kgReference
Front tire8-16Reference
Rear tire14.9-24Reference
Weight612 kgReference
Ag front8-16Reference
Ag rear14.9-24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf rear44x18-20Reference
Lawn/turf front27/12LL-15Reference
Lawn/turf rear22.5LL-16.1Reference
Industrial front10-16.5Reference
Industrial rear17.5LL-24Reference
Length314 cmReference
Width176 cmReference
Ground clearance38 cmReference

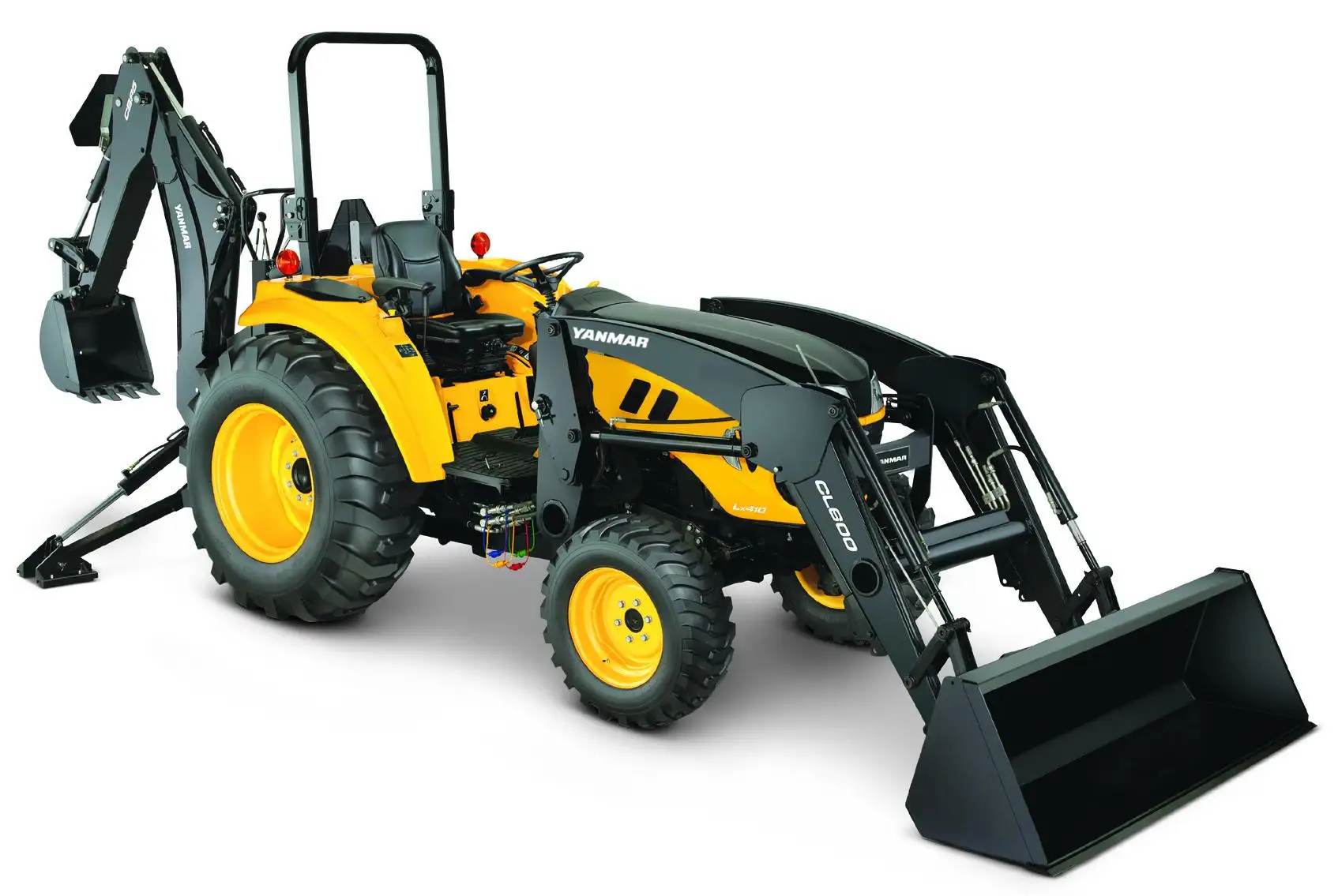

Yanmar Lx450 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Yanmar CB85 Backhoe
Backhoe typeYanmar CB85 BackhoeReference
Digging depth261 cmReference
2-Foot flat digging depth259 cmReference
Reach from pivot360 cmReference
Loading height220 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
