Tractor · 2012Unverified

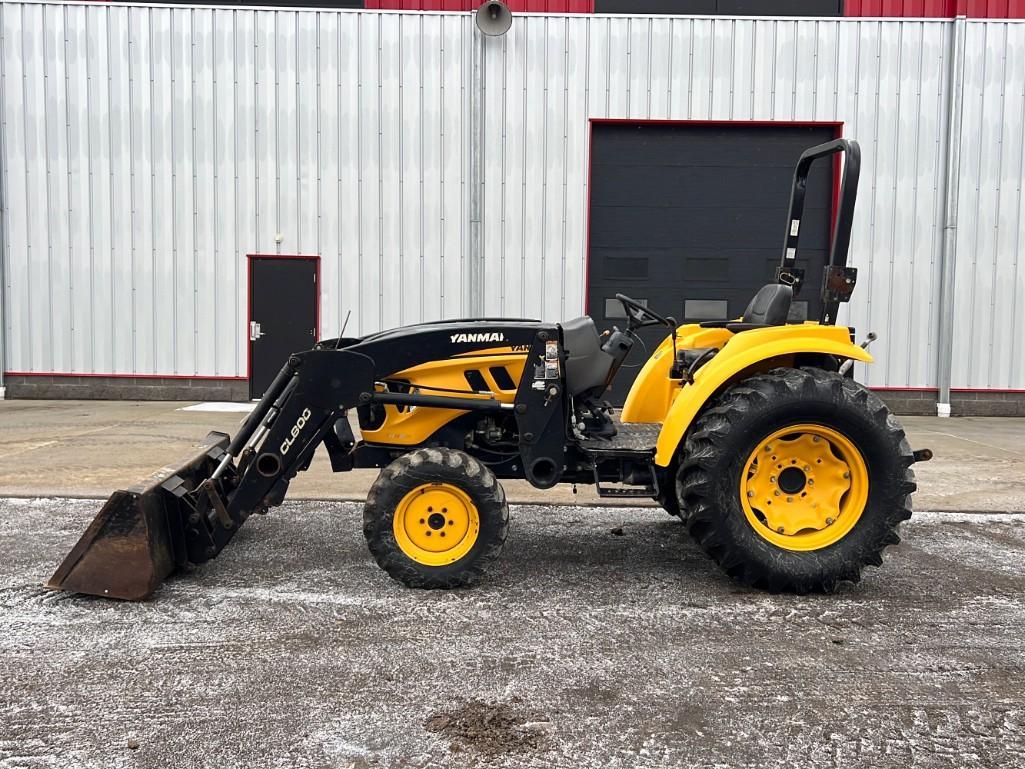

Yanmar Lx4900

Name: Yanmar Lx4900
Brand: Yanmar

Yanmar Lx4900 — Lx Series · 49 hp. Reference specifications; pending source verification.

The Yanmar Lx4900 is a tractor with a rating of approximately 49 hp, positioning it at the lighter end of its class. This model was manufactured in 2012. It features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The tractor has an operating weight of 1641 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

49 hp

Max power

48.5 hp

Weight

1641 kg

Catalogue coverage

Variants represented

Richest spec table

105 rows

Recorded power

49 hp

Recorded weight

1641 kg

Transmissions

hydrostatic

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Final drivesplanetaryReference

Steeringhydraulic powerReference

Wet disc brakesReference

Two-post ROPS.Reference

Variants

Lx490shuttleReference

Lx4900hydroReference

Engine

Yanmar 2.0L 4-cyl dieselReference

Engine (gross)36.2 kWReference

YanmarReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)36.2 kWReference

Fuel systemdirect injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.3 LReference

Coolant capacity5.4 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.307x3.543 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TransmissionSynchroThrottleReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity32.9 LReference

Hydrostatic transmission with three synchronized ranges. Optional cruise control.Reference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : infinite (3-range) F and infinite (3-range) RReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)26.1 kWReference

Typeopen centerReference

Valves2 to 3Reference

Pump flow32.9 lpmReference

Steering flow24.6 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift (at 24"/610mm)1251 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540Reference

Mid PTOoptionalReference

Capacities

Fuel45.0 LReference

Front axle8.8 LReference

Capacity121.7 ciReference

Fuel tank45 LReference

Crankcase oil volume5.62 qtsReference

Dimensions

Wheelbase189 cmReference

Weight1641 kgReference

Front tire8-16Reference

Rear tire14.9-24Reference

Weight612 kgReference

Ag front8-16Reference

Ag rear14.9-24Reference

Lawn/turf front27x10.5-15Reference

Lawn/turf rear44x18-20Reference

Lawn/turf front27x12LL-15Reference

Lawn/turf rear22.5LL-16.1Reference

Industrial front10-16.5Reference

Industrial rear17.5LL-24Reference

Length314 cmReference

Width176 cmReference

Ground clearance42 cmReference

Yanmar Lx4900 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Yanmar CB85 Backhoe

Backhoe typeYanmar CB85 BackhoeReference

Digging depth261 cmReference

2-Foot flat digging depth259 cmReference

Reach from pivot360 cmReference

Loading height220 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1691 kgReference

Dipperstick force1104 kgReference

General

Make & ModelYanmarReference

Cruise controlOptionalReference

Rollover protective structureTwo-post ROPS.Reference

Power

Max Power48.5 hpReference

PTO

PTO Power35 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydraulic powerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves2 to 3 ValvesReference

Steering & Implements flow6.5 gpm (8.7 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Length315 cmReference

Overall Width176.5 cmReference

Overall weight1,641.1 kgReference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
