Tractor · 2025Unverified

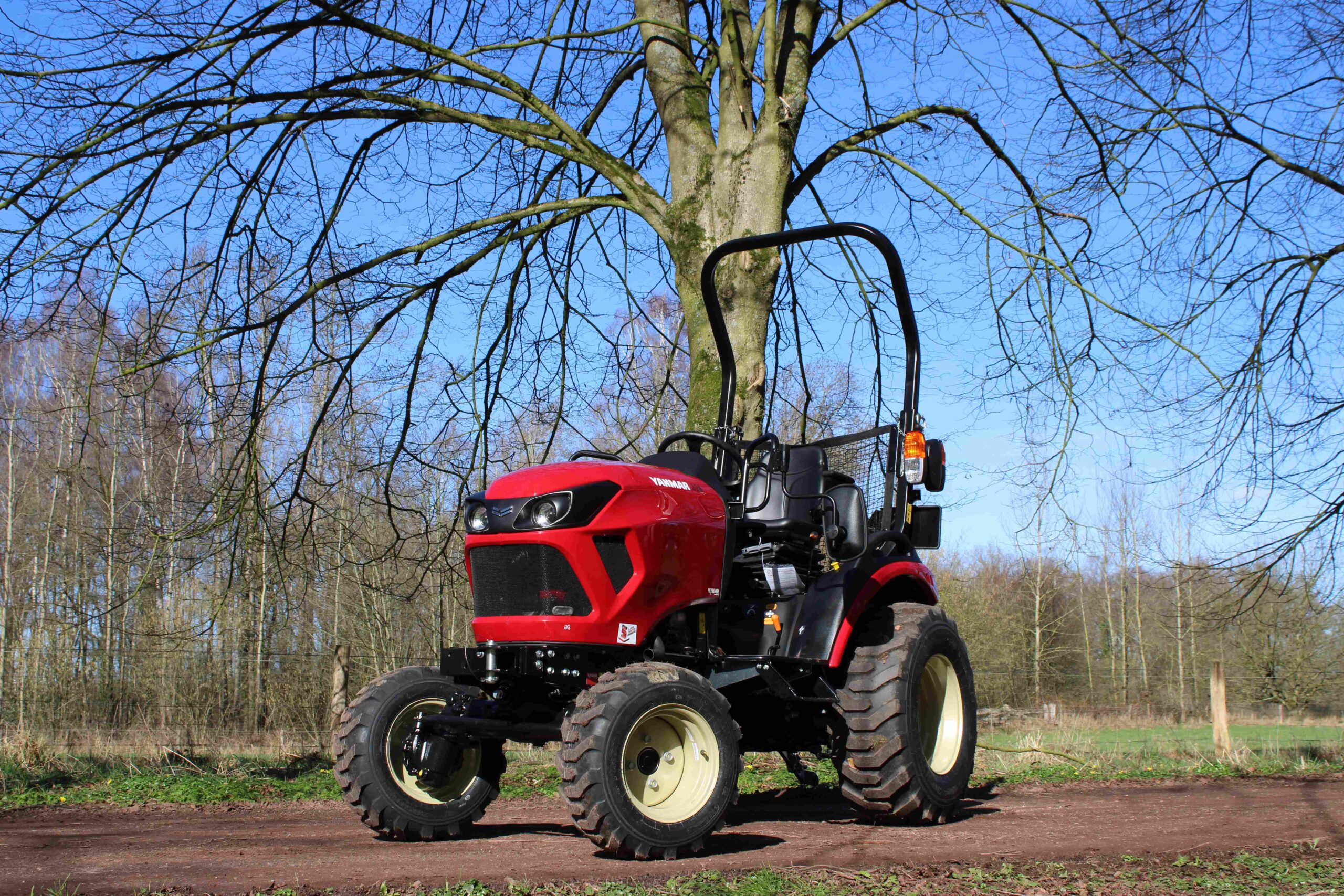

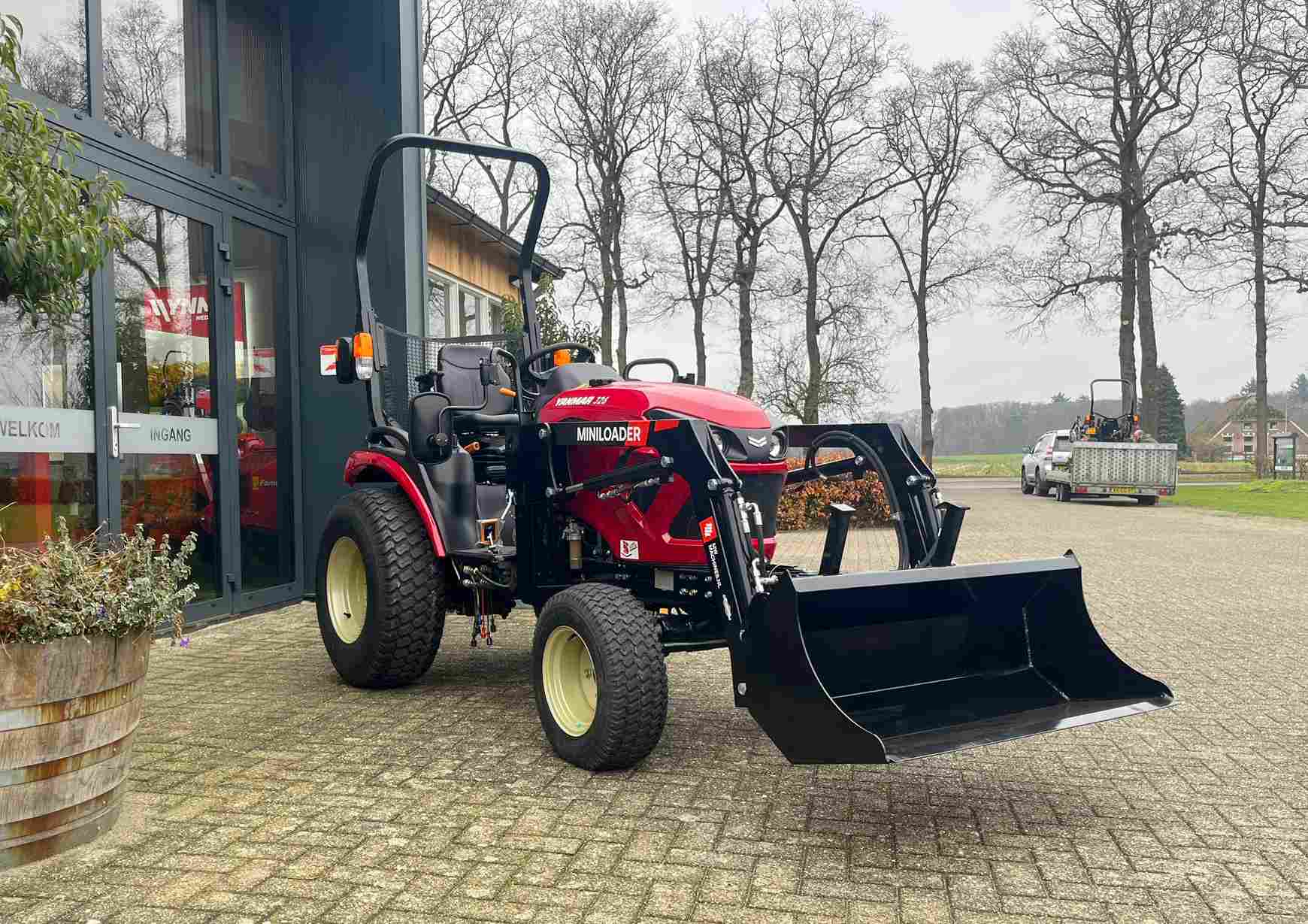

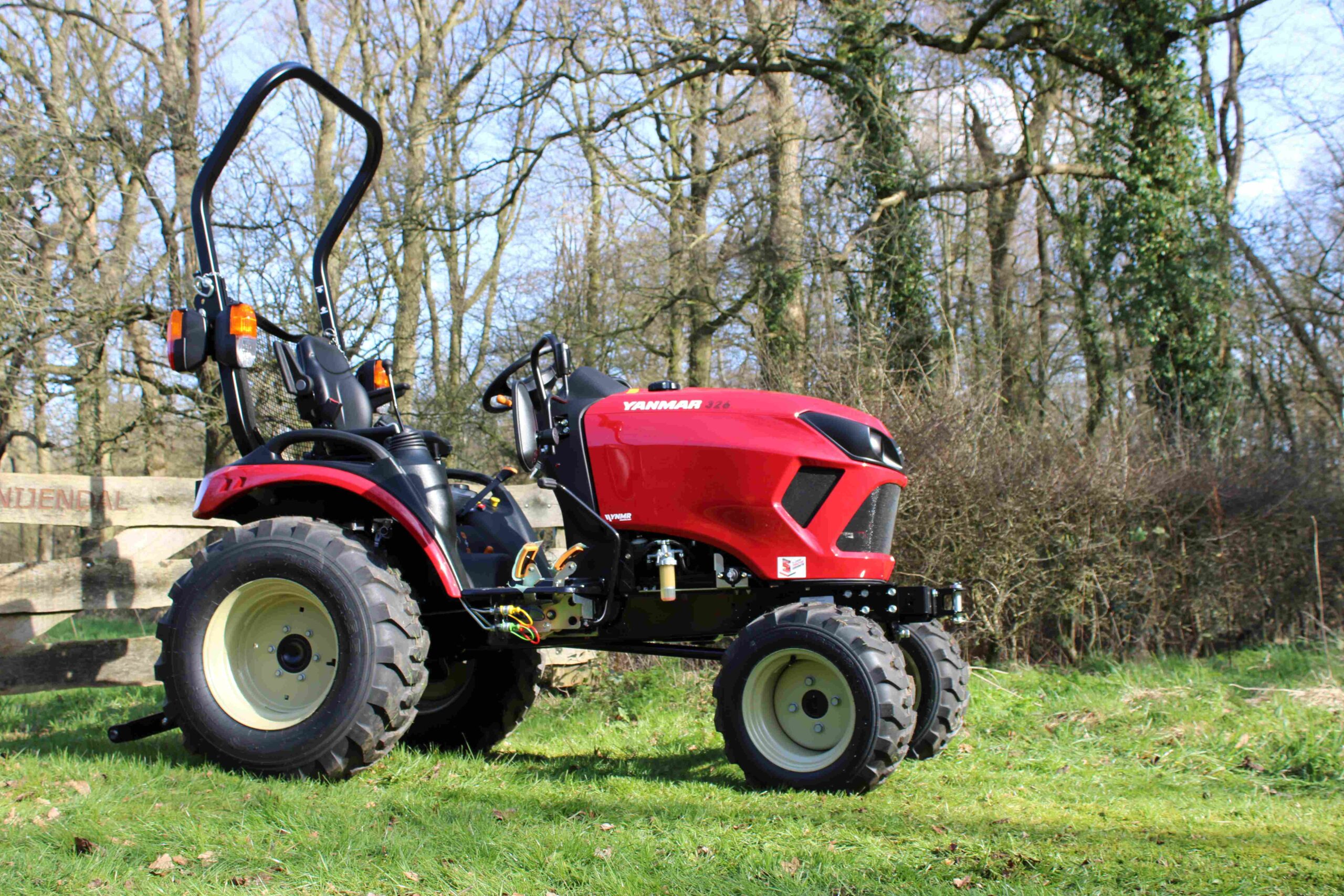

Yanmar SA326

Name: Yanmar SA326
Brand: Yanmar

Yanmar SA326 — SA Series · 23 hp. Reference specifications; pending source verification.

The Yanmar SA326 is a compact tractor model with a power rating of 23 hp, making it a suitable option for smaller-scale operations. Manufactured in 2025, this model features a 3-cylinder diesel liquid-cooled engine, powering a four-wheel drive system with a hydrostatic transmission. The listed weight of the Yanmar SA326 is between 1759 and 2262 pounds, and it is designed for use in areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

1759 to 2262 pounds

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

23 hp

Transmissions

hydrostatic

Production years

2025-2025

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Built in Torbali, TurkeyReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with heat.Reference

Engine

Yanmar 1.1L 3-cyl dieselReference

Engine (gross)17.4 kWReference

Yanmar 3TNV76Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.1 LReference

Bore/Stroke76 x 82 mmReference

Power (gross)17.4 kWReference

Rated RPM3000Reference

Torque65.1 NmReference

StarterelectricReference

Starter volts12Reference

Oil capacity3.4 LReference

Coolant capacity3.3 LReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity15.5 LReference

PTO & Hydraulics

PTO (claimed)14.2 kWReference

Typeopen centerReference

Pressure167.0 barReference

Mid valves2Reference

Pump flow15.1 lpmReference

Steering flow13.2 lpmReference

Rear TypeI (Limited)Reference

Rear lift (at 24"/610mm)547 kgReference

Rear PTOindependentReference

Clutch540:3120Reference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO TypeSAE 16/32Reference

Engine RPM2000@3111Reference

Capacities

Fuel23.1 LReference

Front axle3.0 LReference

ROPS Max capacity1475 kgReference

Cab Max capacity1740 kgReference

Tow capacity699 kgReference

Tow capacity1599 kgReference

Dimensions

Wheelbase160 cmReference

Weight1759 to 2262 poundsReference

Lawn/turf front23x8.50-12Reference

Lawn/turf rear33x12.5-16.5Reference

Industrial front23x8.50-12Reference

Industrial rear12-16.5Reference

Length280 cmReference

Width138 cmReference

Height (ROPS)236 cmReference

Height (cab)212 cmReference

Ground clearance30 cmReference

Front tread96 cmReference

Rear tread107 cmReference

ROPS797 kgReference

Cab1026 kgReference

Max front axle739 kgReference

Max rear axle1000 kgReference

SA326 Serial Numbers

Location:Serial number plate on the front right of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
