Tractor · 2025Unverified

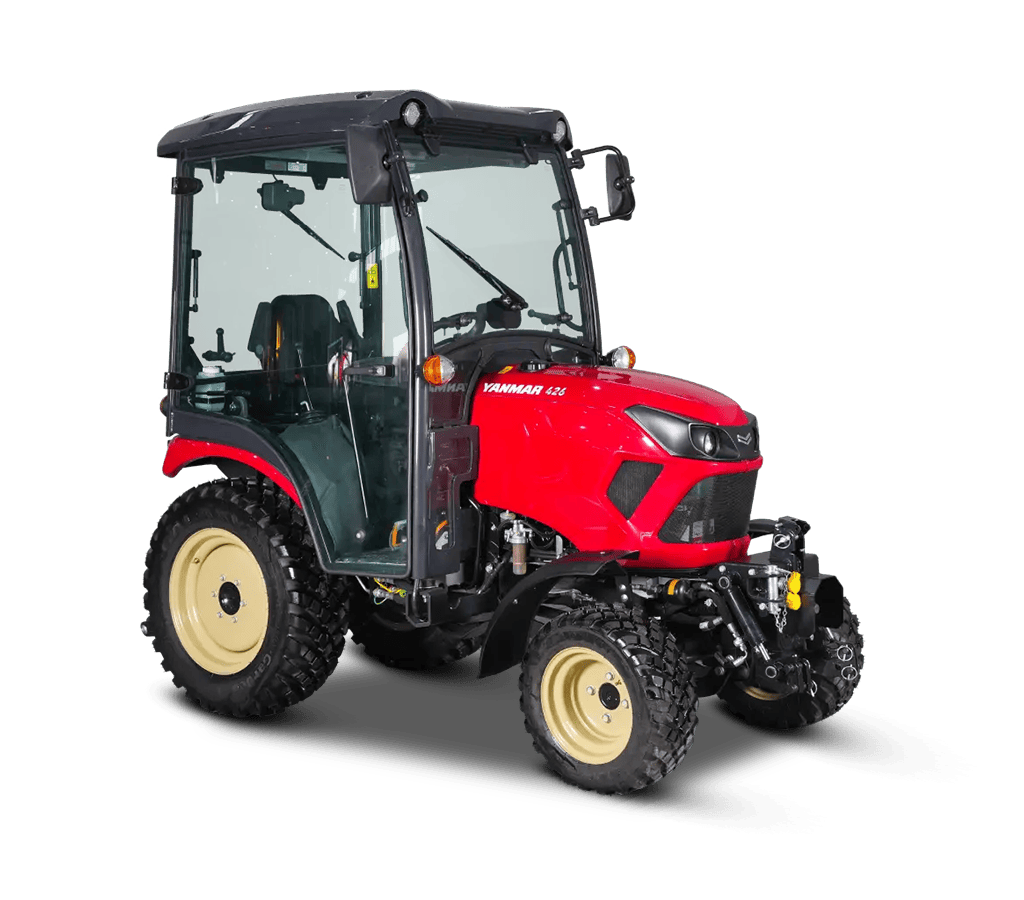

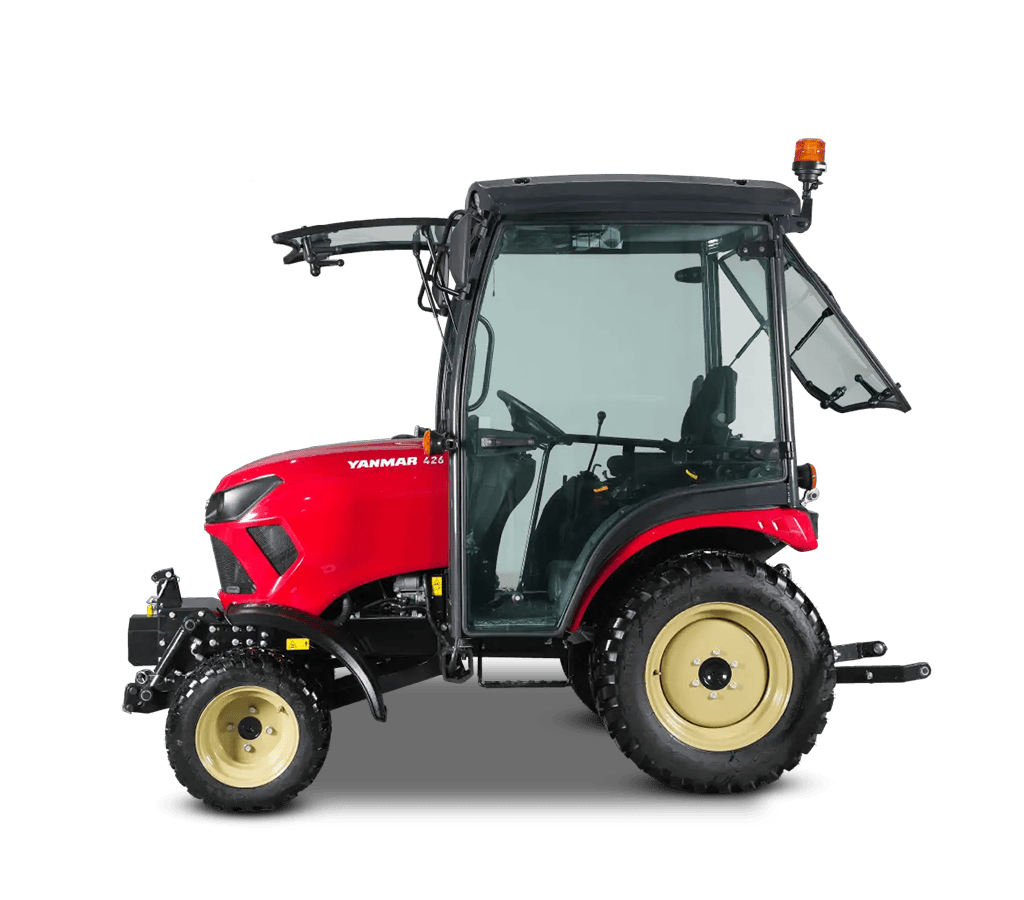

Yanmar SA426

Name: Yanmar SA426
Brand: Yanmar

Yanmar SA426 — SA Series · 23 hp. Reference specifications; pending source verification.

The Yanmar SA426 is a tractor with a rating of approximately 23 hp, positioning it at the lighter end of its class. This model entered production in 2025. The tractor features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. It has an operating weight of 1874 to 2377 pounds and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

1874 to 2377 pounds

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

23 hp

Transmissions

hydrostatic

Production years

2025-2025

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Built in Torbali, TurkeyReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with heat.Reference

Engine

Yanmar 1.1L 3-cyl dieselReference

Engine (gross)17.4 kWReference

Yanmar 3TNV76Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.1 LReference

Bore/Stroke76 x 82 mmReference

Power (gross)17.4 kWReference

Rated RPM3000Reference

Torque65.1 NmReference

StarterelectricReference

Starter volts12Reference

Oil capacity3.4 LReference

Coolant capacity3.3 LReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity15.5 LReference

PTO & Hydraulics

PTO (claimed)14.2 kWReference

Typeopen centerReference

Pressure167.0 barReference

Mid valves2Reference

Pump flow15.1 lpmReference

Steering flow13.2 lpmReference

Rear TypeI (Limited)Reference

Rear lift (at 24"/610mm)547 kgReference

Rear PTOindependentReference

Clutch540:3120Reference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO TypeSAE 16/32Reference

Engine RPM2000@3111Reference

Capacities

Fuel23.1 LReference

Front axle3.0 LReference

ROPS Max capacity1475 kgReference

Cab Max capacity1740 kgReference

Tow capacity699 kgReference

Tow capacity1599 kgReference

Dimensions

Wheelbase160 cmReference

Weight1874 to 2377 poundsReference

Lawn/turf front23x8.50-12Reference

Lawn/turf rear36x13.50-15Reference

Lawn/turf front220/55R12Reference

Lawn/turf rear280/70R18Reference

Industrial front23x8.50-12Reference

Industrial rear14-17.5Reference

Length280 cmReference

Width143 cmReference

Height (ROPS)239 cmReference

Height (cab)216 cmReference

Ground clearance30 cmReference

Front tread96 cmReference

Rear tread107 cmReference

ROPS850 kgReference

Cab1078 kgReference

Max front axle739 kgReference

Max rear axle1000 kgReference

SA426 Serial Numbers

Location:Serial number plate on the front right of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
