Tractor · 2012Unverified

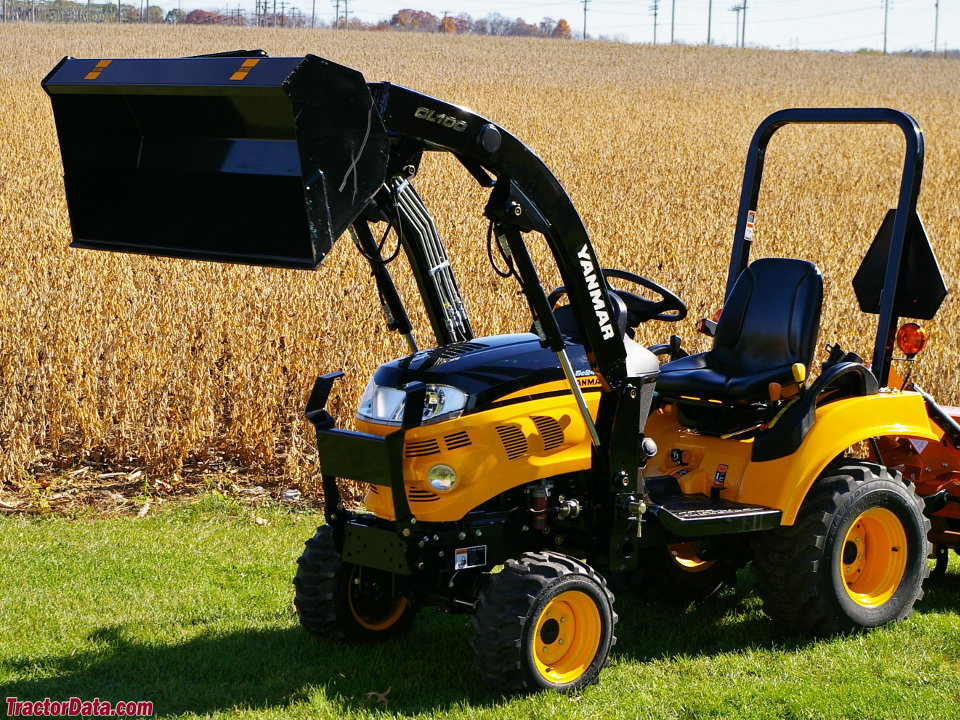

Yanmar Sc2400
Yanmar Sc2400 — Sub-Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
580 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
ROPS standard. Optional steel cab.Reference
Variants
Sc2400compact tractorReference
Sc2450compact backhoeReference
Engine
Yanmar 0.9L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine (gross)17.9 kWReference
Engine (net)15.2 kWReference
Yanmar 3TNV72Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 74 mmReference
Power (net)15.2 kWReference
Power (gross)17.9 kWReference
Fuel systemindirect injectionReference
Air cleaner4-inch dry elementReference
Rated RPM3300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.4 LReference
Coolant capacity3.2 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity7.6 LReference
Two-range Shift-On-The-Go hydrostatic transmission operated with foot pedals. Cruise control standard.Reference
PTO & Hydraulics
PTO (claimed)12.3 kWReference
Typeopen centerReference
Pump flow13.2 lpmReference
Total flow26.1 lpmReference
Steering flow12.9 lpmReference
Rear Type1 (limited)Reference
Controlposition controlReference
Rear lift (at 24"/610mm)299 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@3111Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Engine RPM2100@3338Reference
Dimensions
Wheelbase139 cmReference
Weight580 kgReference
Front tire18x8.5-10Reference
Rear tire26x12.0-12Reference
Ag front18x8.5-10Reference
Ag rear26x12.0-12Reference
Length242 cmReference
Width113 cmReference
Operating weight580 kgReference
Ground clearance19 cmReference
Yanmar Sc2400 attachments
60" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
60" Mower deck
Typemid-mount Yanmar MM60RSeReference
Type3-bladeReference
Cutting width152 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
