Backhoe Loader · 2009Unverified
Yanmar Sc2450

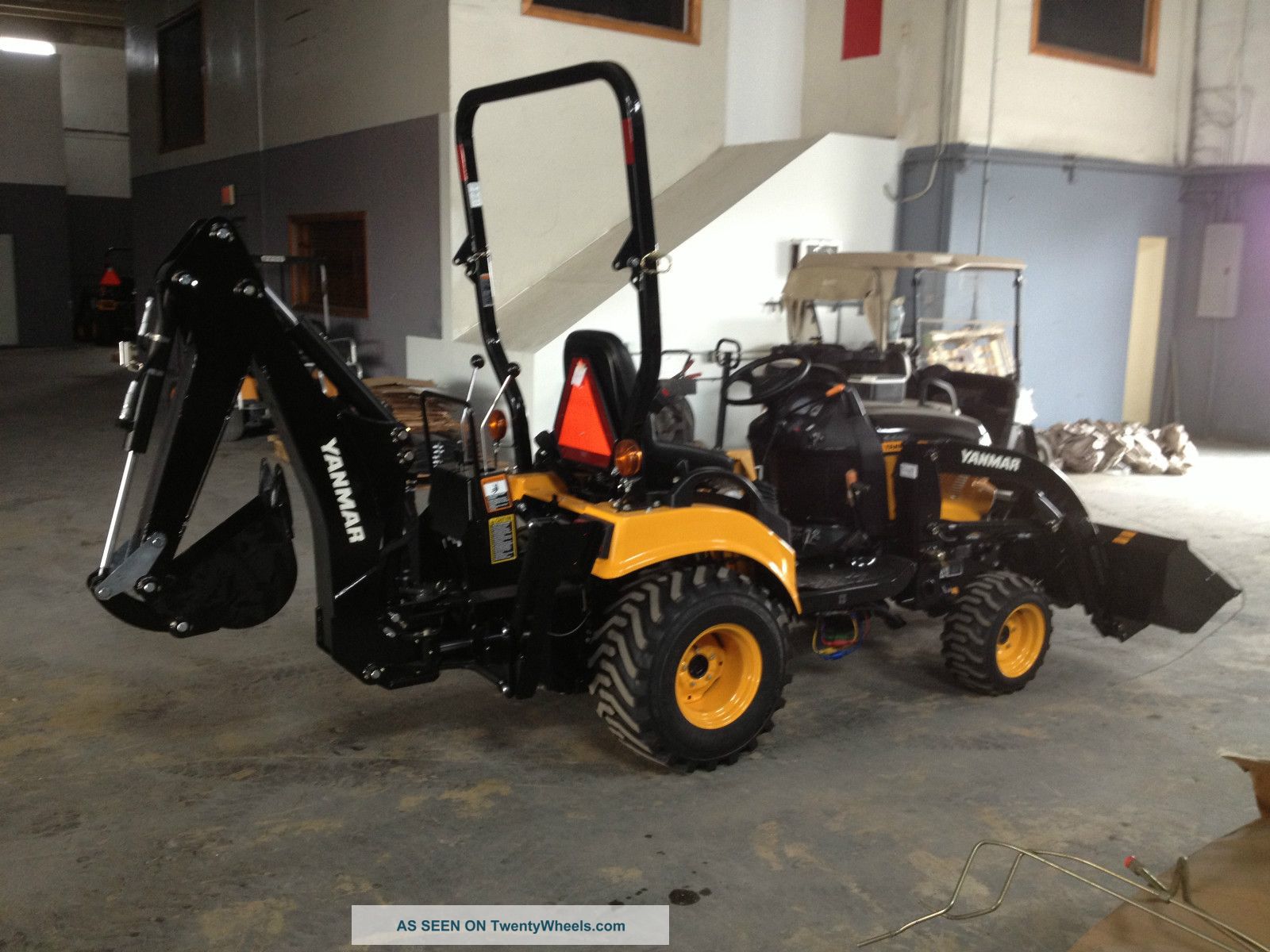

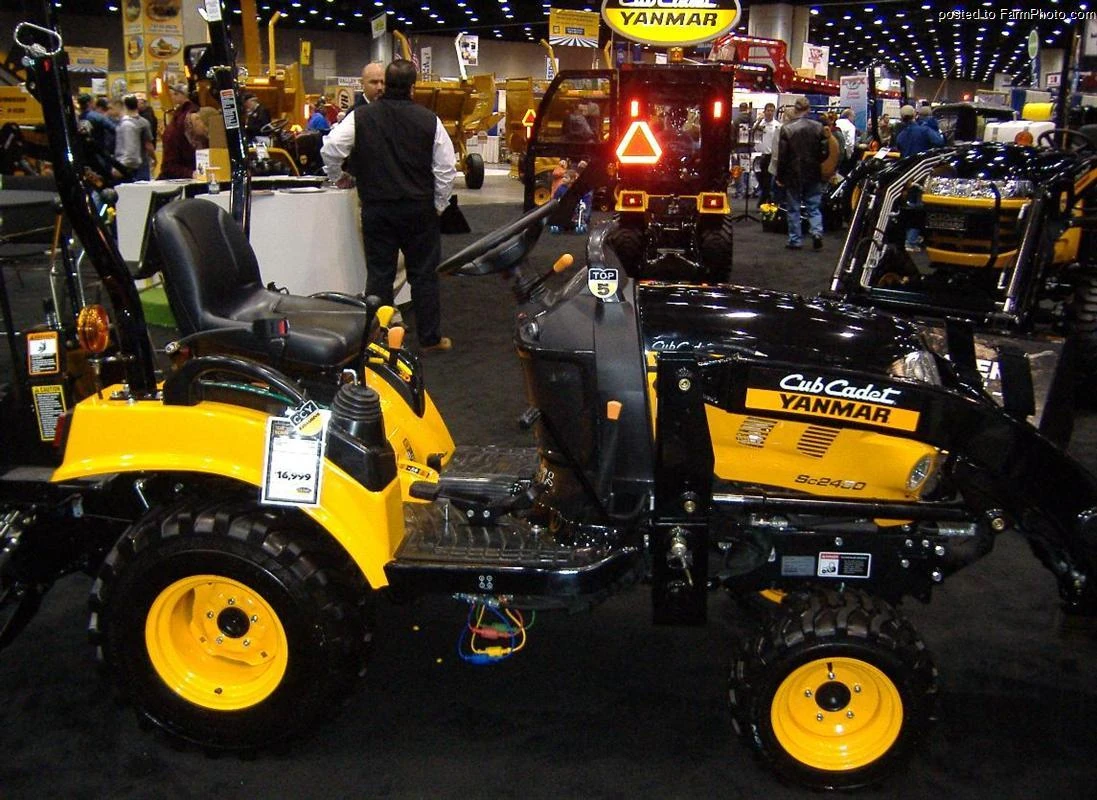

Yanmar Sc2450 — Backhoe loader tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1145 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Backhoe loader tractorReference
Four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
Variants
Sc2400compact tractorReference
Sc2450compact backhoeReference
Engine
Yanmar 0.9L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine (gross)17.9 kWReference
YanmarReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 74 mmReference
Power (gross)17.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Rated RPM3200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.4 LReference
Coolant capacity3.2 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity7.6 LReference
Foot-pedal controlled hydrostatic transmission with cruise control two Shift-On-The-Go ranges.Reference
PTO & Hydraulics
PTO (claimed)12.3 kWReference
Typeopen centerReference
Pump flow13.2 lpmReference
Pump flow12.9 lpmReference
Total flow26.1 lpmReference
Rear Type1 (limited)Reference
Controlposition controlReference
Rear lift (at 24"/610mm)299 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@31111Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Engine RPM2100@3338Reference
Dimensions
Wheelbase139 cmReference
Weight1145 kgReference
Front tire18x8.5-10Reference
Rear tire26x12.0-12Reference
Weight281 kgReference
Industrial front18x8.5-10Reference
Industrial rear26x12.0-12Reference
Length438 cmReference
Width113 cmReference
Operating weight1145 kgReference
Ground clearance19 cmReference
Backhoe & Loader
Dig depth194 cmReference
Dump angle114 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Yanmar Backhoe
Backhoe typeYanmar BackhoeReference
Bucket width20 cmReference
Bucket width30 cmReference
Digging depth194 cmReference
2-Foot flat digging depth189 cmReference
Reach from pivot264 cmReference
Loading height152 cmReference
Bucket Rotation180°Reference
Swing Arc150°Reference
Bucket force923 kgReference
Dipperstick force538 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
