Tractor · 2012Unverified

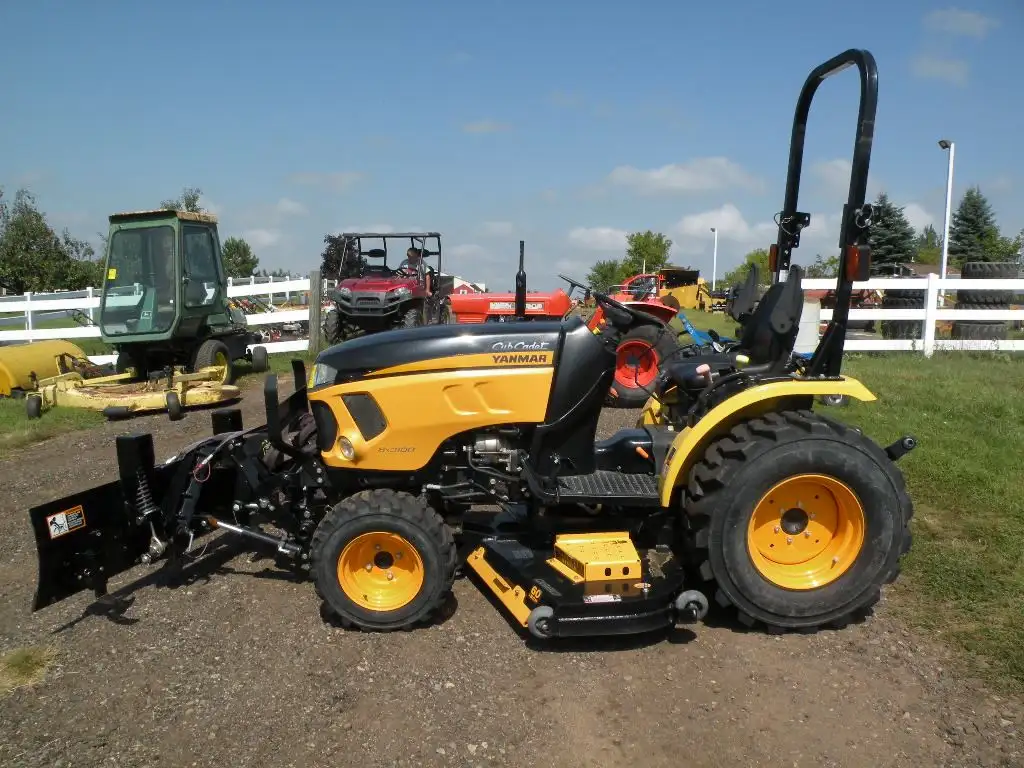

Yanmar Sx3100

Name: Yanmar Sx3100
Brand: Yanmar

Yanmar Sx3100 — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.

The Yanmar Sx3100 is a compact tractor rated at 31 horsepower, making it a suitable option for various tasks. Manufactured in 2012, it features a 3-cylinder diesel liquid-cooled engine powering four-wheel drive via a hydrostatic transmission. The tractor's listed weight is 920 kilograms, suitable for tasks on around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Max power

31.2 hp

Weight

920 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

31 hp

Recorded weight

920 kg

Transmissions

hydrostatic

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Final drivesbevel gearReference

Steeringhydraulic powerReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Yanmar 1.6L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine (gross)23.3 kWReference

Engine (net)22.4 kWReference

YanmarReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke88 x 90 mmReference

Power (net)22.4 kWReference

Power (gross)23.3 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dryReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity3.4 LReference

Coolant capacity2.0 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,500 RPMReference

Bore and stroke3.465x3.543 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity17.4 LReference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : infinite (2-range) F and infinite (2-range) RReference

Wheel Drive4WDReference

Rear Axle Drive Typebevel gearReference

PTO & Hydraulics

PTO (claimed)17.5 kWReference

Typeopen centerReference

Pump flow18.2 lpmReference

Total flow38.2 lpmReference

Steering flow20.1 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift (at 24"/610mm)548 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@2495Reference

Mid PTOindependentReference

Mid PTO Type2100Reference

Engine RPM2100@2500Reference

Dimensions

Wheelbase165 cmReference

Weight920 kgReference

Weight439 kgReference

Lawn/turf front24x8.5-14Reference

Lawn/turf rear36x14-15Reference

Industrial front23x8.5-12Reference

Industrial rear14-17.5Reference

Length276 cmReference

Width131 cmReference

Ground clearance26 cmReference

Yanmar Sx3100 attachments

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Attachment overview

60" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

60" Mower deck

Typemid-mount Cub Cadet Yanmar DS60Reference

Type3-bladeReference

Cutting width152 cmReference

Cut height2 to 13 cmReference

Yanmar CB65 Backhoe

Backhoe typeYanmar CB65 BackhoeReference

Digging depth208 cmReference

2-Foot flat digging depth203 cmReference

Reach from pivot279 cmReference

Loading height162 cmReference

Swing Arc180°Reference

Bucket force1103 kgReference

Dipperstick force624 kgReference

General

Make & ModelYanmarReference

Cruise controlAvailableReference

Rollover protective structureTwo-post ROPS.Reference

Capacities

Capacity100.2 ciReference

Crankcase oil volume3.6 qtsReference

Power

Max Power31.2 hpReference

Rated Power30 hpReference

PTO

PTO Power23.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,100 RPMReference

Engine Speed on Mid PTO speed2,100@2,500 RPMReference

Engine Speed on Rear PTO speed540@2,495 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydraulic powerReference

Hydraulics

Pump Rated Output (total)10.1 gpmReference

Hydraulics Typeopen centerReference

Steering & Implements flow5.3 gpm (4.8 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Length276.9 cmReference

Overall Width131.1 cmReference

Overall weight920.8 kgReference

Wheels & tyres

Rear Wheel TypeLawn/turf rear:\\t36x14-15 | Industrial rear:14-17.5Reference

Front Wheel TypeLawn/turf front:24x8.5-14 | Industrial front:23x8.5-12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
