Tractor · 1977Unverified

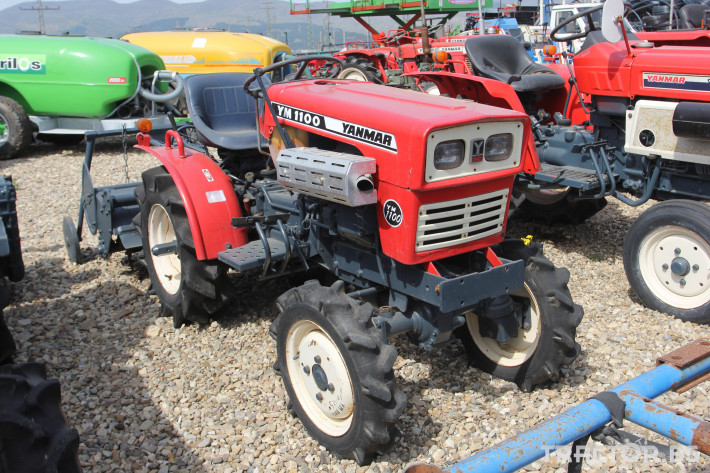

Yanmar YM1100
Yanmar YM1100 — Compact Utility tractor · 11 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
11 hp
Weight
992 to 1091 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM11002WDReference
YM1100D4WDReference
Engine
Yanmar 0.6L 2-cyl dieselReference
Engine8.1 kWReference
Yanmar 2T73Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.6 LReference
Power8.1 kWReference
Pre-heatingglow plugsReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
6-speedReference
TransmissiongearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Weight992 to 1091 poundsReference
Front tire4.50-12Reference
2WD Rear tire7-14Reference
2WD Standard tires (ag)Front: 4.50-12. Rear: 7-14Reference
4WD Standard tires (ag)Front: 4.00-12. Rear: 7-14Reference
Length193 cmReference
Width89 cmReference
Height114 cmReference
2WD Weight449 kgReference
4WD Weight494 kgReference
Ground clearance24 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
