Tractor · 1976Unverified

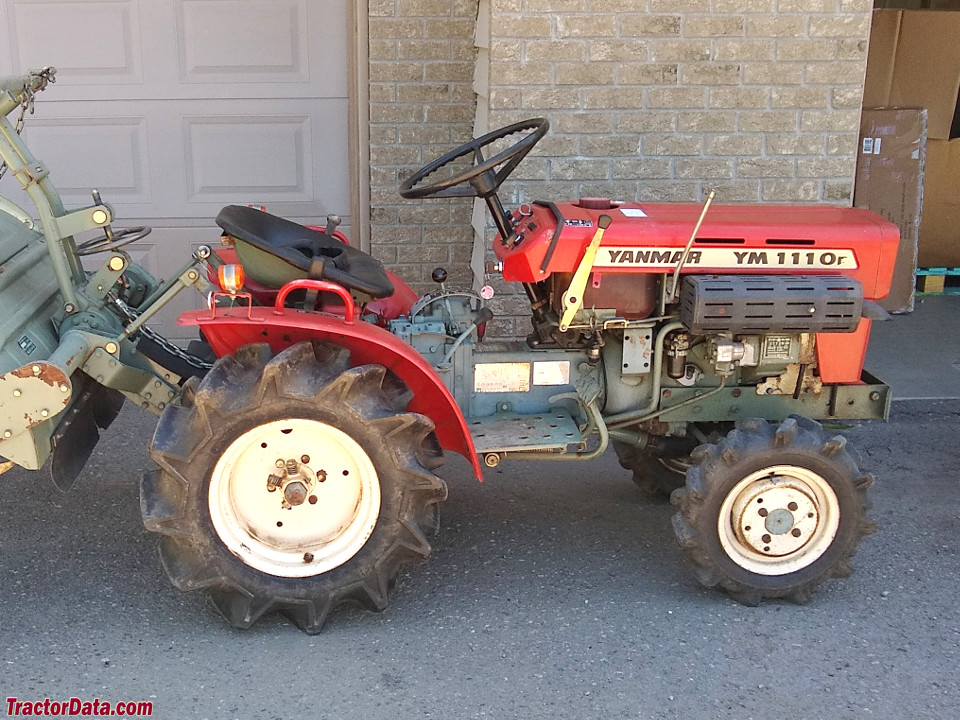

Yanmar YM1110

Name: Yanmar YM1110
Brand: Yanmar

Yanmar YM1110 — Compact Utility tractor · 11 hp. Reference specifications; pending source verification.

The Yanmar YM1110 is a compact tractor model with a rated output of 11 hp. Manufactured from 1976 to 1983, it features a 2-cylinder diesel liquid-cooled engine powering a 4-wheel drive system via a 6-speed gearbox. The listed weight of the tractor ranges from 992 to 1091 pounds. It is designed for use on small areas, typically up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

11 hp

Weight

992 to 1091 pounds

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

11 hp

Recorded weight

449 kg

Transmissions

6-speed

Production years

1976-1983

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

YM11102WDReference

YM1110D4WDReference

Engine

Yanmar 0.6L 2-cyl dieselReference

Engine8.2 kWReference

YanmarReference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement0.6 LReference

Power8.2 kWReference

Pre-heatingglow plugsReference

Rated RPM2700Reference

Starter volts12Reference

Transmission

6-speedReference

TransmissiongearReference

Gears6 forward and 2 reverseReference

Dimensions

Weight992 to 1091 poundsReference

Front tire4.50x10Reference

2WD Rear tire7x16Reference

2WD Standard tires (ag)Front: 4.50x10. Rear: 7x16Reference

4WD Standard tires (ag)Front: 5x12. Rear: 7x16Reference

Length182 cmReference

Width89 cmReference

Height114 cmReference

2WD Weight449 kgReference

4WD Weight494 kgReference

Ground clearance24 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
