Tractor · 1975Unverified

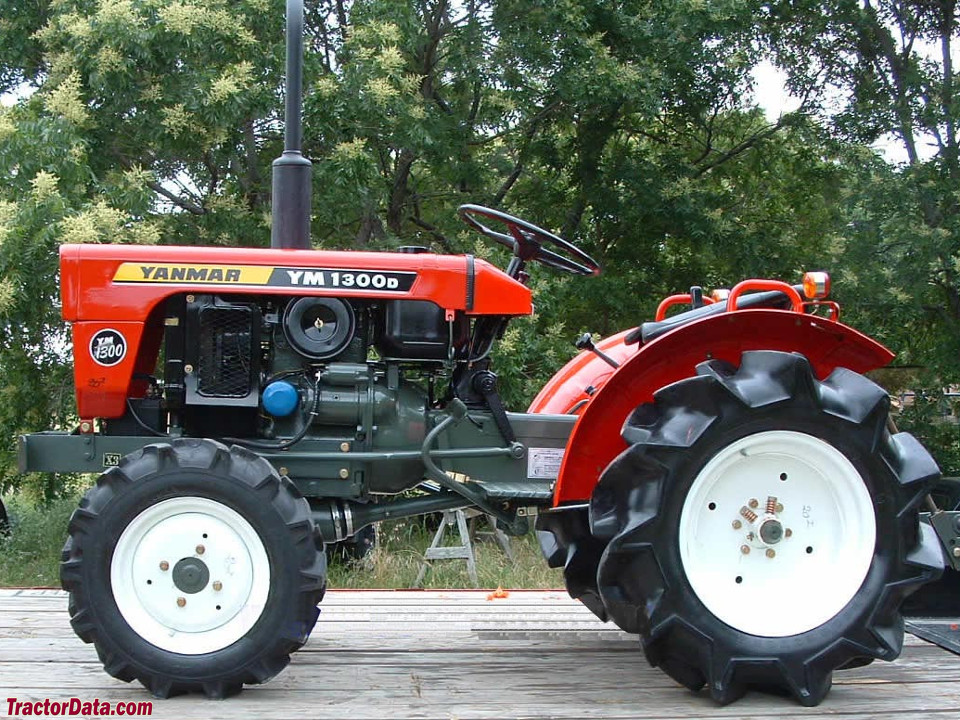

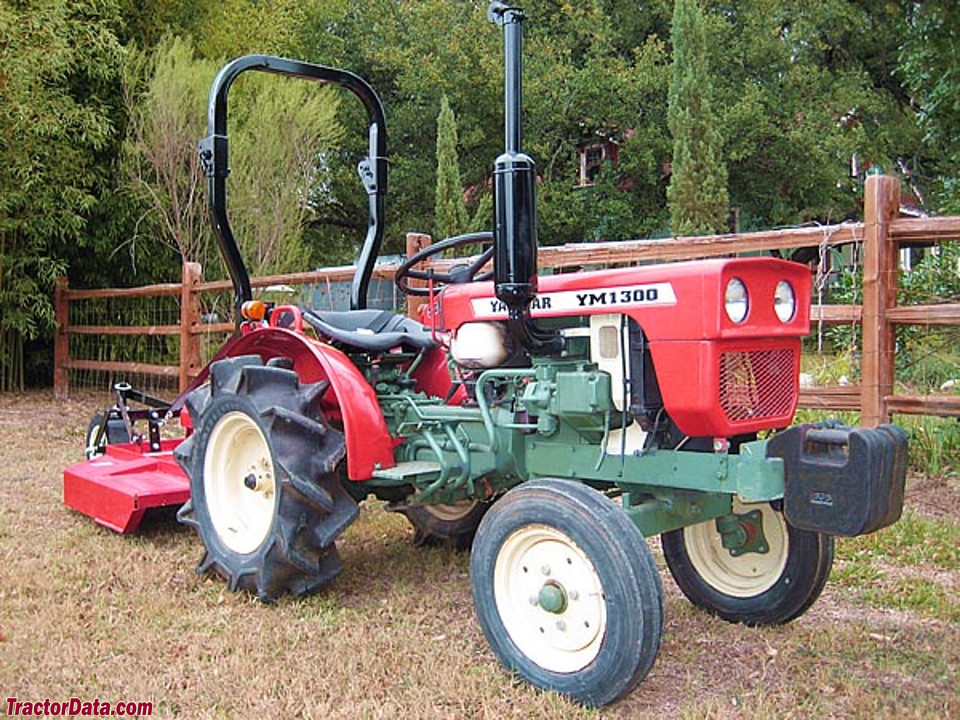

Yanmar YM1300
Yanmar YM1300 — Compact Utility tractor · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
544 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM13002WDReference
YM1300D4WDReference
Engine
Yanmar 0.7L 2-cyl dieselReference
Engine9.7 kWReference
Yanmar 2TR13Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Power9.7 kWReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Dimensions
Weight544 kgReference
Length205 cmReference
Width96 cmReference
Height165 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
