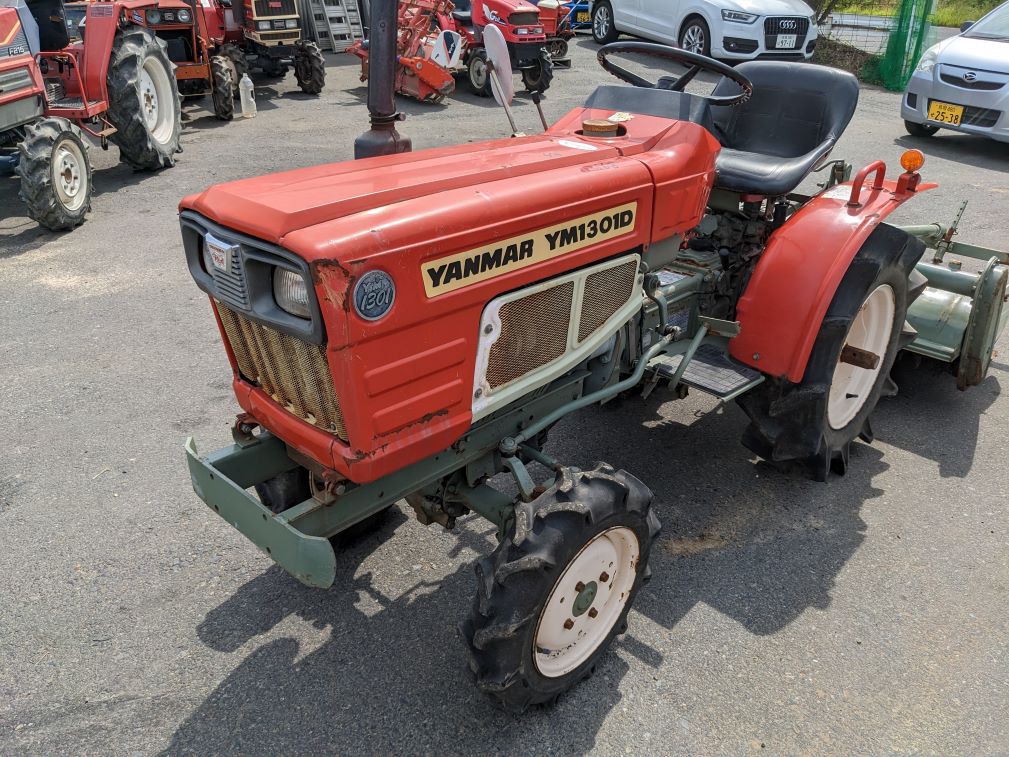

The Yanmar YM1301 is a tractor with a rated power output of 13 hp, positioning it within the lighter end of its class. Initially produced from 1981 to 1983, it features a 3-cylinder diesel liquid-cooled engine and four-wheel drive. The operating weight of this tractor is listed as 1124 to 1190 pounds. It is suited for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
1124 to 1190 pounds
Catalogue coverage
Variants represented
2
Richest spec table
24 rows
Recorded power
13 hp
Recorded weight
509 kg
Transmissions
gear
Production years
1981-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Sub-Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM13012WDReference
YM1301D4WDReference
Engine
Yanmar 3-cyl dieselReference
Engine9.7 kWReference
Yanmar 3T70BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Power9.7 kWReference
Starter volts12Reference
Transmission
gearReference
TypegearReference
Dimensions
Weight1124 to 1190 poundsReference
Length215 cmReference
Width96 cmReference
Height172 cmReference
2WD Weight509 kgReference
4WD Weight539 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
